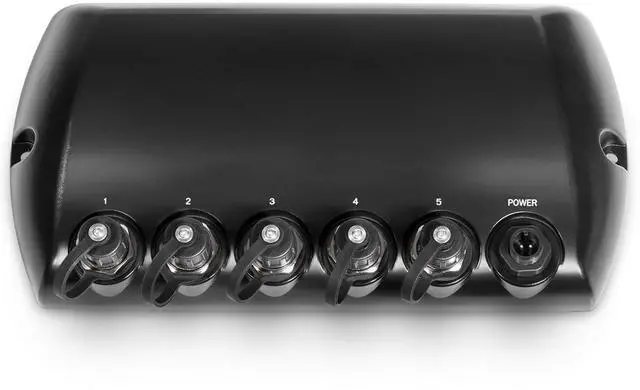

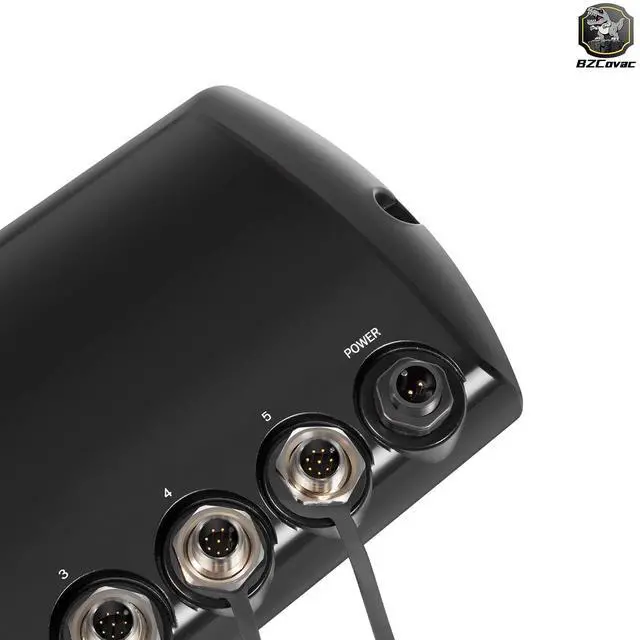

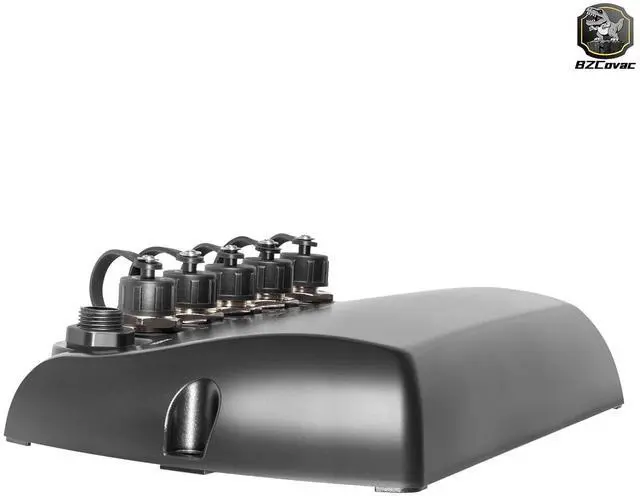

408450-1 AS ETH 5PXG 5-Port Ethernet Switch for Humminbird Helix, APEX, SOLIX, XPLORE Fish Finders - Marine Network Hub for Sharing Sonar, MEGA Live, TargetLock & NMEA 2000 Devices

Compatible with HELIX - Requires an AS EC QDE adapter cable and an Ethernet cable for all HELIX 8, 9, 10, 12, and 15 models, as well as select HELIX 7 products: HELIX 7 CHIRP GPS G4N, HELIX 7 CHIRP MDI GPS G4N, HELIX 7 CHIRP MSI GPS G4N, HELIX 7 CHIRP GPS G3N, HELIX 7 CHIRP MDI GPS G3N, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP GPS G2N, HELIX 7 CHIRP DI GPS G2N, and HELIX 7 CHIRP SI GPS G2N
Compatible with 700-1100 Series - Requires an AS EC QDE adapter cable and an Ethernet cable for the following models: 778c HD, 788ci HD, 788ci HD DI, 798ci HD SI, 859ci HD, 859ci HD DI, 899ci HD SI, 959ci HD, 959ci HD DI, 999ci HD SI, 1159ci HD, 1159ci HD DI, and 1199ci HD SI
Compatible with No Adapter - Connects directly using an Ethernet cable (no adapter required) for all APEX, SOLIX, XPLORE, ONIX, and ION models, as well as the following: 858c, 858c HD, 858c DI, 858c HD DI, 898c SI, 898c HD SI, 958c, 958c HD, 958c DI, 958c HD DI, 998c SI, 998c HD SI, 1157c, 1158c, 1158c DI, 1197c SI, and 1198c SI
Flexible Networking for Your Marine Systems - Connect multiple Humminbird head units, share transducers, integrate an NMEA 2000 network, or add compatible Humminbird radar. With so many configuration options available, you can easily expand and customize your boats electronics setup
Network Limits and Configuration - A single network can include up to three AS ETH 5PXG switches connected in a daisy chain. Each network supports a maximum of four Humminbird fish finders. Multiple Ethernet accessories can be added, provided there are no duplicate devices on the same network. Up to three sonar modules (SM1000, SM2000, and/or SM3000) can operate simultaneously. Looping or multi-path connections are not supported with these switches
