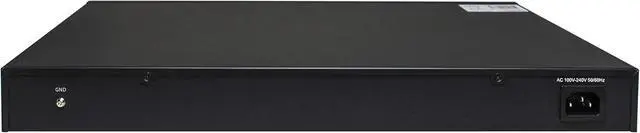

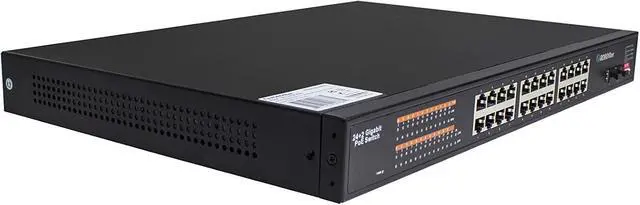

GES-2402A-PSE Gigabit Ethernet 24+2 Gigabit Ports high Power POE Switch (350W Budget)

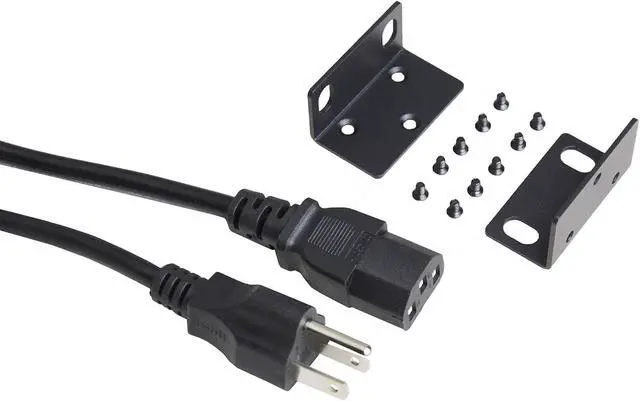

- 24-port 10/100/1000Base-T RJ45 + 2 uplink 1000Base-X SFP slots, 1RU 19" rack mountable with brackets, 350W of PoE budget, 802.3at/af compatible (supporting PoE+ on each TP port)
- Back-plane (Switching Fabric): 56 Gbps, Supports 9K Bytes jumbo frame, Packet buffer: 2M bits, 8K MAC table size, Smart Unmanaged design (settings via DIP switches), special PoE port reset function when no traffic detected and port VLAN and QoS activation via simple DIP settings
- Switching fabric capacity:56Gbps, forwarding rate: 10M (14 880/14 880 pps), 100M (148800/148800pps), 1000M (1488000/1488000pps), transmission method: Store and Forward Switching
- VLAN, QoS, Extended mode, PoE reset modes available via DIP sw, Supports 2kV surge protection on all ports, 250m copper TP reach for 10M speeds
- Power input: 100 ~ 240VAC, Operating Temperature: 0 ~ 50°C, Humidity: 5% ~ 90% (non-condensing), Dimensions: 440 x 395 x 43.8 mm, Certification: FCC, CE, RoHS compliant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
24-port 10/100/1000Base-T RJ45 + 2 uplink 1000Base-X SFP slots, 1RU 19" rack mountable with brackets, 350W of PoE budget, 802.3at/af compatible (supporting PoE+ on each TP port)
Back-plane (Switching Fabric): 56 Gbps, Supports 9K Bytes jumbo frame, Packet buffer: 2M bits, 8K MAC table size, Smart Unmanaged design (settings via DIP switches), special PoE port reset function when no traffic detected and port VLAN and QoS activation via simple DIP settings
Switching fabric capacity:56Gbps, forwarding rate: 10M (14 880/14 880 pps), 100M (148800/148800pps), 1000M (1488000/1488000pps), transmission method: Store and Forward Switching
VLAN, QoS, Extended mode, PoE reset modes available via DIP sw, Supports 2kV surge protection on all ports, 250m copper TP reach for 10M speeds
Power input: 100 ~ 240VAC, Operating Temperature: 0 ~ 50°C, Humidity: 5% ~ 90% (non-condensing), Dimensions: 440 x 395 x 43.8 mm, Certification: FCC, CE, RoHS compliant
Back-plane (Switching Fabric): 56 Gbps, Supports 9K Bytes jumbo frame, Packet buffer: 2M bits, 8K MAC table size, Smart Unmanaged design (settings via DIP switches), special PoE port reset function when no traffic detected and port VLAN and QoS activation via simple DIP settings
Switching fabric capacity:56Gbps, forwarding rate: 10M (14 880/14 880 pps), 100M (148800/148800pps), 1000M (1488000/1488000pps), transmission method: Store and Forward Switching
VLAN, QoS, Extended mode, PoE reset modes available via DIP sw, Supports 2kV surge protection on all ports, 250m copper TP reach for 10M speeds
Power input: 100 ~ 240VAC, Operating Temperature: 0 ~ 50°C, Humidity: 5% ~ 90% (non-condensing), Dimensions: 440 x 395 x 43.8 mm, Certification: FCC, CE, RoHS compliant
