Industrial 24 Ports L2 Managed Gigabit PoE Fiber Switch with 4 1000Base-X SFP Slots Layer 2+ Web Management Din Rail Network Switch 802.3at 30W Support QOS, VLAN, Ring Network, IGMP 48-57V DC Input
- Extensive Port Configuration: Features 24 10/100/1000Base-T ports and 4 1000Base-X SFP ports, supporting full-duplex and half-duplex modes with auto-negotiation and auto MDI/MDIX functionality.
- Advanced PoE Capabilities: Compliant with IEEE802.3af/at standards, equipped with a DIP switch for one-key anti-ring, PoE reset, and 250m PoE network support, providing flexible power management solutions.
- User-Friendly Management: Offers a USB-C port for straightforward management, eliminating the need for RS232 serial port access, which streamlines operational efficiency.
- Durable and Efficient Design: Supports 10K bytes jumbo frames and IEEE 802.3az Energy Efficient Ethernet (EEE) for optimized data transmission and energy conservation, housed in a robust IP40 aluminum case.
- Wide Operating Temperature Range: Operates reliably in extreme temperatures from -40°C to 80°C (-40°F to 176°F), making it suitable for diverse and demanding industrial environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
This Ethernet Switch is a Layer 2+ managed device featuring 24 ports for 10/100/1000Base-T with 802.3at PoE support, alongside 4 1000Base-X SFP fiber ports. The switch comprises 24 twisted pair (TP) ports and 4 fiber ports. The TP (RJ45) interfaces support 10/100/1000Base-T(X), accommodating both full-duplex and half-duplex modes, as well as automatic MDI/MDI-X configuration. Meanwhile, the 1000Base-X SFP ports are compatible with both single-mode and multi-mode fiber, supporting one or two cores.
Features
10/100/1000Mbps RJ45 Port (IEEE802.3af/at compliant) supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

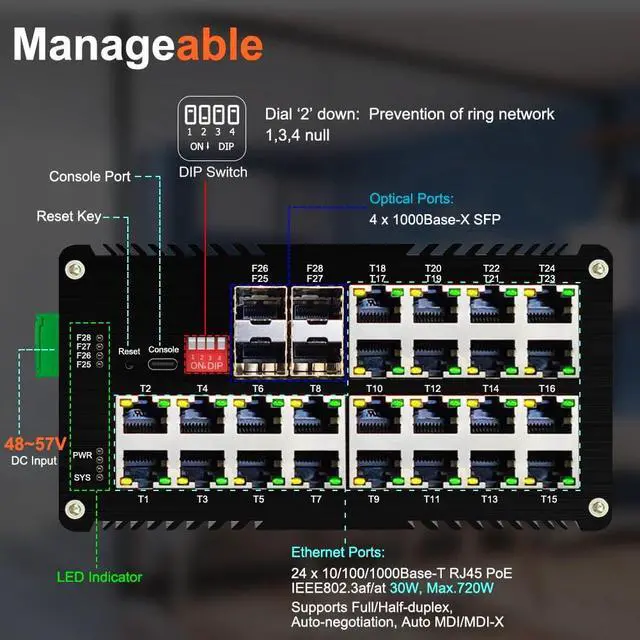

DIP Switch supports Preventing Ring Network Management
Support connecting USB-C port for easy console management, without the need to access the RS232 serial port at all
10K Bytes Jumbo Frame; IEEE 802.3az Energy Efficient Ethernet (EEE)

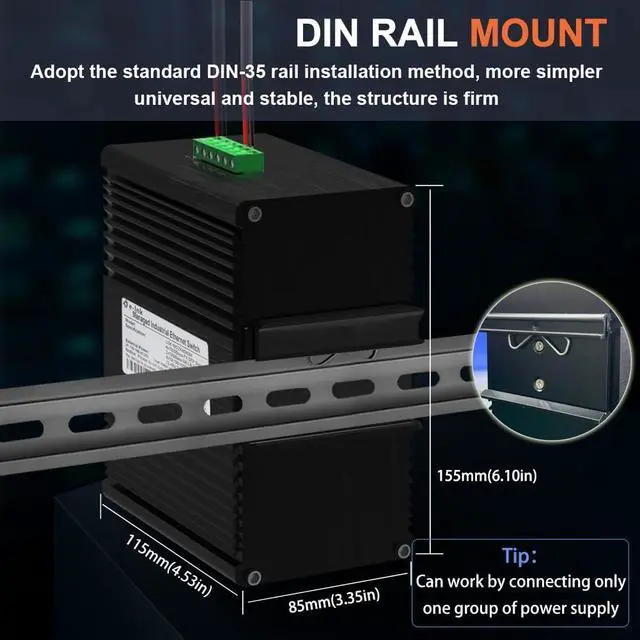

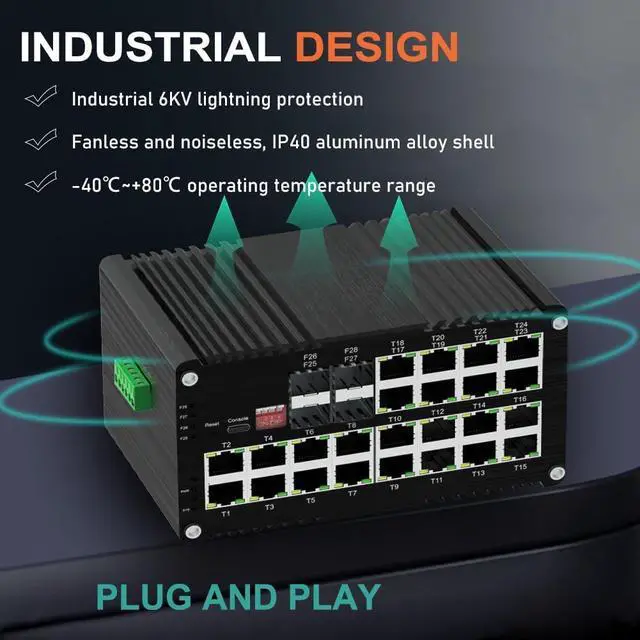

IP40 Aluminum Case and Supports DIN-Rail installation; -40°C to 80°C (-40°F to 176°F) operating temperature
Ethernet Standards:
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX/FX; IEEE802.3ab 1000BASE-T; IEEE802.3z 1000BASE-X; IEEE802.3p QoS; IEEE802.1d Spanning Tree.
PoE Standard:
IEEE 802.3at Power over Ethernet Plus; IEEE 802.3af Power over Ethernet
Software Features
QOS:Flow-based redirection; Flow-based rate limiting; Flow-based packet filtering; 8*Output queues of each port; 802.1p/DSCP priority mapping; Diff-Serv QoS, Priority Mark/Remark; Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL:Port-based Issuing ACL; ACL based on port and VLAN; L2 to L4 packet filtering, matching first 80 bytes message; Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
This Ethernet Switch is a Layer 2+ managed device featuring 24 ports for 10/100/1000Base-T with 802.3at PoE support, alongside 4 1000Base-X SFP fiber ports. The switch comprises 24 twisted pair (TP) ports and 4 fiber ports. The TP (RJ45) interfaces support 10/100/1000Base-T(X), accommodating both full-duplex and half-duplex modes, as well as automatic MDI/MDI-X configuration. Meanwhile, the 1000Base-X SFP ports are compatible with both single-mode and multi-mode fiber, supporting one or two cores.
Features
10/100/1000Mbps RJ45 Port (IEEE802.3af/at compliant) supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
DIP Switch supports Preventing Ring Network Management
Support connecting USB-C port for easy console management, without the need to access the RS232 serial port at all
10K Bytes Jumbo Frame; IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case and Supports DIN-Rail installation; -40°C to 80°C (-40°F to 176°F) operating temperature
Ethernet Standards:
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX/FX; IEEE802.3ab 1000BASE-T; IEEE802.3z 1000BASE-X; IEEE802.3p QoS; IEEE802.1d Spanning Tree.
PoE Standard:
IEEE 802.3at Power over Ethernet Plus; IEEE 802.3af Power over Ethernet
Software Features
QOS:Flow-based redirection; Flow-based rate limiting; Flow-based packet filtering; 8*Output queues of each port; 802.1p/DSCP priority mapping; Diff-Serv QoS, Priority Mark/Remark; Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL:Port-based Issuing ACL; ACL based on port and VLAN; L2 to L4 packet filtering, matching first 80 bytes message; Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
