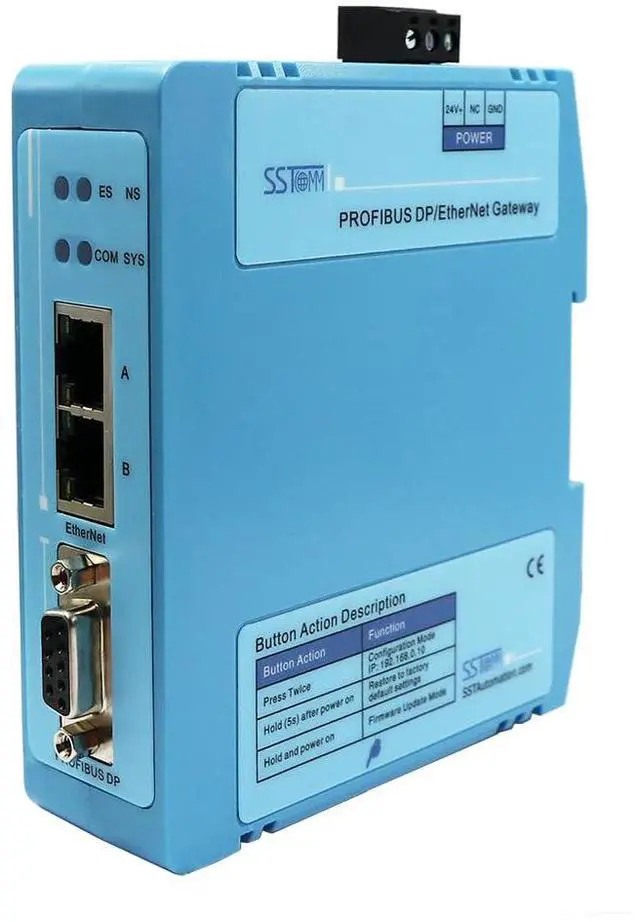

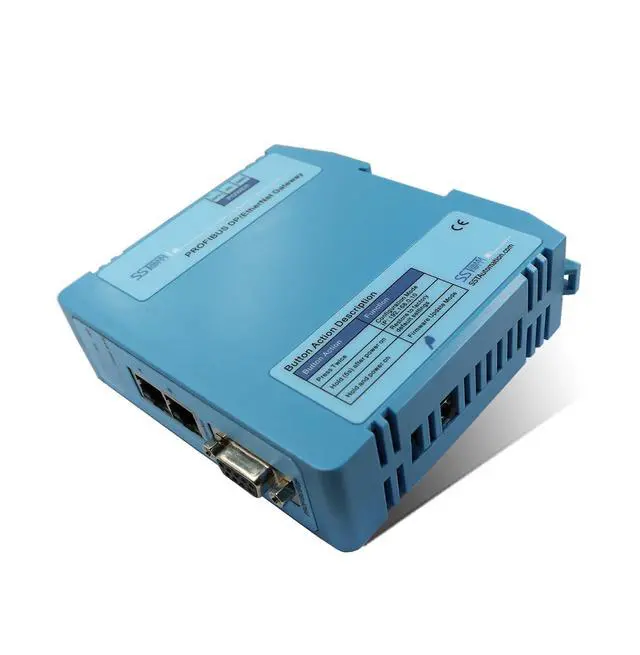

GT200-DPM-EI PROFIBUS-DP/EtherNet/IP/Modbus TCP Gateway

The GT200-DPM-EI is a PROFIBUS DP to EtherNet/IP/Modbus TCP gateway. The GT200-DPM-EI connects multiple PROFIBUS DP devices to EtherNet/IP or Modbus TCP control systems. It serves as a PROFIBUS DP master and operates as an EtherNet/IP adapter or Modbus TCP server, enabling reliable communication with various industrial controllers. baud rate support: 9600bit/s~12Mbit/s. 2.5KV galvanic isolated on PROFIBUS DP interface. Supports ODVA standard EtherNet/IP communication protocol. Acts as EtherNet/IP adapter. Supports Non-DLR (Device Level Ring) operation.EtherNet/IP supports Class 1 and Class 3. Acts as a Modbus TCP Server. Handles up to 8 TCP client connections. Ethernet 10/100M self-adaptive. Two Ethernet RJ45 interface, built-in switch function, support cascade and save cables and switches in field connections. Supports monitoring PROFIBUS DP slaves connection status from the EtherNet/IP network... Operating Temp:-40°F to 158°F (-40°C to 70°C). Rel Humidity: 5%-95% RH non-condensing. Dimension (W*H*D):1.42in*4.57in*4.23in (34mm*116mm*107.4mm). Mounting: DIN Rail Mounting (35mm). Power supply: 24VDC (11V ~ 30V), 160mA (24VDC). Degree of protection: IP20. https://sstcomm.com/Products/PROFIBUS/PROFIBUS_EtherNet_IP/GT200-DPM-EI.html
