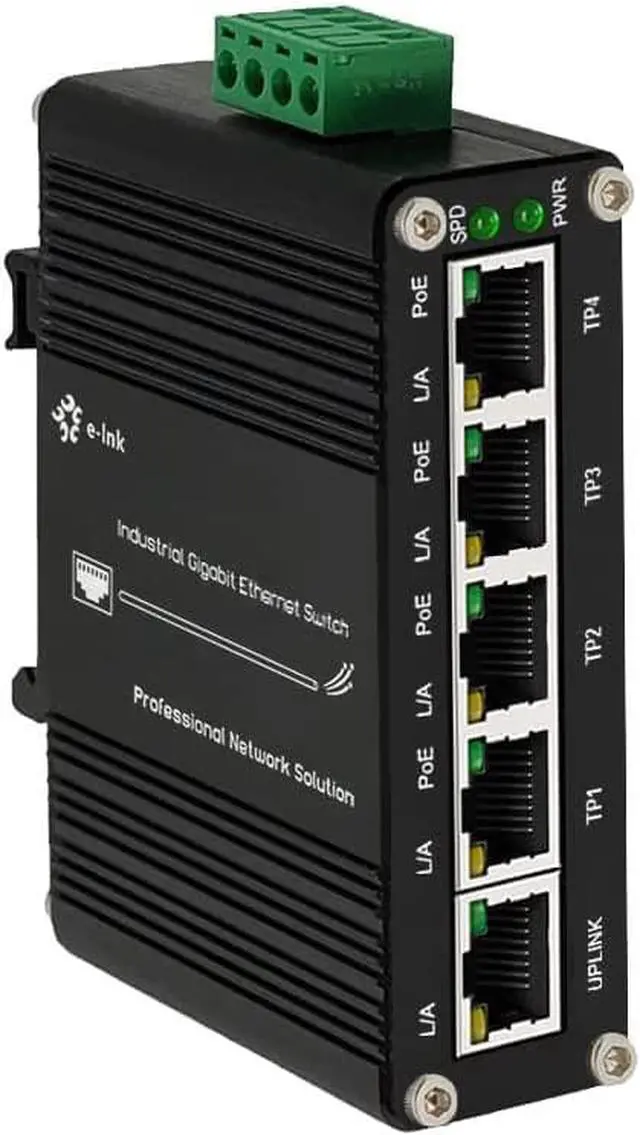

Mini Industrial 5 Ports Gigabit PoE Switch Hardened 5 Port RJ45 10/100/1000Mbps 802.3at Ethernet Switch Din Rail Mount PoE+ Switch (-40 to 167 ºF) 10Gbps Switching Capacity
- 10/100/1000Mbps Ethernet The Industrial 5 ports Ethernet PoE Switch have 5 RJ45 ports 10/100/1000Mbps half/full duplex.
- 12~48V DC Input: The PoE switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.
- Compact Size, Easy to installation The 5 ports Ethernet PoE Switch size is 3.74x2.76x1.18in, it only need small space to install.
- Industrial Grade Quality The Hardened Mini Gigabit PoE Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

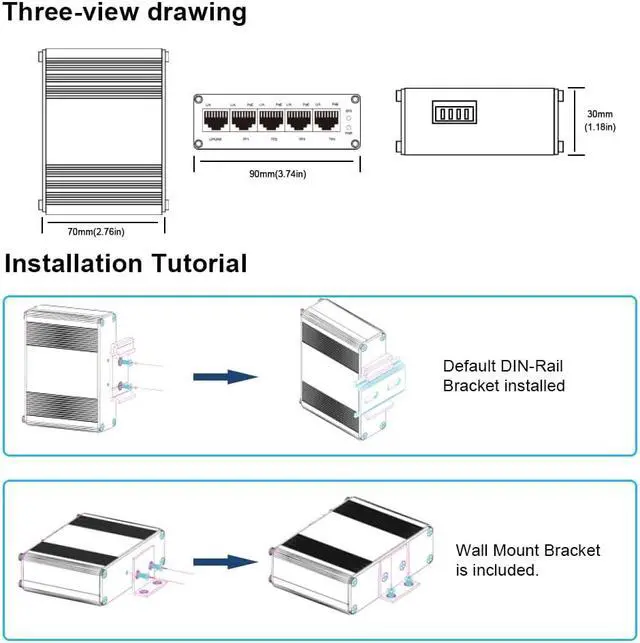

- Din-Rail & Wall Mount The Gigabit PoE Switch come with 35mm Din-rail Clip and Wall mount accessories.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

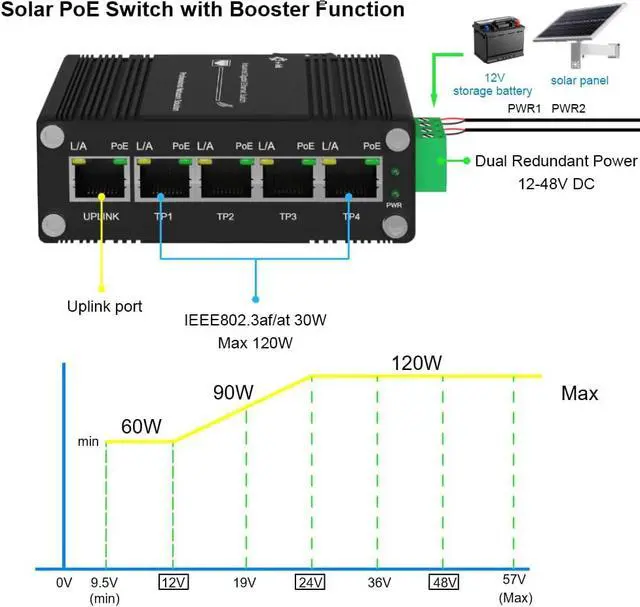

Power supply of 120W can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V 120W power supply are recommended. Of course, we also have a listing of power supply , you can order directly.
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802. 3af (PoE), IEEE802. 3at (PoE+), IEEE 802.3x flow control
Support 2 channel DC12V-48V redundant power inputs and auto failover, ensure high reliability networking system.

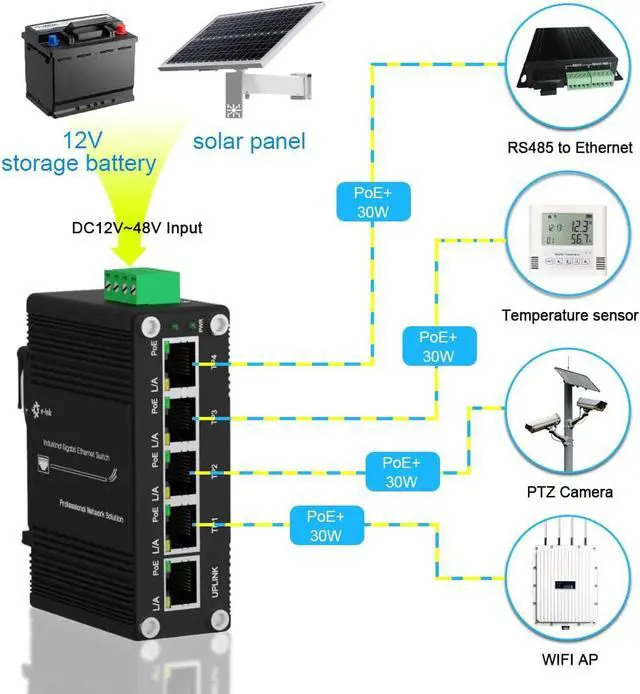

DC 12~48V input and PoE 48V output, can be uesd in PoE cameras, wireless access points, access control etc
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
Casing Material: Aluminum CaseInput Power: 12~48V DC (Terminal Block)Packet Buffer Memory: 1MbitsMax Packet Length: 9K BytesSwitch Capacity: 10Gbps/non-blockingTransmission Distance: up to 20KMPower Consumption: < 125WDimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in)Weight: 250g(0.55lb)
We are pioneers in innovation. The idea to create Steloproad was born in 2017. We have been committed to providing customers with high level, professional quality service, committed to become the best supplier of optical fiber communication products.
Industrial Full Gigabit 5 Ports PoE Switch 12~48V DC Regarding the choice of power supply: (Power Supply not Included) Standard: Dual Redundant Power Input 12-48V DC Key Features: How did we get our start?
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802. 3af (PoE), IEEE802. 3at (PoE+), IEEE 802.3x flow control
Support 2 channel DC12V-48V redundant power inputs and auto failover, ensure high reliability networking system.
DC 12~48V input and PoE 48V output, can be uesd in PoE cameras, wireless access points, access control etc
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
Casing Material: Aluminum CaseInput Power: 12~48V DC (Terminal Block)Packet Buffer Memory: 1MbitsMax Packet Length: 9K BytesSwitch Capacity: 10Gbps/non-blockingTransmission Distance: up to 20KMPower Consumption: < 125WDimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in)Weight: 250g(0.55lb)
We are pioneers in innovation. The idea to create Steloproad was born in 2017. We have been committed to providing customers with high level, professional quality service, committed to become the best supplier of optical fiber communication products.
Industrial Full Gigabit 5 Ports PoE Switch 12~48V DC Regarding the choice of power supply: (Power Supply not Included) Standard: Dual Redundant Power Input 12-48V DC Key Features: How did we get our start?
