CKLau 4Kx2K HDMI KVM Switch 16 Port with Cables, Rack Mount KVM Switch Support HDCP, EDID for Windows, Linux, Mac, Debian, Ubuntu, Fedora, Raspberry Pi and Ubuntu

16 Port KVM Switch 16 Port HDMI KVM Switch 16 Port Computer Switch for 16 Computers Monitor Switch for 16 Computers USB KVM Switch 16 Computers 16 Port KVM Switch HDMI KVM Switch 16 Port Rackmount KVM

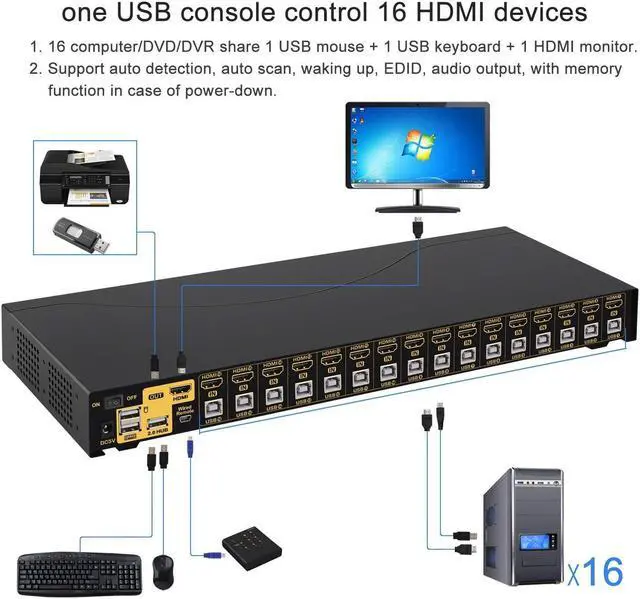

Installation Step
1. Connect the KVM switch and computers by HDMI cables, and USB 2.0 cables that come with the KVM switch;
2. Connect the KVM switch and the monitor by HDMI cable;
3. Plug the mouse into the mouse slot, plug the keyboard into the keyboard, and plug the wired remote button switch/other USB device into the KVM switch if needed.
Datasheet
USB connection: 16
Monitor max resolution: 3840x2160@30Hz
Scan interval: 8-999 seconds
Power consumption: DC5V 3.2W
Properties: housing metal

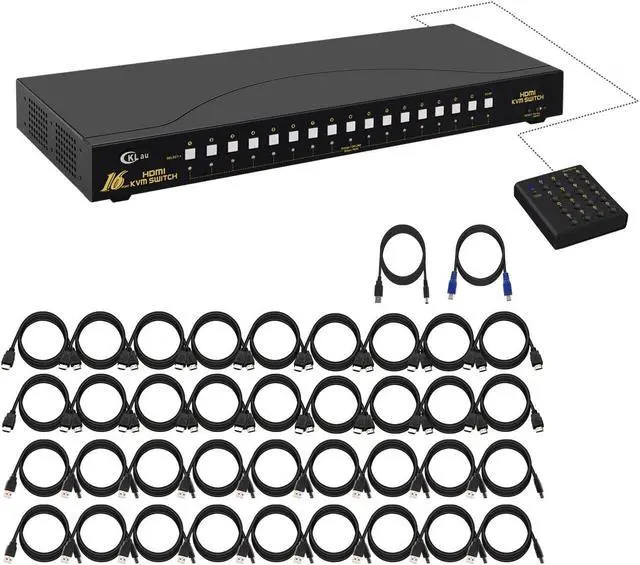

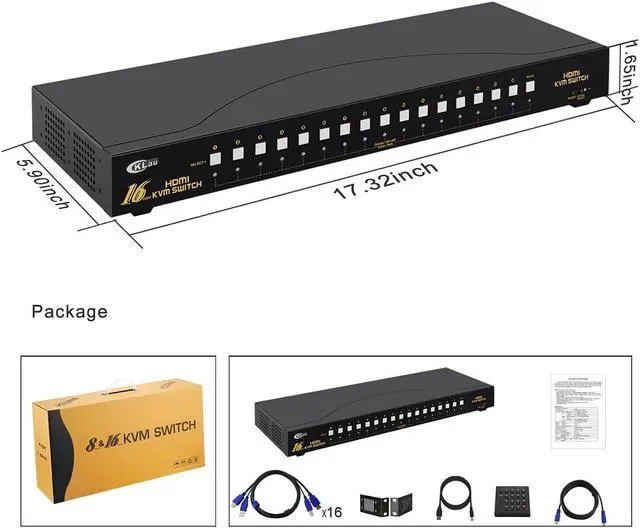

Package: 1 x KVM switch + 1 x DC 5V Power adapter + 16 x HDMI Cable + 16 x USB cables + 1 x User manual + 1 x wire remote push button + 2 pack metal rack
Warm Tips:
The KVM switch comes with a DC5V 2A power adapter, we suggest you plug it into the KVM switch and AC socket, to avoid damaging your devices cause the power supply is not stable.
We have been certified HDMI adopters for over 10 years.
Questions & Answers
1. How to reset the KVM switch? (You can reset the KVM switch when you meet USB disconnect or display issue during use)
Step 1. Turn off the KVM switch and all of your computers/laptops, then unplug all the cables;
Step 2. Plug the DC5V 2A power adapter into the KVM switch and AC socket, and turn on the KVM switch (There is an o/f button on the back);
Step 3. Plug the keyboard into the keyboard slot of the KVM switch;
Step 4. Click right [CTRL] on the keyboard 2 times, then click [ESC] 3 times, at last click [ENTER]. (The whole operation time should not be over 2s after you hear a beep sound, that shows operated successfully);
Step 5. Plug HDMI cables, USB 2.0 cables into the KVM switch and computers, plug HDMI cable into the KVM switch and your monitor; plug the mouse into the mouse slot of the KVM switch; plug wired remote controller into the KVM switch; plug other USB devices into the USB Hub of the KVM switch if needed;
Step 6. Turn on your computers.
2. How to turn off the Beep sound? (Beep sound default turn on, you can turn it on or turn it off by the step)
You need to keep the HOTKEY ON/OFF key turned on(when it turns on, its LED light), plug the keyboard into the keyboard slot, and make this operate: click right [CTRL] on the keyboard 2 times, then click [B], at last click [ENTER]. (The whole time should not be over 2s, that shows operated successfully when you hear a beep sound.)
3. My gaming keyboard and mouse can't work properly.
The hotkey function default turns on.
For gaming/mechanical/unified keyboard/mouse, that may have a compatible issue, if they can't work properly, we suggest you turn off the HOTKEY ON/OFF key(when it turns off, its LED light turns off). Or you can plug your keyboard/mouse into USB Hub port, and then solve the issue.

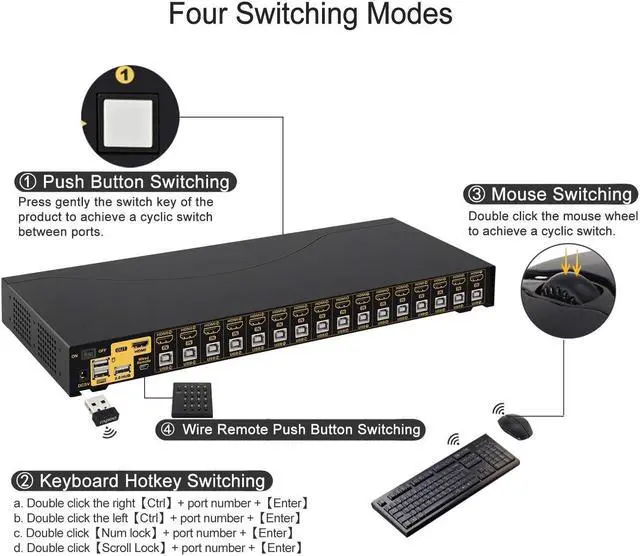

Keyboard SwitchingThe default hotkey key is the right CTRL. Switching operates: Num Lock + Num Lock + 1 / 2 + ... Enter, or Ctrl + Ctrl + 1 / 2 + ... + Enter, or Scroll Lock+ Scroll Lock+1 / 2 + ... + EnterMouse SwitchingClick the mouse wheel 2 times + left button / right button, and then it will switch to another computer.Manual Button SwitchingYou can press the button one time, then it will switch to that computer.Wired Remote SwitchingYou can press the button of the wired remote one time, it will switch to that computer. CKLau 16 In 1 Out 4K30Hz HDMI KVM Switch CKLau 16x1 KVM USB HDMI Switch Connect Diagram This USB KVM Switch 16 Port Support Emulation EDID More Advantage 4 Switching Way Optional
