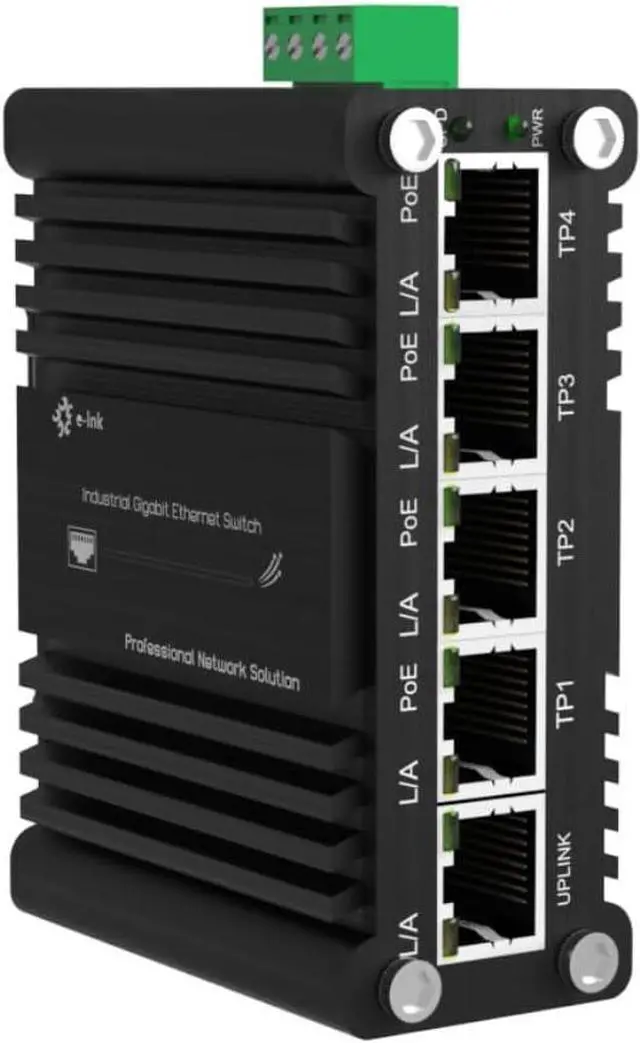

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch, Din Rail Unmanaged 10/100/1000Mbps Network Switch 30W/Port Max 120W 12-48V DC Thick Shell
- Port ConfigurationEquipped with 5 x 10/100/1000BASE-T ports and 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4).

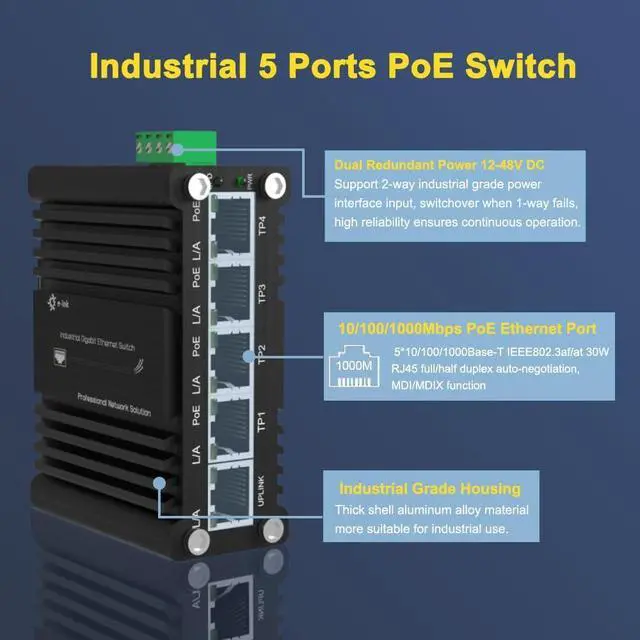

- Redundant Power Input The industrial network switch with DC12-48V wide voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high reliability ensures continuous operation.

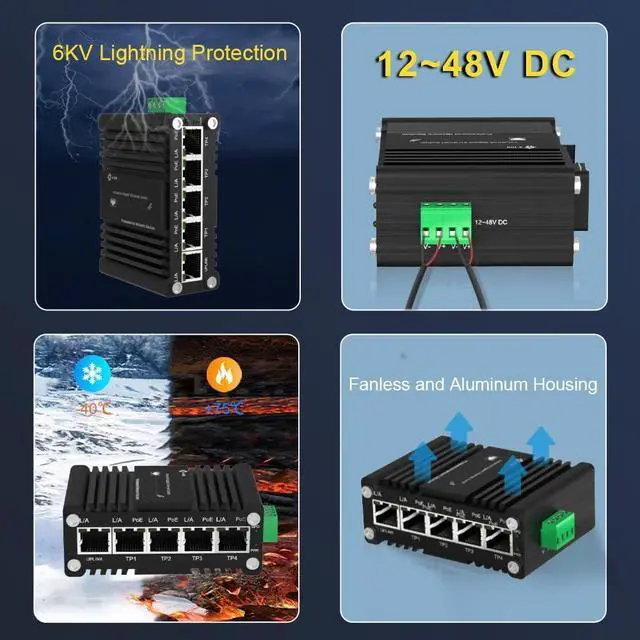

- Industrial Grade QualityIP40 protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F) and 6KV lightning protection which make it can adapt to various harsh environments.
- Din Rail MountThe gigabit 5 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and can install on universal din rail slot. Installation and disassembly are very simple.
- Widely UsedThe din-rail 5 port industrial switch is ideal for Surveillance Network, Industrial Automation, Intelligent Transportation, Smart City
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
LNK-IMC005GP Series is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features:
1. 5 x 10/100/1000BASE-T ports
2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
3. 12~48VDC wide range power input
4. Supports 802.3x Flow control
5. Supports DIN-Rail and Wall-mount installation
6. Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case
8. -40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K

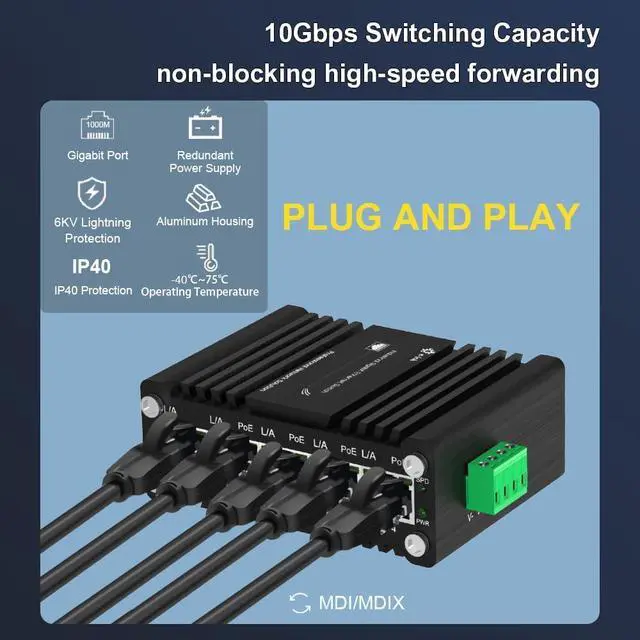

Switch Fabric: 10Gbps/non-blocking
Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports, 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

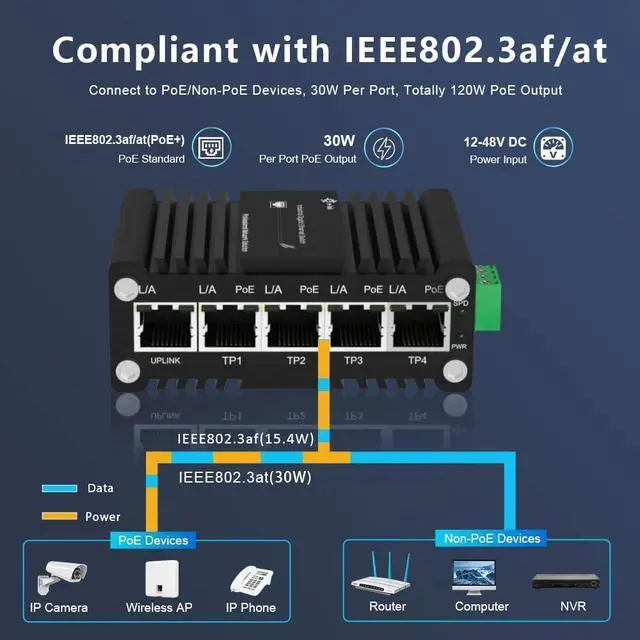

Standard: IEEE802.3af/at
Port: RJ45

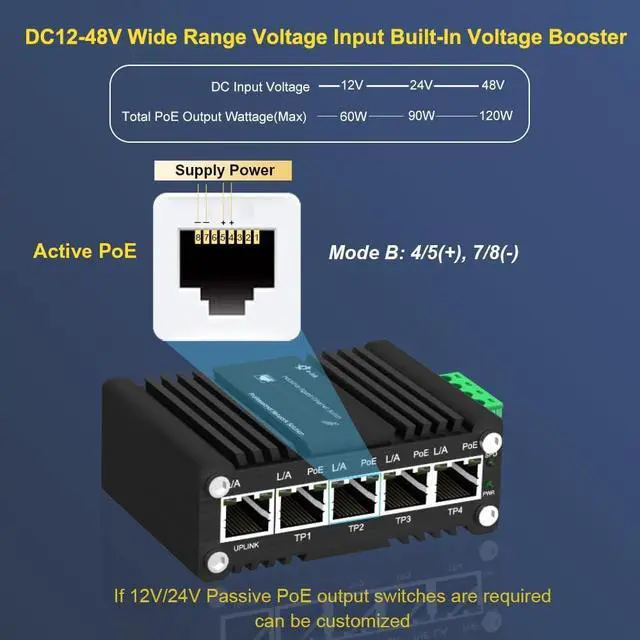

Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)
PoE Max 30W per port
Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Packages:
1* Ethernet Switch
1* 4-pin Terminal Block
1* Ethernet Switch Users Manual
