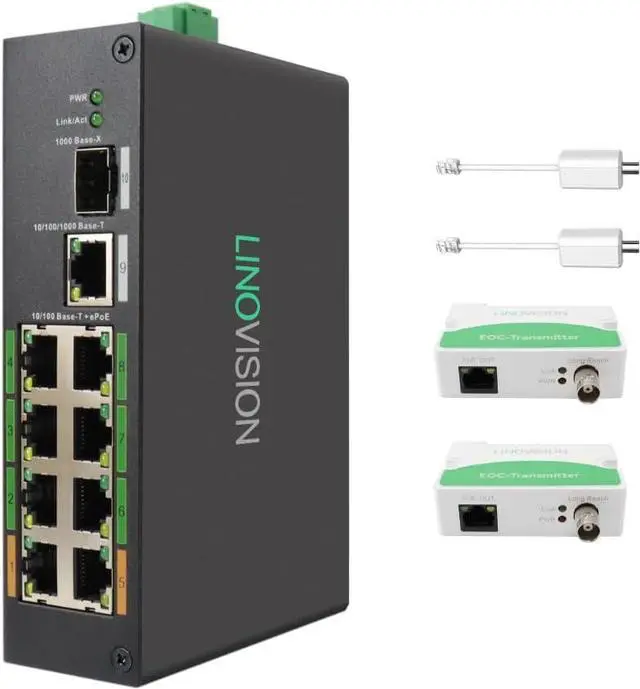

LINOVISION Industrial 8-Port EOC & POE Switch with 2pcs EOC Transmitters, Long Reach PoE Over Coax or UTP Cable, Simplified Wiring, Upgrading Analog System to IP Surveillance System
- 8-PORT POE&EOC HYBRID SWITCHProvides 8 PoE ports with built-in EOC Receiver. Each port is auto-adaptive to PoE mode or EoC(Ethernet over Coax) mode and you can use it flexibly. For example, you can use 4 ports in EoC mode and another 4 ports in PoE mode
- POE OVER COAXTransmits PoE power and data over the coaxial cable when bundling with EOC Transmitter, max 3,300ft distance. Suitable for upgrading analog camera system to IP surveillance system without replacing existing coaxial cables
- LONG REACH POEExtends POE Transmission through regular network cables or twisted pair cables over 2,600ft when bundling with EOC Transmitter. Suitable for monitoring scenarios such as underwater inspection system, seaside video monitoring, dam inspection system, mining facilities, underground pipe inspection systems, etc.
- SIMPLIFIED WIRINGInstead of using 6 pairs of EOC Converters & 1 PoE switch, one EOC Switch can provide the same functions. It provides more-simplified cabling and more-stable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Offering unparalleled advantage for long reach PoE power at almost 10 times longer than regular PoE switches.
While upgrading your analog surveillance system you can add extra IP cameras with UTP (Cat5E/Cat6) cables
Long-reach PoE suitable for underwater inspection system, seaside video monitoring, dam inspection system, mining facilities, underground pipe inspection system, etc. EOC-Switch kit offers a solution to add PoE device or DC12V IoT terminal (need extra POE Splitter) at remote site without power input

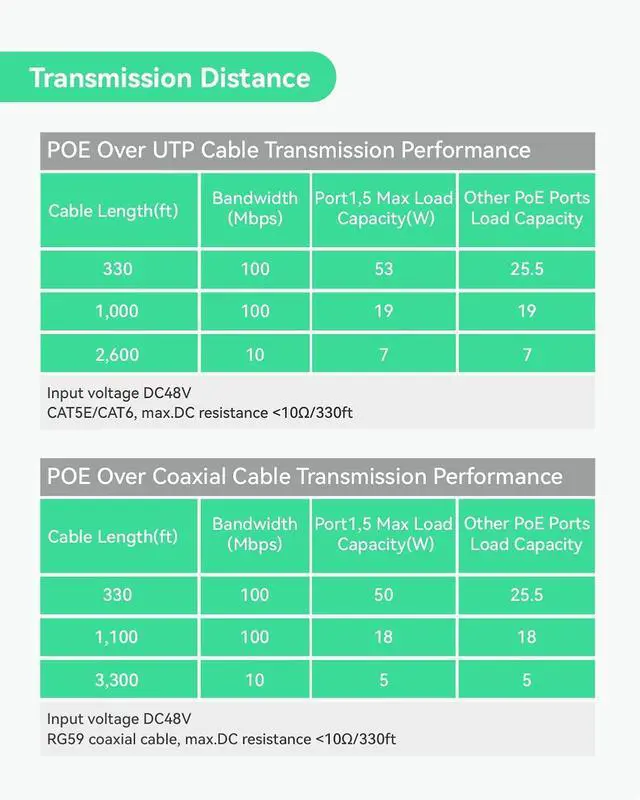

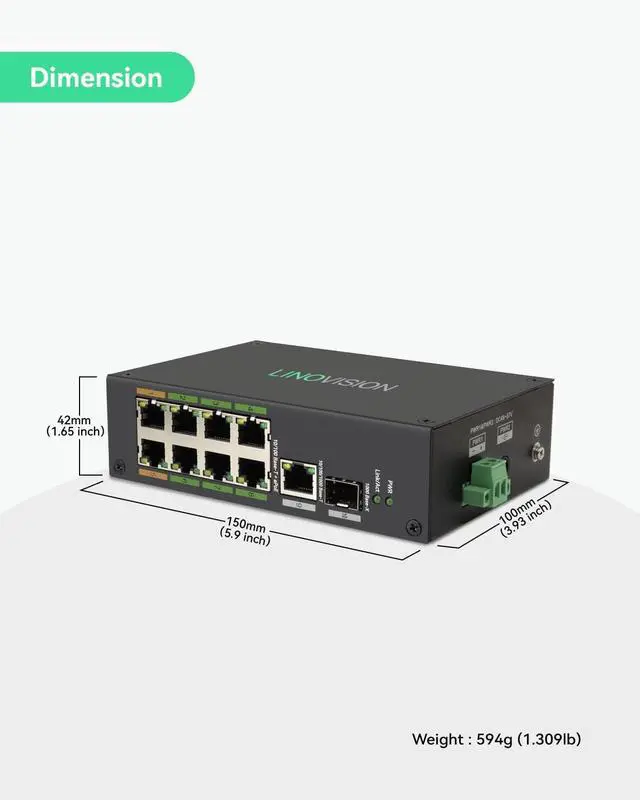

Model EOC-Switch08 Ethernet Port 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) PoE Power Consumption Port1,560W, Port2,3,4,6,7,830W, Total120W PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE Switching Capacity 8.8Gbps Packet Forwarding Rate 4.17Mpps Packet Buffer Memory 2.75Mb MAC Table Size 8K Flow Control Enable by default Application Humidity 10%~90% Power DC48~57V power adapter Lightning Protection Common Mode 4KV Differential Mode 2KV Working Temperature 30°C~65°C Weight 0.59kg Dimension(W×D×H) 150mm×100mm×42mm Industrial EOC Switch with 6 Transmitters Unique Features Compared with Competitors Auto Adaptive Dual DC Inputs Two 60W POE++ Ports Industrial Design Interface Description Connection Diagram Comparison to 8x EOC-Converters Long Reach PoE over UTP or Coaxial Cables when bundled with EOC-Transmitter Transmission Performance & Package
While upgrading your analog surveillance system you can add extra IP cameras with UTP (Cat5E/Cat6) cables
Long-reach PoE suitable for underwater inspection system, seaside video monitoring, dam inspection system, mining facilities, underground pipe inspection system, etc. EOC-Switch kit offers a solution to add PoE device or DC12V IoT terminal (need extra POE Splitter) at remote site without power input
Model EOC-Switch08 Ethernet Port 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) PoE Power Consumption Port1,560W, Port2,3,4,6,7,830W, Total120W PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE Switching Capacity 8.8Gbps Packet Forwarding Rate 4.17Mpps Packet Buffer Memory 2.75Mb MAC Table Size 8K Flow Control Enable by default Application Humidity 10%~90% Power DC48~57V power adapter Lightning Protection Common Mode 4KV Differential Mode 2KV Working Temperature 30°C~65°C Weight 0.59kg Dimension(W×D×H) 150mm×100mm×42mm Industrial EOC Switch with 6 Transmitters Unique Features Compared with Competitors Auto Adaptive Dual DC Inputs Two 60W POE++ Ports Industrial Design Interface Description Connection Diagram Comparison to 8x EOC-Converters Long Reach PoE over UTP or Coaxial Cables when bundled with EOC-Transmitter Transmission Performance & Package
