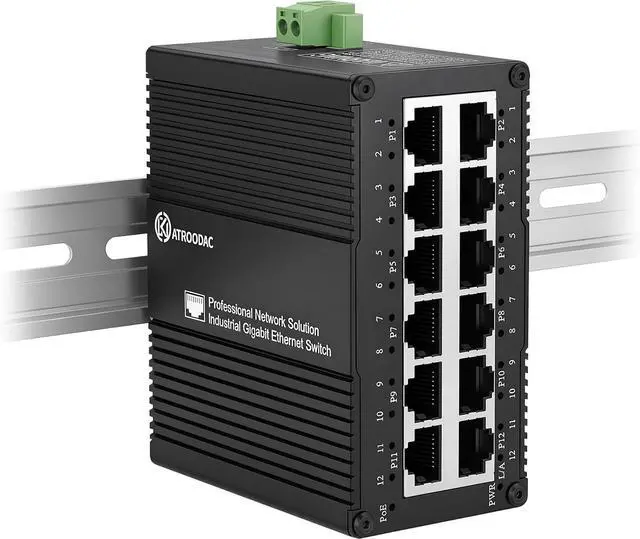

Industrial 12 Port Gigabit PoE Switch, DC 12-48V to 48V PoE Boost
- Dual Power Inputs Power the switch via DC 1248V for full PoE/PoE+ output in permanent installations, or use USB-C 5V for quick setup and network testing. USB-C is for switch power only and does not support PoE output. (Note: Power Adapter not included.)
- 12-Port Gigabit & 30W High PoE Power12 × 10/100/1000BASE-T auto-negotiation RJ45 ports. Each port supplies up to 30W PoE/PoE+ (IEEE 802.3af/at), enabling simultaneous power and data transmission for IP cameras, PTZ cameras, wireless access points, VoIP phones, NVR systems, and access control devices.
- 12V-48V Wide Input & Smart Voltage Boost Supports DC 12V-48V input and automatically boosts it to standard 48V PoE output. The PoE power budget scales with the input voltage: 100W @ 12V, 280W @ 24V, and 360W @ 48V. Ideal for solar power systems, RVs, vehicles, mobile surveillance, and off-grid installations.
- Industrial Grade Durability & Ultra-Compact Housed in a rugged IP40-rated aluminum alloy casing, built to withstand extre
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The ATROODAC 12-Port Gigabit PoE Switch is engineered for demanding industrial and security applications. Every detail is designed for reliability and ease of use.

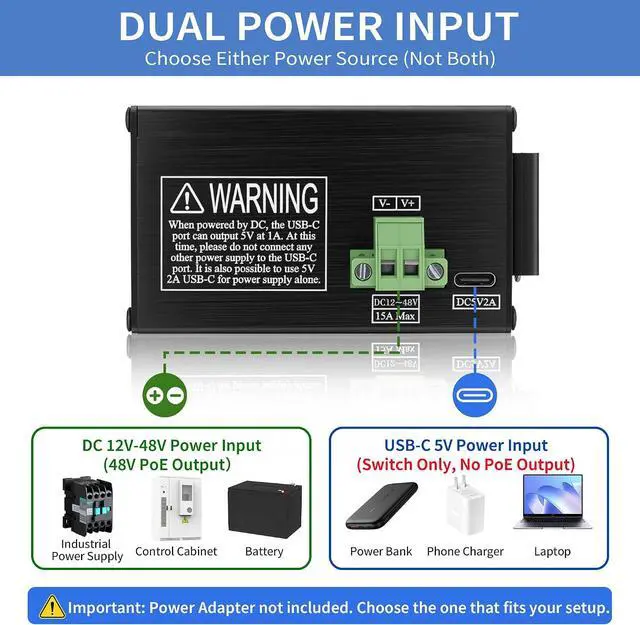

Option 1: DC Terminal (12-48V) For Industrial & PoE Applications
This is the recommended input for powering both the switch and your PoE devices (IP cameras, PTZ, APs, etc.).
Option 2: USB-C (5V) Switch Only (No PoE)
Note: Power adapter is NOT included. Please choose one that fits your setup.

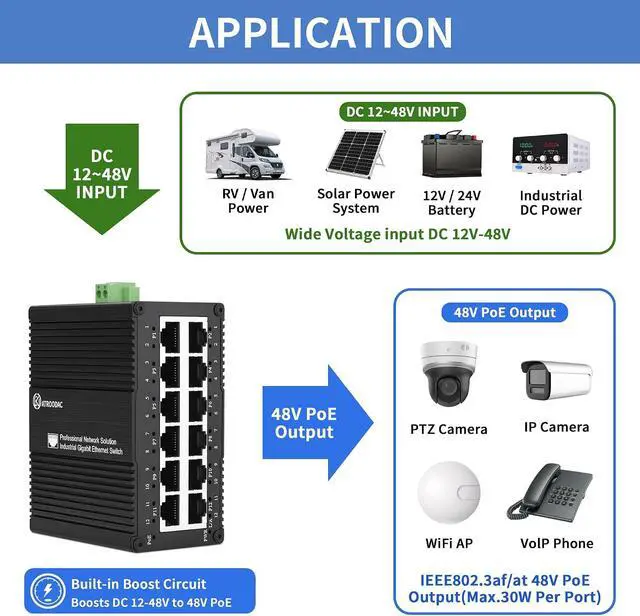

The ATROODAC Industrial PoE Switch features a built-in boost circuit that accepts any DC input from 12V to 48V from solar systems, RV batteries, or industrial power supplies and automatically boosts it to standard 48V PoE output. No dedicated 48V power supply needed. Power your devices easily.

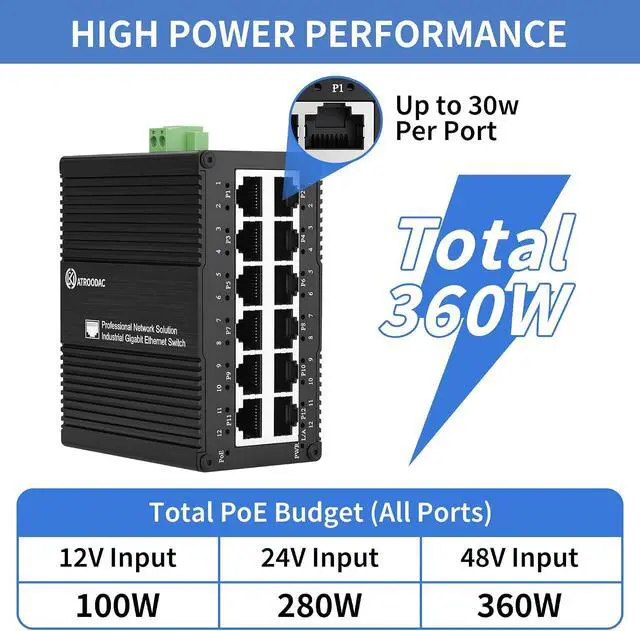

Total PoE budget adapts to your power source. 12V input delivers 100W, 24V input delivers 280W, and 48V input delivers up to 360W. With 12 Gigabit ports, each providing 30W (IEEE 802.3af/at), you can power IP cameras, PTZ, WiFi APs, and VoIP phones simultaneously. Plug and Play.

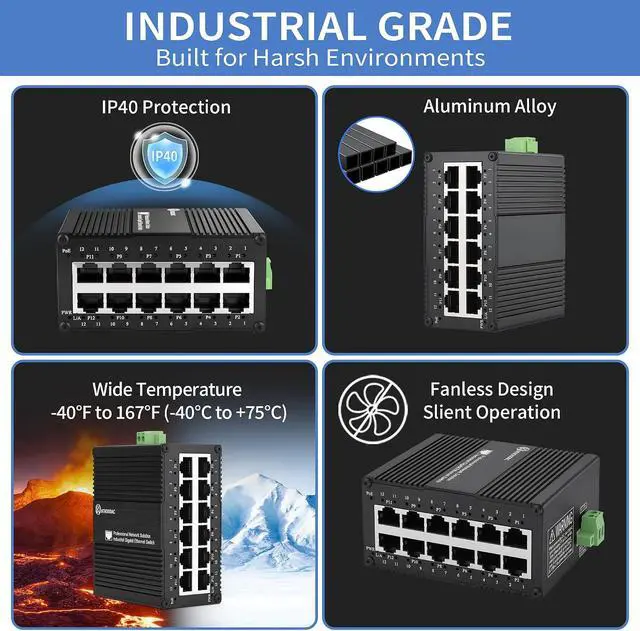

Engineered for extreme environments. Operates reliably from -40°F to 167°F (-40°C to 75°C). Perfect for desert heat, or freezing cold.

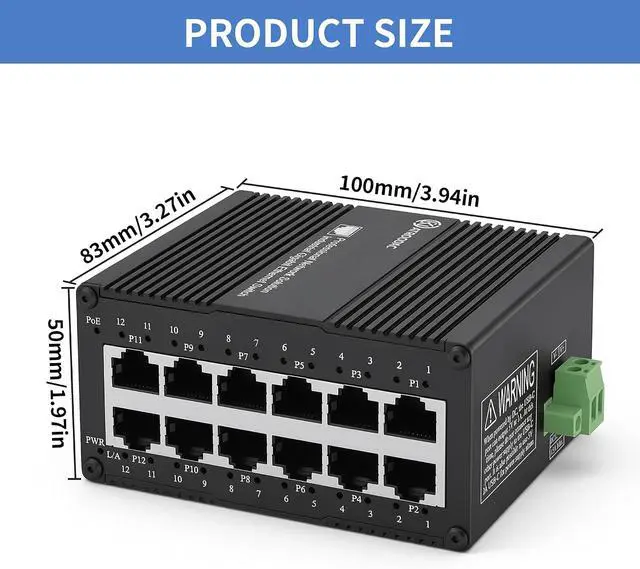

Measures just 3.91×3.27×1.97in (100×83×50mm). Easily fits into network cabinets, outdoor enclosures, junction boxes, or tight spaces.
No noise. Ideal for offices, studios, libraries, and bedrooms. Cool running and maintenance-free.

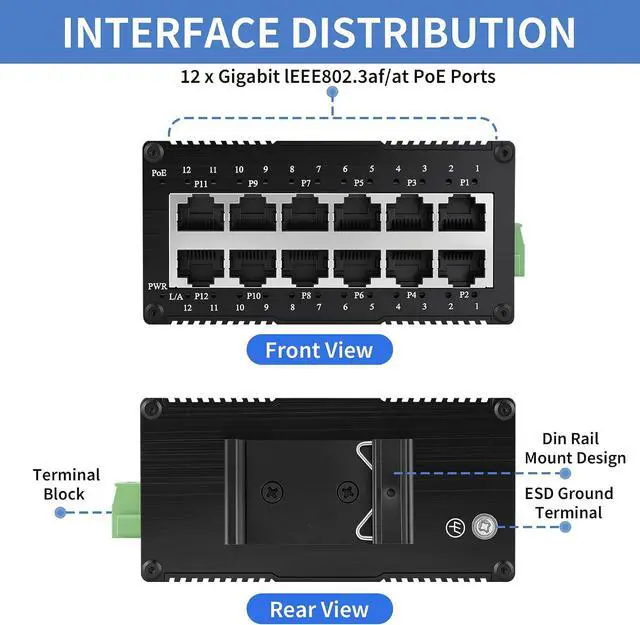

Supports 35mm DIN rail mounting for industrial cabinets and wall mount for enclosures or offices. Everything you need is included.
1Solar-Powered Security2Power on the Road3Plug & Play Anywhere Ports 12 × 10/100/1000BASE-T RJ45 (Auto-sensing) PoE Standard IEEE 802.3af/at (PoE / PoE+) PoE Power per Port Up to 30W Total PoE Budget 100W @12V input / 280W @24V input / 360W @48V input DC Input Voltage 12V 48V (via DC Terminal) PoE Output Voltage 48V (boosted from input) USB-C Input 5V / 2A (Switch only, No PoE) Switching Capacity 20 Gbps Transfer Mode Store-and-Forward Housing Aluminum Alloy, IP40 Rated Mounting 35mm DIN Rail / Wall Mount / Desktop Operating Temperature -40°F ~ 167°F (-40°C ~ 75°C) Dimensions 3.91 × 3.27 × 1.97 in (100 × 83 × 50 mm) Package Includes 1 × Switch, 1 × DC Terminal Block, 1 × Mounting Kit, 1 × User Manual Operating Humidity 5% ~ 95% (non-condensing) MTBF > 100,000 hours Professional Network Solution for Harsh Environments. Plug And Play. Power Flexibility Choose ONE at a time Wide Voltage Input to Stable PoE Output Total PoE Budget Scales with Your Input Voltage Built for Any Environment Industrial & Compact Wide Temperature Range Ultra-Compact Fanless & Silent Flexible Mounting Technical Specifications
Option 1: DC Terminal (12-48V) For Industrial & PoE Applications
This is the recommended input for powering both the switch and your PoE devices (IP cameras, PTZ, APs, etc.).
Option 2: USB-C (5V) Switch Only (No PoE)
Note: Power adapter is NOT included. Please choose one that fits your setup.
The ATROODAC Industrial PoE Switch features a built-in boost circuit that accepts any DC input from 12V to 48V from solar systems, RV batteries, or industrial power supplies and automatically boosts it to standard 48V PoE output. No dedicated 48V power supply needed. Power your devices easily.
Total PoE budget adapts to your power source. 12V input delivers 100W, 24V input delivers 280W, and 48V input delivers up to 360W. With 12 Gigabit ports, each providing 30W (IEEE 802.3af/at), you can power IP cameras, PTZ, WiFi APs, and VoIP phones simultaneously. Plug and Play.
Engineered for extreme environments. Operates reliably from -40°F to 167°F (-40°C to 75°C). Perfect for desert heat, or freezing cold.
Measures just 3.91×3.27×1.97in (100×83×50mm). Easily fits into network cabinets, outdoor enclosures, junction boxes, or tight spaces.
No noise. Ideal for offices, studios, libraries, and bedrooms. Cool running and maintenance-free.
Supports 35mm DIN rail mounting for industrial cabinets and wall mount for enclosures or offices. Everything you need is included.
1Solar-Powered Security2Power on the Road3Plug & Play Anywhere Ports 12 × 10/100/1000BASE-T RJ45 (Auto-sensing) PoE Standard IEEE 802.3af/at (PoE / PoE+) PoE Power per Port Up to 30W Total PoE Budget 100W @12V input / 280W @24V input / 360W @48V input DC Input Voltage 12V 48V (via DC Terminal) PoE Output Voltage 48V (boosted from input) USB-C Input 5V / 2A (Switch only, No PoE) Switching Capacity 20 Gbps Transfer Mode Store-and-Forward Housing Aluminum Alloy, IP40 Rated Mounting 35mm DIN Rail / Wall Mount / Desktop Operating Temperature -40°F ~ 167°F (-40°C ~ 75°C) Dimensions 3.91 × 3.27 × 1.97 in (100 × 83 × 50 mm) Package Includes 1 × Switch, 1 × DC Terminal Block, 1 × Mounting Kit, 1 × User Manual Operating Humidity 5% ~ 95% (non-condensing) MTBF > 100,000 hours Professional Network Solution for Harsh Environments. Plug And Play. Power Flexibility Choose ONE at a time Wide Voltage Input to Stable PoE Output Total PoE Budget Scales with Your Input Voltage Built for Any Environment Industrial & Compact Wide Temperature Range Ultra-Compact Fanless & Silent Flexible Mounting Technical Specifications
