MokerLink 24 Port 2.5G Manged Ethernet Switch with 6x10G SFP, 24 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Web L2+ Managed Fanless Network Switch

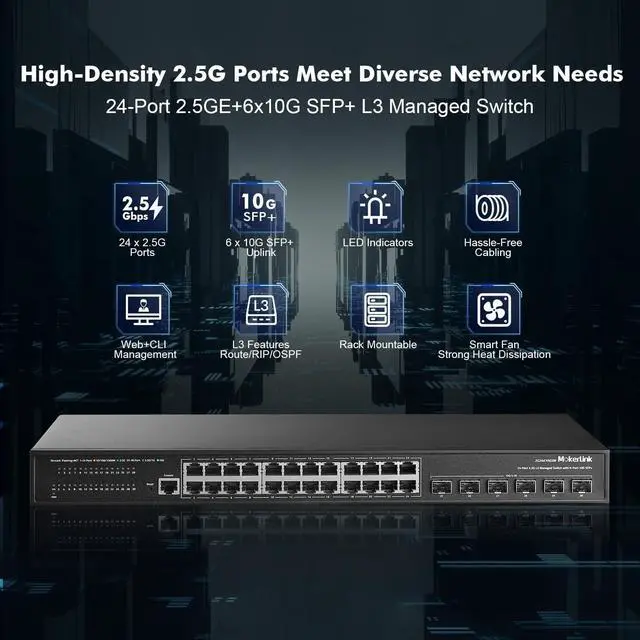

2G24610GSM is a L3 Lite Managed switch with 24x2.5GbE and 6x10GbE SFP+ ports. 24 ethernet ports provide either 10M, 100M, 1G and 2.5G connectivity, as well as 6 SFP+ Fiber port with 1G, 2.5G or 10G connectivity. Each port automatically detects which speed is needed. Support L3 lite featues.

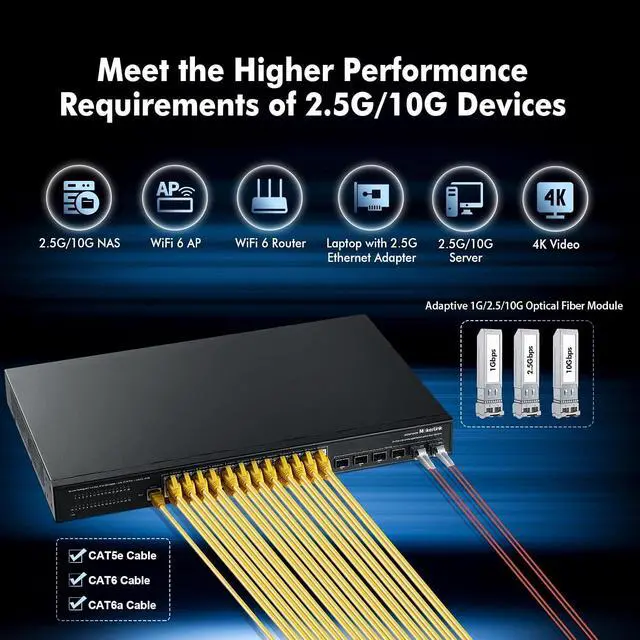

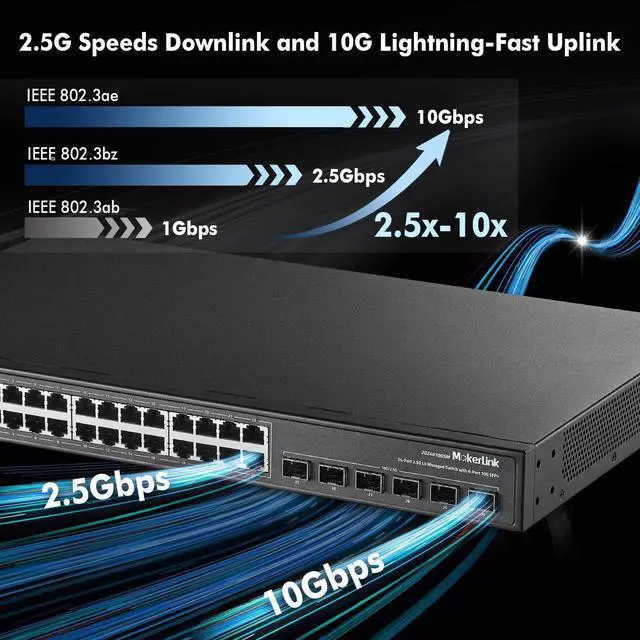

24× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth.
6× 10Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 2.5G, 10G sfp modules that can connect to core servers and switches
Supports the IEEE 802.3az Energy-Efficient Ethernet standard(EEE). Switches automatically adjust power consumption according to the link status and cable length, With smart fan and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently.
Flexible deployment options for rack-mount or desktop in your office and home, meet the network environment requirement.

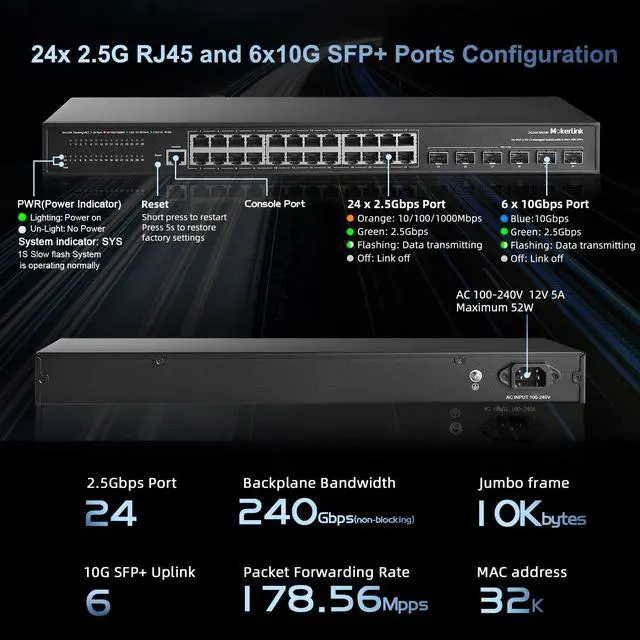

1Flexible Management2802.1Q Tag-Based VLAN3QoS (Quality of Service)4Link Aggregation(LACP)5Static Route Model 2G24610GSM (24-Port 2.5G and 6-Port 10G SFP+ L3 Lite Managed Switch) Interface 24 * 2.5G RJ45 port + 6 * 10G SFP+ port Port Standard IEEE 802.3: Ethernet Media Access Control (MAC) Protocol, IEEE 802.3i: 10BASE-T Ethernet, IEEE 802.3u: 100BASE-TX Fast Ethernet, IEEE 802.3ab: 1000BASE-T Gigabit Ethernet, IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic), IEEE 802.3x: Flow Control, IEEE 802.3az (Efficient and Energy saving Ethernet), IEEE 802.3ae (10 Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3 bz (2.5G/5G Ethernet standard) Switching Capacity 240Gbps Packet Forwarding Rate 178.56Mpps Packet Buffer 16Mbit MAC Address Table 32K Jumbo Frame Support, 10Kbytes Power Supply Working Voltage: AC100-240V 50/60Hz Power Supply: DC 12V5A, Mainboard Power Consumption 52W Structure Information ProductDimensions:440*281*44mm PackageDimensions:500*365*85mm ProductN.W:4.02KG ProductG.W:4.79KG Environment Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing Mounting Desktop / Rack-mount, Metal Housing LED Indicator PWR On: Power on, Off: Power off; SYS On: The system is operating normally, Flashing: System startup in progress, Warning light System temperature or voltage abnormal alarm; Link Port light Green on: 2.5G Link, Yellow on: 100/1000M Link, On: Link transiting, Off: Link not transiting; SFP Port light Blue on: 10G Link, Green on: 2.5G Link, Flashing: Link transiting, Off: Link not transiting Fan Quantity 1 Package Contents Switch 1pcs, power cord 1pcs, instruction manual 1pcs, mounting ears 1 pair SMART FEATURES L3 Lite Features: VLAN, QoS, IEEE 802.3ad LACP, IGMP Snooping, Port Mirroring, Static Route, RIP, OSPF, DHCP 24x 2.5G Ports for WiFi 7/6 or NAS 6x 10G SFP+ Slots for Servers or Core Switches Energy efficient Mounting flexibility Technical Parameter
