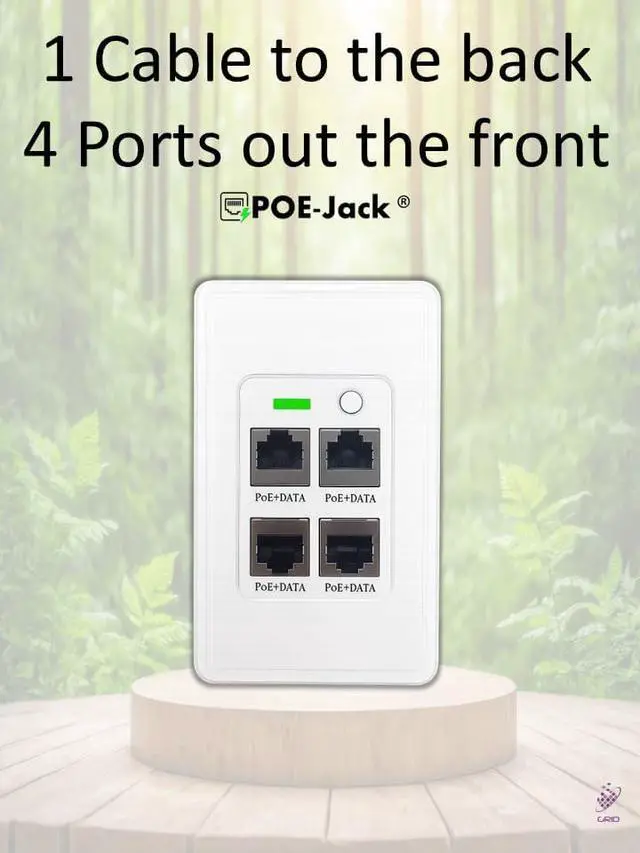

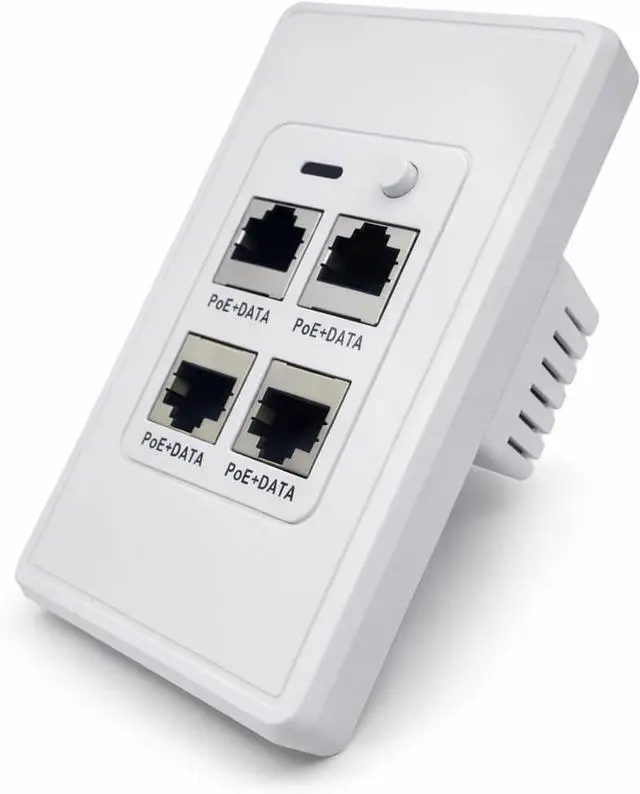

Active PoE-Jack 4 Port in-Wall Gigabit PoE Ethernet Extender Switch Plate, IEEE 802.3bt Uplink, Passes VLAN, Extends Ethernet, Cameras, POS, WiFi AP, VoIP & More.1 Rear Port & 4 Ports Out the Front.
- Significant Network Infrastructure Reduction: Reduces network cabling by up to 75%, requiring fewer patch panel ports, POE switch ports, and patch cables, while minimizing conduit, cable tray, wire management, and rack space requirements with 1 uplink cable to the rear of each plate providing 4 Ethernet/POE ports
- High-Power IEEE 802.3bt Uplink Support: Features Gigabit uplink with IEEE 802.3bt Type 4 Class 8 support delivering up to 95W input power, capable of powering up to four IEEE 802.3af devices, four IEEE 802.3at Type 1 POE+ devices, or three IEEE 802.3at Type 2 Class 4 POE+ devices with 60W total output and maximum 30W per port
- Network Extension and VLAN Compatibility: Extends IP and PoE connections an additional 328 feet while passing VLAN traffic seamlessly, with remaining ports continuing to pass Ethernet without POE when full POE budget is utilized
- Professional Installation Design: Includes screwless snap-on faceplate for clean installation, fits standard electrical outl
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Reduce your cabling, patch panel ports, switch ports, wire management and rack space using Active POE-Jack.
Proven and tested for performance
Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS
-Shallower Depth

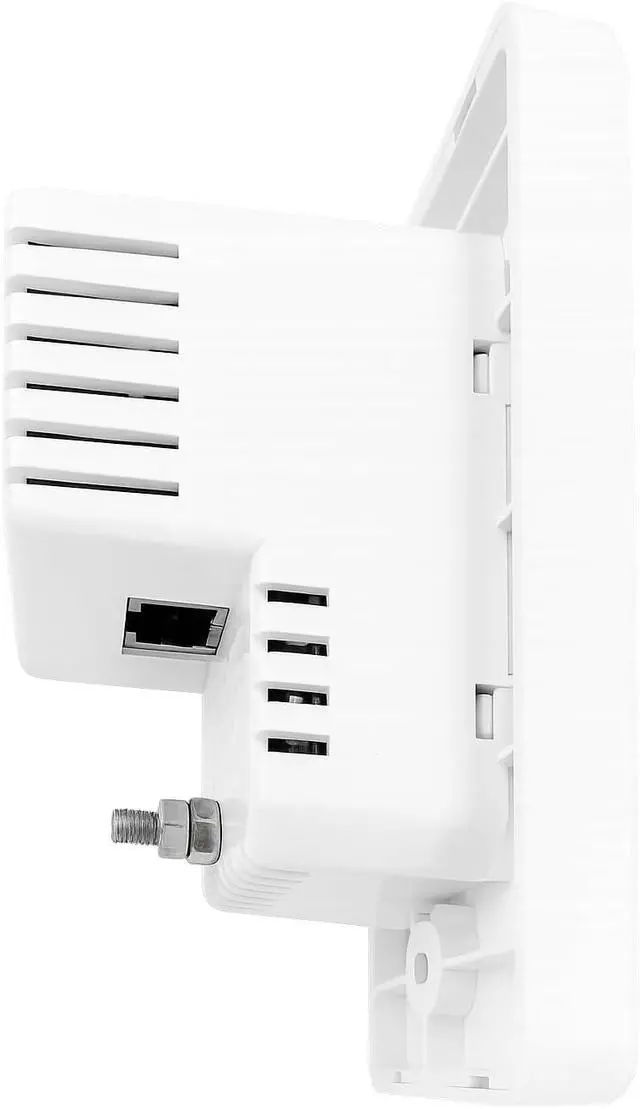

-Bottom RJ45 Uplink connection
-Grounding post does not stick out past the housing
-Green LED indicator
-On/Off switch for LED indicator
-Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS that the previous model did not have.
Use with POE Switches or POE Injectors.

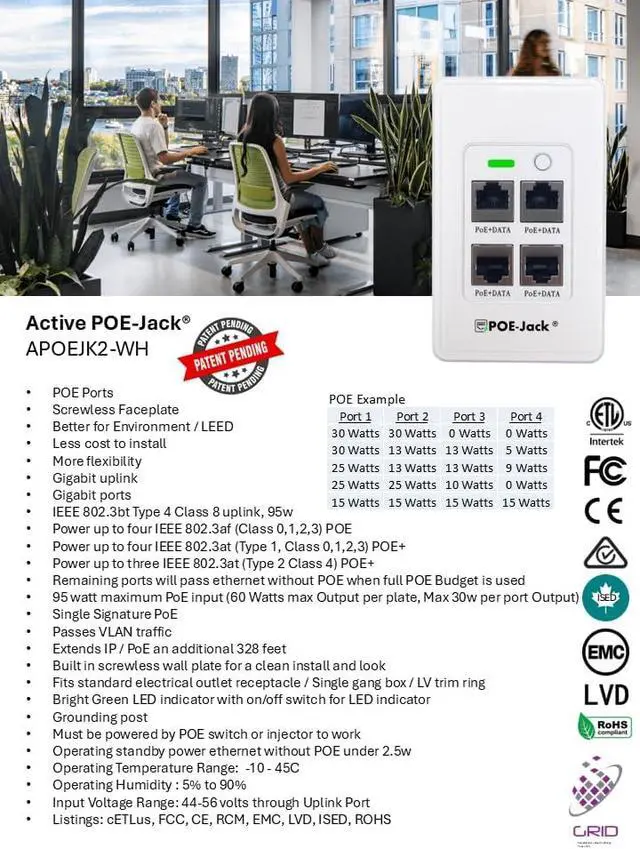

POE Ports
Better for Environment/LEED
Less cost to install
More flexibility
Gigabit uplink
Gigabit ports
IEEE 802.3bt Type 4 Class 8 uplink, 95w
Power up to four IEEE 802.3af (Class 0,1,2,3) POE
Power up to four IEEE 802.3at (Type 1, Class 0,1,2,3) POE+
Power up to three IEEE 802.3at (Type 2 Class 4) POE+
Remaining ports will pass ethernet without POE when full POE Budget is used
95 wattmaximum PoE input (60 Watts max Output per plate, Max 30w per port Output)
Single Signature PoE
Passes VLAN traffic
Extends IP / PoE an additional 328 feet
Built in screwless wall plate for a clean install and look
Fits standard electrical outlet receptacle / Single gang box / LV trim ring
Bright Green LED indicator with on/off switch for LED indicator
Grounding post
Must be powered by POE switch or injector to work
Operating standby power ethernet without POE under 2.5w
Operating Temperature Range: -10 - 45C
Operating Humidity : 5% to 90%
Input Voltage Range: 44-56 volts through Uplink Port
Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS
See More 1 Cable to each wall plate Providing 4 Ports New & Improved Have 1 Cable but need more ports? Features
Proven and tested for performance
Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS
-Shallower Depth
-Bottom RJ45 Uplink connection
-Grounding post does not stick out past the housing
-Green LED indicator
-On/Off switch for LED indicator
-Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS that the previous model did not have.
Use with POE Switches or POE Injectors.
POE Ports
Better for Environment/LEED
Less cost to install
More flexibility
Gigabit uplink
Gigabit ports
IEEE 802.3bt Type 4 Class 8 uplink, 95w
Power up to four IEEE 802.3af (Class 0,1,2,3) POE
Power up to four IEEE 802.3at (Type 1, Class 0,1,2,3) POE+
Power up to three IEEE 802.3at (Type 2 Class 4) POE+
Remaining ports will pass ethernet without POE when full POE Budget is used
95 wattmaximum PoE input (60 Watts max Output per plate, Max 30w per port Output)
Single Signature PoE
Passes VLAN traffic
Extends IP / PoE an additional 328 feet
Built in screwless wall plate for a clean install and look
Fits standard electrical outlet receptacle / Single gang box / LV trim ring
Bright Green LED indicator with on/off switch for LED indicator
Grounding post
Must be powered by POE switch or injector to work
Operating standby power ethernet without POE under 2.5w
Operating Temperature Range: -10 - 45C
Operating Humidity : 5% to 90%
Input Voltage Range: 44-56 volts through Uplink Port
Listings: cETLus, FCC, CE, RCM, EMC, LVD, ISED, ROHS
See More 1 Cable to each wall plate Providing 4 Ports New & Improved Have 1 Cable but need more ports? Features
