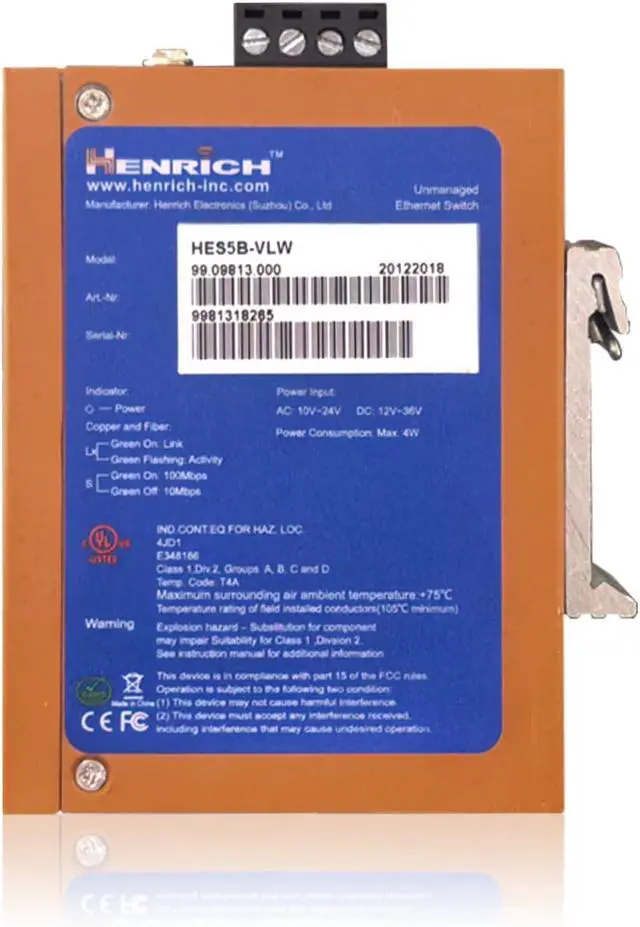

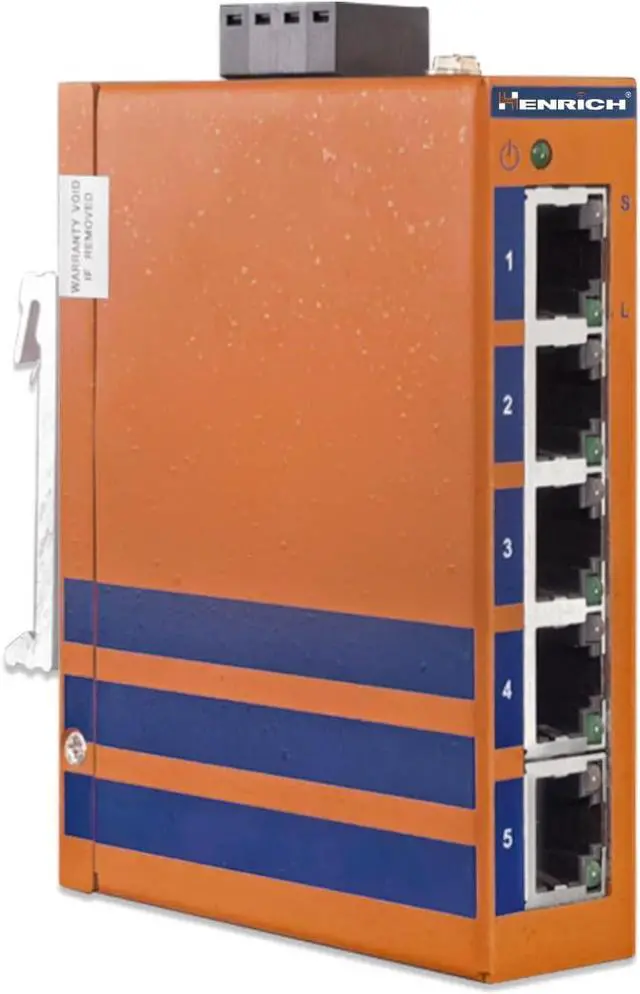

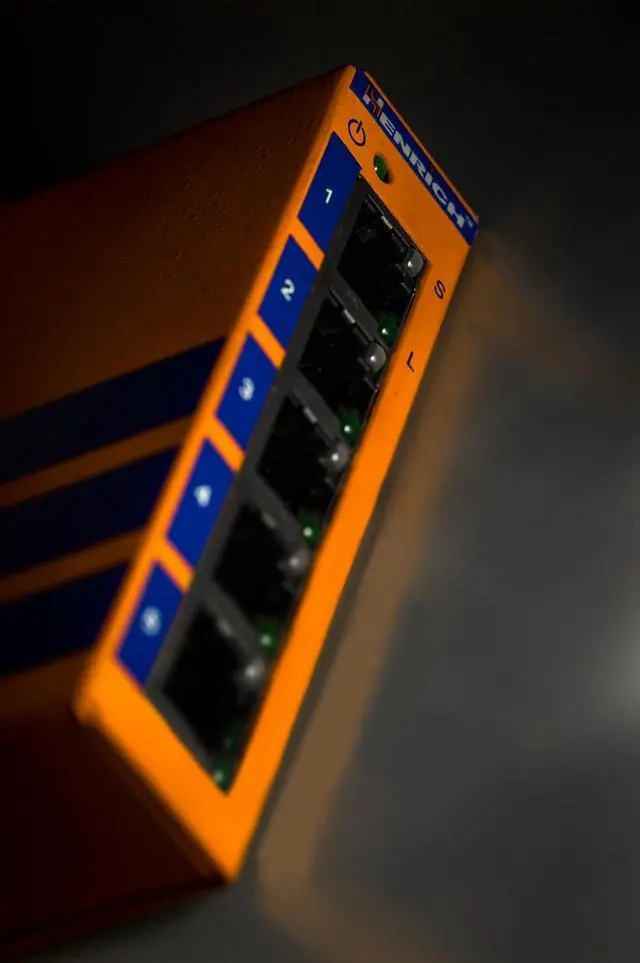

True Industrial Ethernet: Henrich 5x100Mbps Copper Port Din-Rail Switch
- UL C1D2 Hazadous location compliant strength. Meets FCC Part 15 and CISPR/EN 55022 Class A requirements, with Level 3 protection for ESD, radiated immunity, EFT, surge, and conducted immunity.
- 5-PORT FAST ETHERNET Five 10/100Base-T(X) RJ45 ports with auto-negotiation, auto MDI/MDI-X, and full/half-duplex operation. Supports IEEE 802.3, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x flow control for plug-and-play industrial Ethernet connectivity.

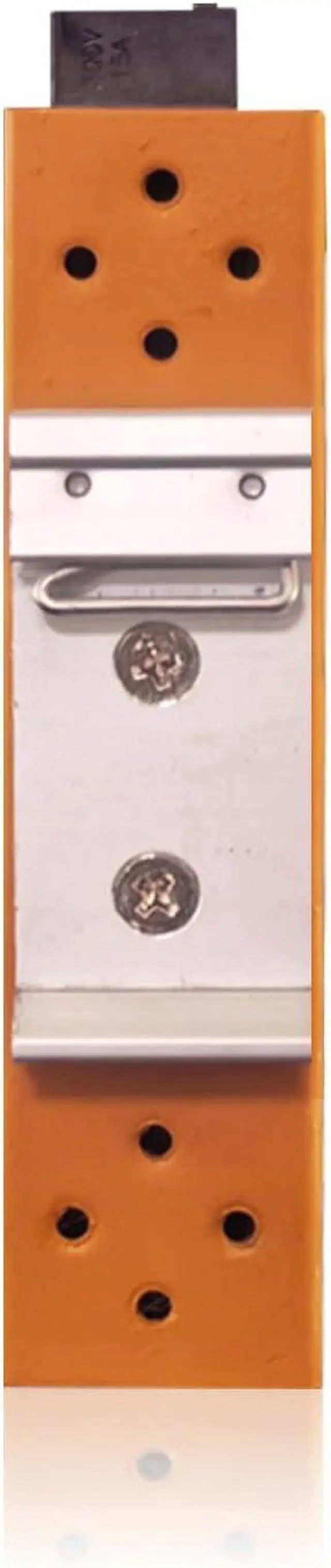

- COMPACT RUGGED INDUSTRIAL DESIGN Operates from -40 to 75°C (-40 to 167°F) in an IP30-rated fanless metal enclosure measuring only 25 × 100 × 75 mm. Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall.
- DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included.
- INDUSTRIAL SWITCHING PERFORMANCE Unmana
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UL C1D2 Hazadous location compliant strength. Meets FCC Part 15 and CISPR/EN 55022 Class A requirements, with Level 3 protection for ESD, radiated immunity, EFT, surge, and conducted immunity.
5-PORT FAST ETHERNET Five 10/100Base-T(X) RJ45 ports with auto-negotiation, auto MDI/MDI-X, and full/half-duplex operation. Supports IEEE 802.3, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x flow control for plug-and-play industrial Ethernet connectivity.
COMPACT RUGGED INDUSTRIAL DESIGN Operates from -40 to 75°C (-40 to 167°F) in an IP30-rated fanless metal enclosure measuring only 25 × 100 × 75 mm. Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall.
DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included.
INDUSTRIAL SWITCHING PERFORMANCE Unmanaged store-and-forward switching architecture with a 2K MAC address table and 512 Kbit packet buffer. Designed for reliable data transmission between PLCs, HMIs, CNC machines, controllers, and other industrial Ethernet devices.
Designed and supported by our US TEAM with 5-YEAR WARRANTY local assistance for product selection, installation, and troubleshooting.
5-PORT FAST ETHERNET Five 10/100Base-T(X) RJ45 ports with auto-negotiation, auto MDI/MDI-X, and full/half-duplex operation. Supports IEEE 802.3, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x flow control for plug-and-play industrial Ethernet connectivity.
COMPACT RUGGED INDUSTRIAL DESIGN Operates from -40 to 75°C (-40 to 167°F) in an IP30-rated fanless metal enclosure measuring only 25 × 100 × 75 mm. Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall.
DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included.
INDUSTRIAL SWITCHING PERFORMANCE Unmanaged store-and-forward switching architecture with a 2K MAC address table and 512 Kbit packet buffer. Designed for reliable data transmission between PLCs, HMIs, CNC machines, controllers, and other industrial Ethernet devices.
Designed and supported by our US TEAM with 5-YEAR WARRANTY local assistance for product selection, installation, and troubleshooting.
