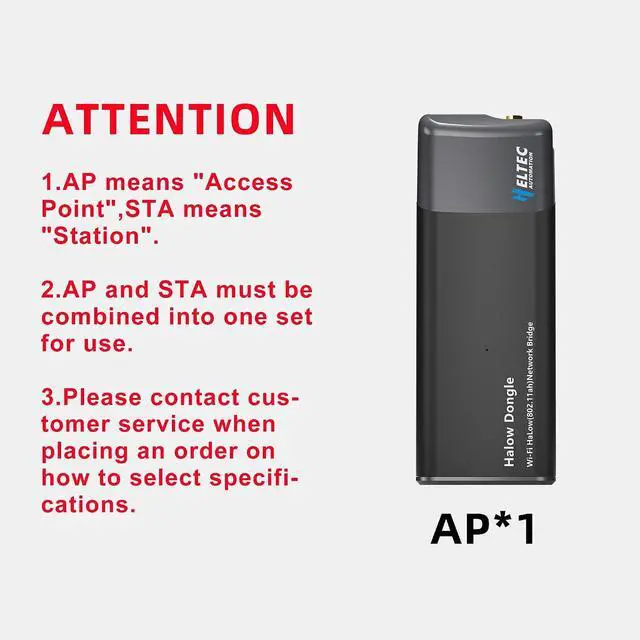

Wi-Fi HaLow Dongle IEEE 802.11ah Protocol 1km Ultra-Long-Range Wi-Fi or Ethernet Cable Lower Power Consumption Wireless Network Bridge 902-928MHz (AP Mode-1Pc)
- What is HaLow Dongle: It is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities. Just like a type of ultra-long-range Wi-Fi.
- Flexible and convenient: It seamlessly integrates with traditional Wi-Fi networks and is designed for ease of deployment. Whether for home use or IoT development, this device can drastically reduce wiring costs while enhancing networking flexibility.
- Application scenarios: Simple configuration process, and versatile operating modes make it an excellent choice for a wide range of applications. Such as, Remote Locations and Outdoor Connectivity, Home Networking and Smart Home Applications etc.
- Four bandwidth modes: It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5Mbps@8M.
- Operating frequency: 902-928MHz. Utilizing Wi-Fi HaLow technology and adhering to the IEEE 802.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The specifications of AP and STA-1Pair have been upgraded to V2, with a transmission power of 27 ± 1 dBm.
MCU MT7628 Wi-Fi IEEE 802.11b/g/n Wi-Fi HaLow IEEE 802.11ah Frequency: 902-928MHz; Max. TX power: 21±1 dBm(V1),27±1dBm(V2); Bandwidth: 1/2/4/8 MHz; Max Data Rate: 32.5 Mbps @ 8 MHz ANT Interface SMA female socket Ethernet RJ45(10/100M)USB-C Operating Condition Temperature: -20 ~ +70 Humidity: 10%90%( no-condensing) Power USB-C, 5V Consumption 300mA(Typical) Ingress Protection Without waterproof treatment Shell material Aluminum Alloy, Plastic Weight 53.5g (Antenna included),40g(Antenna excluded) Dimensions 87.5*32.5*20mm(Antennaexcluded)
MCU MT7628 Wi-Fi IEEE 802.11b/g/n Wi-Fi HaLow IEEE 802.11ah Frequency: 902-928MHz; Max. TX power: 21±1 dBm(V1),27±1dBm(V2); Bandwidth: 1/2/4/8 MHz; Max Data Rate: 32.5 Mbps @ 8 MHz ANT Interface SMA female socket Ethernet RJ45(10/100M)USB-C Operating Condition Temperature: -20 ~ +70 Humidity: 10%90%( no-condensing) Power USB-C, 5V Consumption 300mA(Typical) Ingress Protection Without waterproof treatment Shell material Aluminum Alloy, Plastic Weight 53.5g (Antenna included),40g(Antenna excluded) Dimensions 87.5*32.5*20mm(Antennaexcluded)
