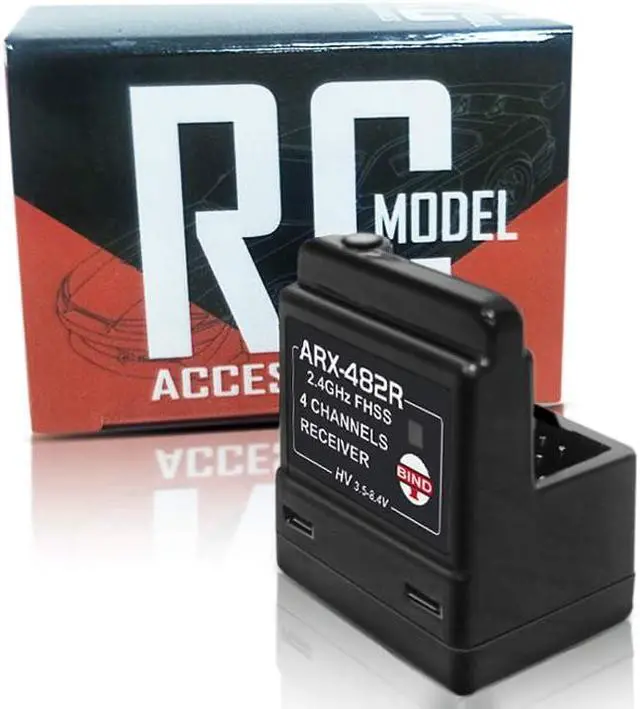

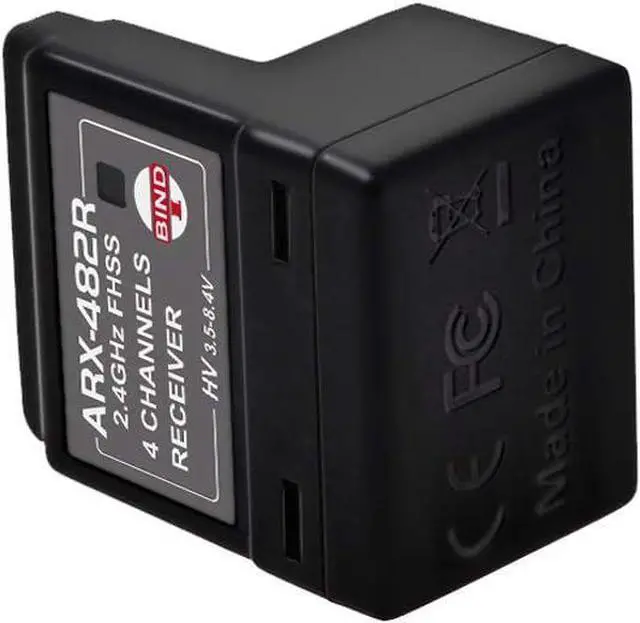

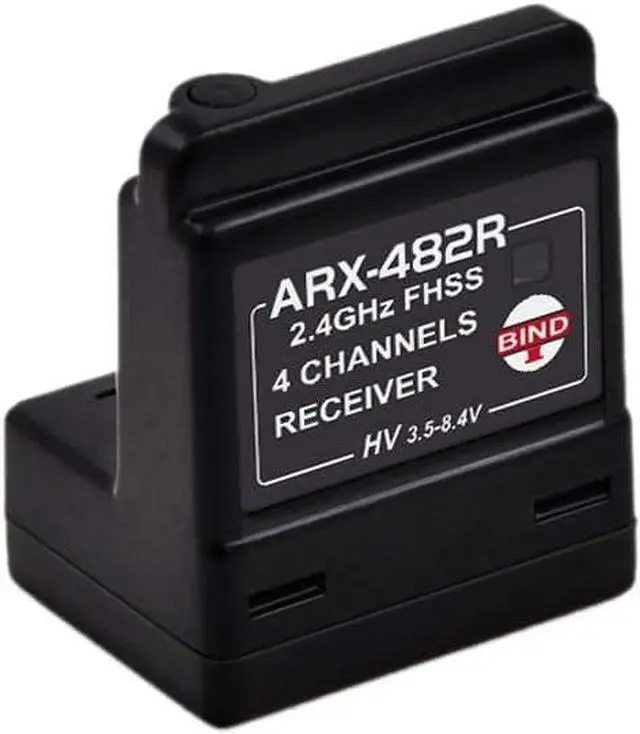

ARX-482R 4CH FHSS Internal Antenna Receiver Compatible with FH3/FH4T (ARX-482R)

ARX-482R 2.4Ghz 4CH Vertical Type FHSS Compatible Receiver
Specification
Operating Voltage: 3.5V8.4V
Dimension: 23.6×18.4×28.4mm
Weight: 7.3g
No. Of Channels: 4CH
PWM Mode: Normal/ SHR/ SSR Compatibility Compatible with SANWA FH3/FH4T remote control system.
Suitable for remote control M12, M11X, EXZES X, MT-4, GEMINI X, MT-S, MT-4S, M12S, M17.


Feature
1. Bidirectional communication system, monitor the receiver voltage by transmitter in real time.
2. Compatible stabilizing voltage, operating voltage can up to 1-2s lipo, sudden low voltage wont be out of control.

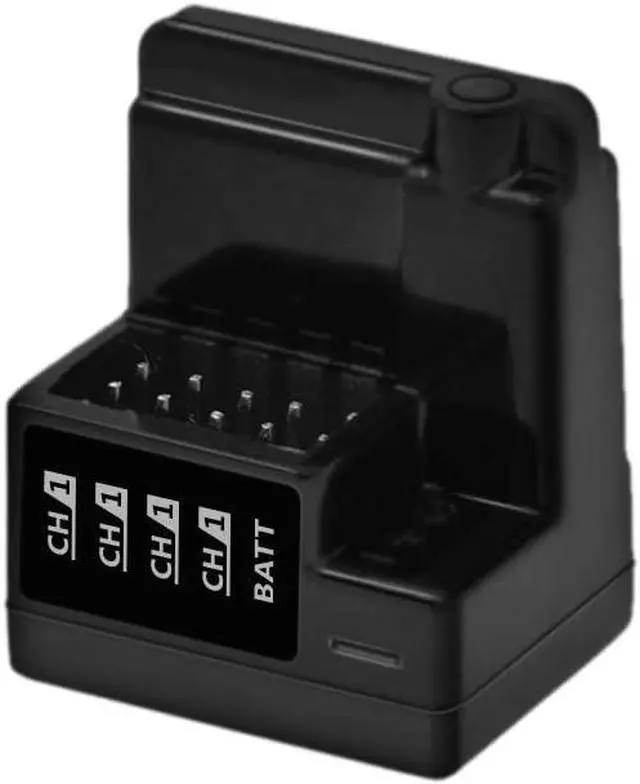

3. High sensitivity built-in antenna, full 4CH output + BAT port suitable for all kinds of remote control cars, simulation rock crawlers.
4. L-shape design, small size to save more space for rc car.


Bind Procedure
1. Turn on the transmitter, get to the SYSTEM menu and select BIND interface and select FH3/FH4T, then press "ENTER" to wait receiver to bind in.
2. Pressing and holding the "SET" button of receiver firstly and then power it on, and then the blue LED on the receiver will flash slowly. Press and hold the SET button for 2 seconds then release, The LED will flash rapidly and then turn off.
3. Press "ENTER" on the BIND interface of the transmitter when the LED on the receiver turn off. the LED will be solid, indicating binding process is successful.
4. Please repeat the above procedure if binding is failed. Or check out the binding video on the images page.
