Industrial Gigabit PoE++ Injector Hardened IEEE802.3at/bt 95W PoE Adapter with 12-48VDC Input DIN-Rail and Wall Mount
- PoE output: 95W Max.
- PoE Standard: IEEE802.3 af/at/bt.
- Support 10/100/1000 Base-T, DIN-Rail / Wall-mount installation.
- Industrial Grade PoE injector. Operating temperature: -40 to 80 ( -40 to 176).
- The PoE adapter can be used in harsh environment, with design of 6KV lightning protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

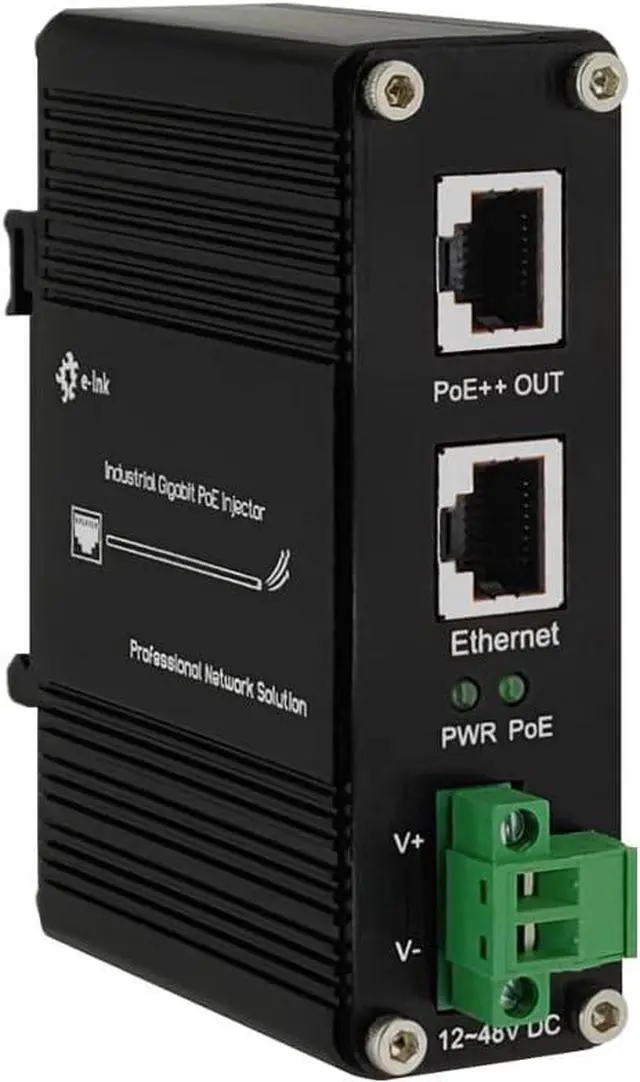

Elenzk Hardened Industrial Gigabit PoE++ Injector 12-48VDC Input with DIN-Rail and Wall Mount Connecting The IEEE802.3 af/at/bt PoE Device (95W)
Overview:

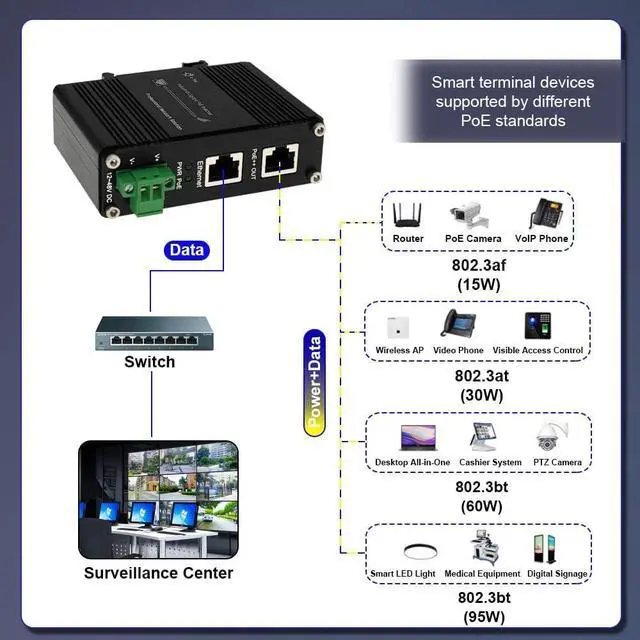

The 95W PoE Injector is an Industrial Gigabit High PoE Injector allows you to connect the IEEE 802.3 af/at/bt PoE device such as camera and access point with a non PoE LAN switch within 100m. Both the Ethernet ports support 10/100/1000Base-TX and are compliant with IEEE 802.3ab. And it supports a wide 1248VDC input range for various applications.
Features:
-Over Ethernet Output Port(Data + Power)
-Support 95W Power over Ethernet (PoE++) Power Sourcing Equipment
-Support 10/100/1000Base-TX

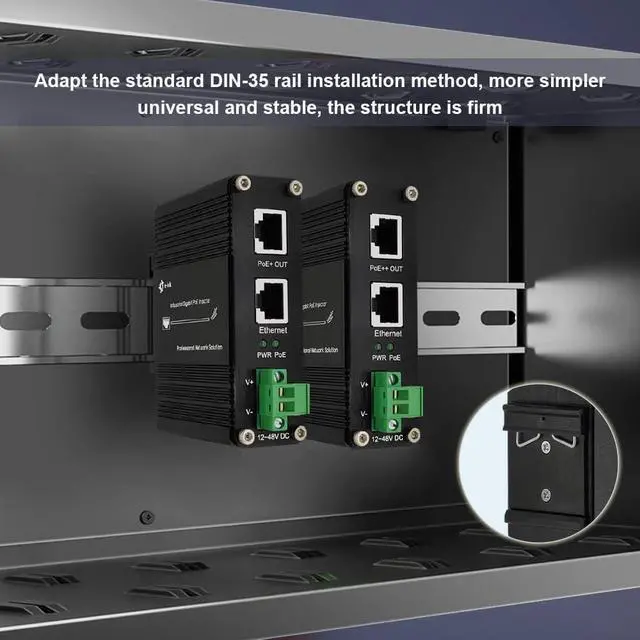

-Support DIN-Rail and Wall-Mount installation
-LED indicators for PoE diagnostics.
Specifications

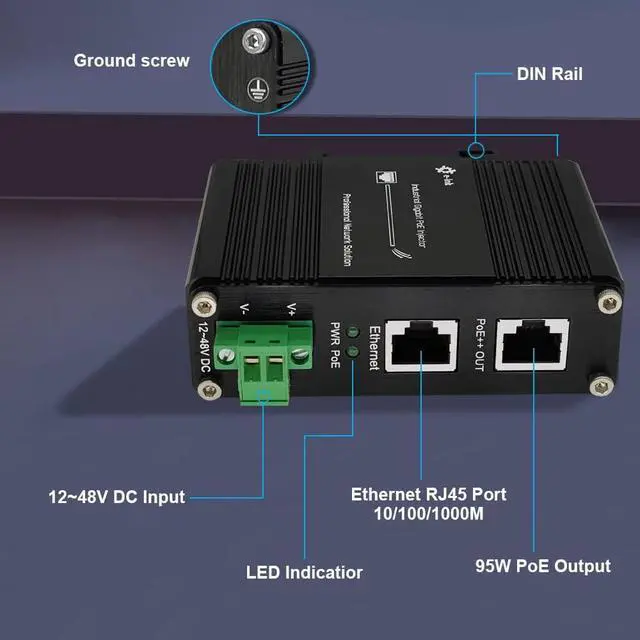

Interface: 2 x RJ-45 (Data-In, Data+PoE Out)
Ethernet Data Rate: 10/100/1000Mbps
Power Input: 12~48VDC(Terminal Block)
Standard: 802.3 af/at/bt, PoE++ 95W
Operating Temperature: -40°C to 80°C
Power PIN Assignment: 1,2,4,5(+) and 3,6,7,8(-)
Transmission Distance: 100m

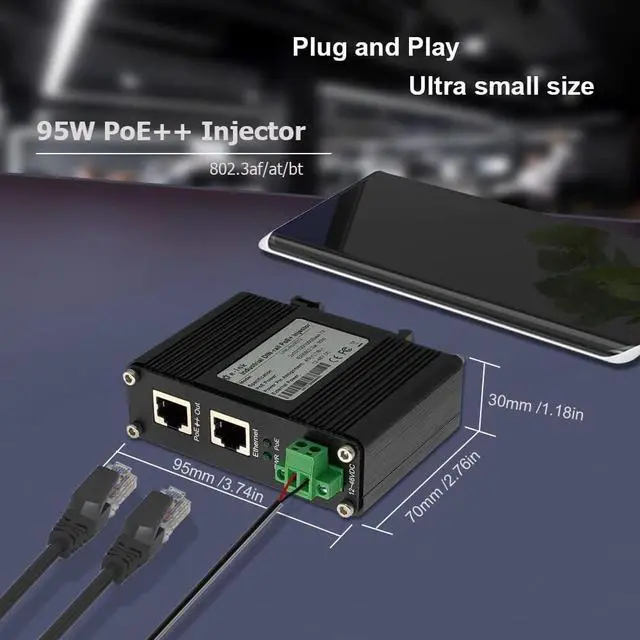

Dimensions (WxDxH): 3.74*2.76*1.18 in
Casing: Aluminum
Package:
1 *EK-001-95W
1 *2Pin Terminal
1 *L-Shaped Wall Mount bracket
1 *User Manual
Note
This PoE injector supports up to 95W output. Actual output depends on the input voltage and current. For full 95W PoE output, a 48V power supply is recommended.
Power Options The Power Supply for PoE injector is to be purchased separately.
Overview:
The 95W PoE Injector is an Industrial Gigabit High PoE Injector allows you to connect the IEEE 802.3 af/at/bt PoE device such as camera and access point with a non PoE LAN switch within 100m. Both the Ethernet ports support 10/100/1000Base-TX and are compliant with IEEE 802.3ab. And it supports a wide 1248VDC input range for various applications.
Features:
-Over Ethernet Output Port(Data + Power)
-Support 95W Power over Ethernet (PoE++) Power Sourcing Equipment
-Support 10/100/1000Base-TX
-Support DIN-Rail and Wall-Mount installation
-LED indicators for PoE diagnostics.
Specifications
Interface: 2 x RJ-45 (Data-In, Data+PoE Out)
Ethernet Data Rate: 10/100/1000Mbps
Power Input: 12~48VDC(Terminal Block)
Standard: 802.3 af/at/bt, PoE++ 95W
Operating Temperature: -40°C to 80°C
Power PIN Assignment: 1,2,4,5(+) and 3,6,7,8(-)
Transmission Distance: 100m
Dimensions (WxDxH): 3.74*2.76*1.18 in
Casing: Aluminum
Package:
1 *EK-001-95W
1 *2Pin Terminal
1 *L-Shaped Wall Mount bracket
1 *User Manual
Note
This PoE injector supports up to 95W output. Actual output depends on the input voltage and current. For full 95W PoE output, a 48V power supply is recommended.
Power Options The Power Supply for PoE injector is to be purchased separately.
