Proxicast 5-8 dBi 4G/5G External Magnetic High Gain Cell Antenna Compatible with Cisco, Cradlepoint, Netgear, Pepwave, MoFi, Digi, Sierra and Other Routers & Modems with SMA Connectors ANT-006-SMA-2PK
- BOOSTS 4G & 5G Signal Strength and Upload / Download Data Speeds and Increases Range on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers
- COMPATIBLE with Any Brand of Modem, Router, Gateway or Amplifier with an SMA Antenna Jack
- ENABLES Antenna to be Positioned for Maximum Signal Reception (more bars)
- CONNECTS Directly to Device's External Antenna Port. Use 2 to get MIMO Antenna Diversity / Improved Signal Quality.
- SUPPORTS all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (AT&T, Verizon). Also Compatible with FirstNet and CBRS Systems.
- NOT INTENDED FOR USE ON MOVING VEHICLES
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This high-efficiency 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 8 dBi of gain and supports all sub-6 GHz frequency bands used by cellular carriers worldwide.
Includes 3 inch magnetic base with 6.5 ft of LMR100 low-loss coax cable terminated with an SMA Male connector.
The SMA Male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart choice for applications where extra gain is required.
Universal Compatibility
8 dBi Peak Gain
600 - 6000 MHz Frequency Coverage
Omni Directional Radiation Pattern

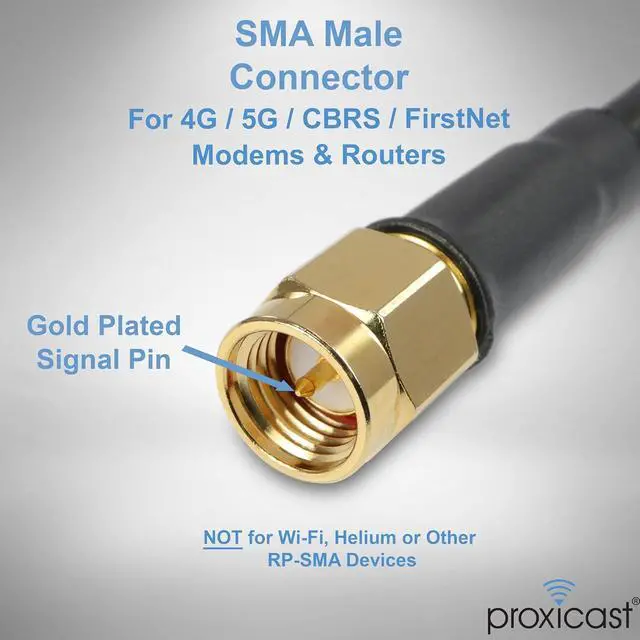

3in Magnetic Base with 6.5 ft of LMR100 and SMA Male Connector
Integrated Ground Plane
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA antenna jacks.
Our SMA Swivel Connector hinge provides the ultimate in positional flexibility. Rotate and flip it to find the best signal.
Need to position the antenna in a better location? Our Premium Magnetic Base (ANT-120-MB3) with 6.5 ft of LMR100 low-loss coaxial cable is included.
AT&T Wireless
Verizon wireless
T-Mobile
Rogers
Bell Mobility
Telus
Telcel
Digicel
Movistar
Claro
Cradlepoint COR IBR, AER, ARC, MBR series
Pepwave Balance, Max series
MoFi, Teltonika, KuWFi, Yeacomm, InHand models
CalAmp, CDM, LMU, Fusion, Vanguard series
Digi Transport, Connectport, ConectWan & EX series
Cisco Catalyst Cellular Gateways
Red Lion Sixnet IndustrialPro
NOT for use with WI-FI (RP-SMA) devices
Frequency Range: 600-6000 MHz Impedance: 50 ohms Peak Gain: 5-8 dBi (frequency dependent) Radiation: Omni Ground Plane: Integrated Connector: SMA Male (plug) Material: Polycarbonate /Steel/ Brass/ Rubber- RoHS complaint Operation Temp: -30C to +75C Coax Cable: 79 inches LMR100 Low Loss Overall Height: 13.25 inches Diameter Base: 3 inches Diameter Antenna: 0.51 inches
Position away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objects
Do not use a Y cable to connect 2 antenna leads to 1 modem port
Do not extend coax cables
Fully tighten coax connectors to modem antenna ports
Stand 3+ feet away from antenna when testing
Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

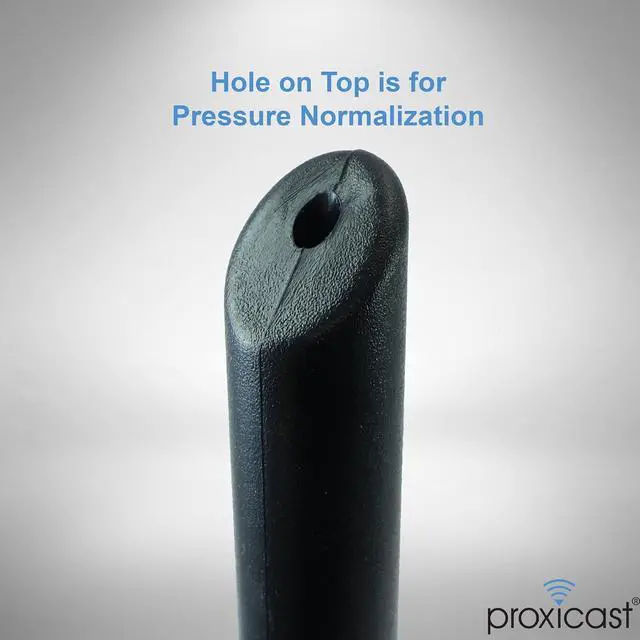

Small hole on the top of the antenna is by design and is not a defect.
High gain antennas are appropriate when signal strength is below 60%.
Not intended for permanent outdoor use.
See More Proxicast 4G/5G/FirstNet/CBRS Universal Wide-Band 8 dBi Omni-Directional Antenna + Magnetic Base for Modems | Routers | Amplifiers Replacement for Standard Low Gain Antennas Key Features 4G LTE, 5G, FirstNet & CBRS 3 Way Hinge Magnetic Base Included Compatible with All 4G & 5G Cellular Networks Worldwide Including: Compatible with any 4G/LTE or 5G Router or Modem with External SMA Antenna Jacks Including: Specifications For Best Results
Includes 3 inch magnetic base with 6.5 ft of LMR100 low-loss coax cable terminated with an SMA Male connector.
The SMA Male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart choice for applications where extra gain is required.
Universal Compatibility
8 dBi Peak Gain
600 - 6000 MHz Frequency Coverage
Omni Directional Radiation Pattern
3in Magnetic Base with 6.5 ft of LMR100 and SMA Male Connector
Integrated Ground Plane
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA antenna jacks.
Our SMA Swivel Connector hinge provides the ultimate in positional flexibility. Rotate and flip it to find the best signal.
Need to position the antenna in a better location? Our Premium Magnetic Base (ANT-120-MB3) with 6.5 ft of LMR100 low-loss coaxial cable is included.
AT&T Wireless
Verizon wireless
T-Mobile
Rogers
Bell Mobility
Telus
Telcel
Digicel
Movistar
Claro
Cradlepoint COR IBR, AER, ARC, MBR series
Pepwave Balance, Max series
MoFi, Teltonika, KuWFi, Yeacomm, InHand models
CalAmp, CDM, LMU, Fusion, Vanguard series
Digi Transport, Connectport, ConectWan & EX series
Cisco Catalyst Cellular Gateways
Red Lion Sixnet IndustrialPro
NOT for use with WI-FI (RP-SMA) devices
Frequency Range: 600-6000 MHz Impedance: 50 ohms Peak Gain: 5-8 dBi (frequency dependent) Radiation: Omni Ground Plane: Integrated Connector: SMA Male (plug) Material: Polycarbonate /Steel/ Brass/ Rubber- RoHS complaint Operation Temp: -30C to +75C Coax Cable: 79 inches LMR100 Low Loss Overall Height: 13.25 inches Diameter Base: 3 inches Diameter Antenna: 0.51 inches
Position away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objects
Do not use a Y cable to connect 2 antenna leads to 1 modem port
Do not extend coax cables
Fully tighten coax connectors to modem antenna ports
Stand 3+ feet away from antenna when testing
Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
Small hole on the top of the antenna is by design and is not a defect.
High gain antennas are appropriate when signal strength is below 60%.
Not intended for permanent outdoor use.
See More Proxicast 4G/5G/FirstNet/CBRS Universal Wide-Band 8 dBi Omni-Directional Antenna + Magnetic Base for Modems | Routers | Amplifiers Replacement for Standard Low Gain Antennas Key Features 4G LTE, 5G, FirstNet & CBRS 3 Way Hinge Magnetic Base Included Compatible with All 4G & 5G Cellular Networks Worldwide Including: Compatible with any 4G/LTE or 5G Router or Modem with External SMA Antenna Jacks Including: Specifications For Best Results
