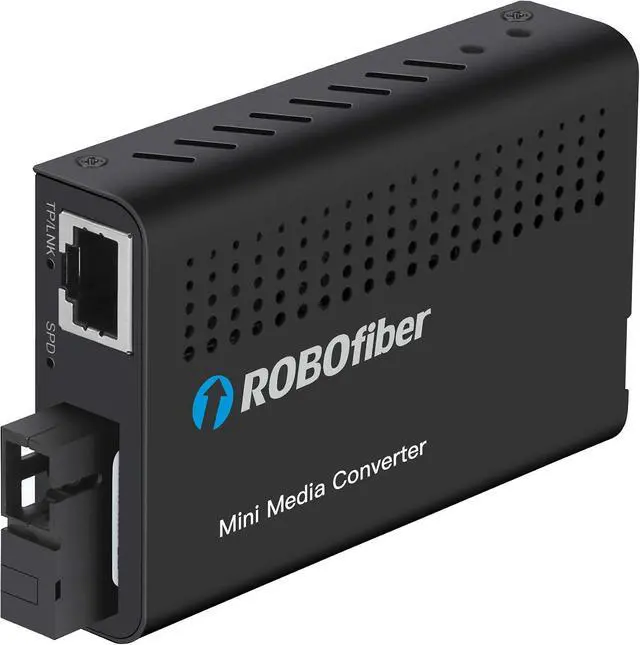

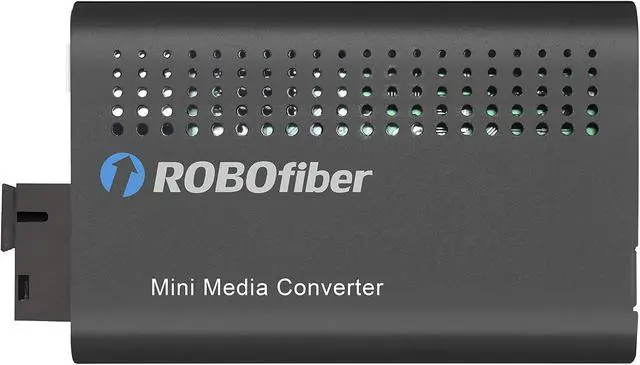

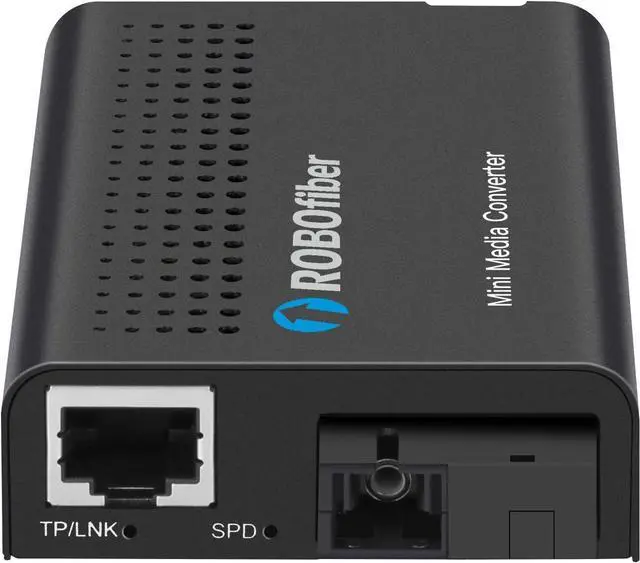

LFC-100-SC20A Fast Ethernet to BiDi WDM SC, 20Km, T:1310/R:1550nm singlemode Single Strand Fiber Media Converter, LFP and DIP sw Settings

10/100Base-Tx to BiDirectional (WDM) single strand fiber media converter with auto-negotiation and auto MDI/MDIX, forwards 2048 bytes (Max.) packets in switch mode and 9k bytes in converter mode (fiber & copper port at the same speed, transparent)
DIP switch function for: UTP speed (10/100M), LPF enable / disable, Converter mode enable / disable and Half/Full Duplex flow; Supports Q in Q double tagged frame transparent and IEEE 802.1Q Tag VLAN pass thru; aggregates into LFC-CH12 series chassis available with various power supplies
Copper interface: RJ45 copper IEEE 802.3 10Base-T and 802.3u 100Base-TX compliant, supports 10/100BaseTX, Full, Half duplex copper TP cable 4 pair Cat. 5, 5e UTP; Optical interface: Single strand BiDi SMF, SC simplex, Tx:1310nm/Rx:1550nm, 20Km reach, type A (must be matched with a B type converter using Tx:1550/Rx:1310nm optics)
Front LEDs: PWR, Fiber Link, TP Link, Speed; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, included in package; Temperature: 0~50°C (Operating); -30~70°C (Storage); Humidity: 10-85% non condensing (Operating); 0-90% (Storage), Consumption: less than 4W
Dimensions(WxDxH): 60mm x 90mm x 20mm, Weight: 180g (without AC adapter), Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001, MTBF: 65,000 hours
