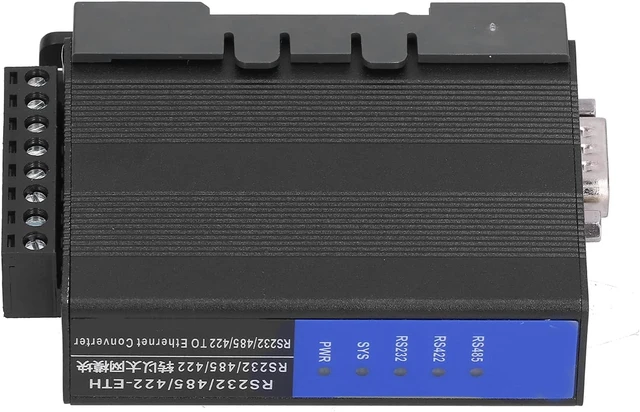

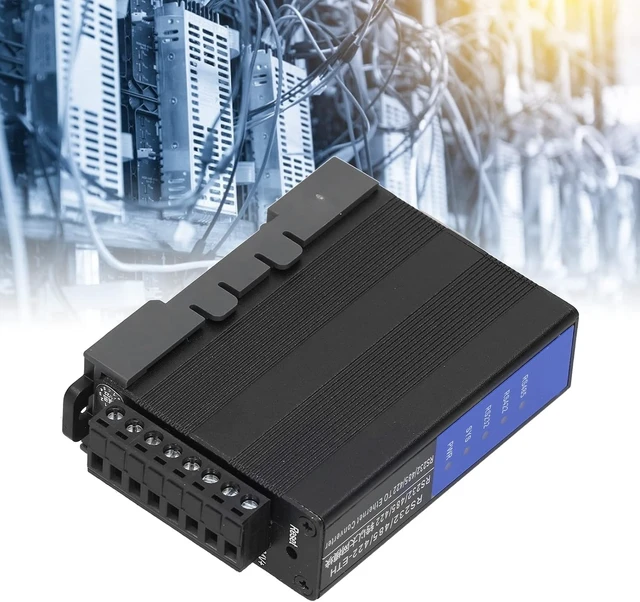

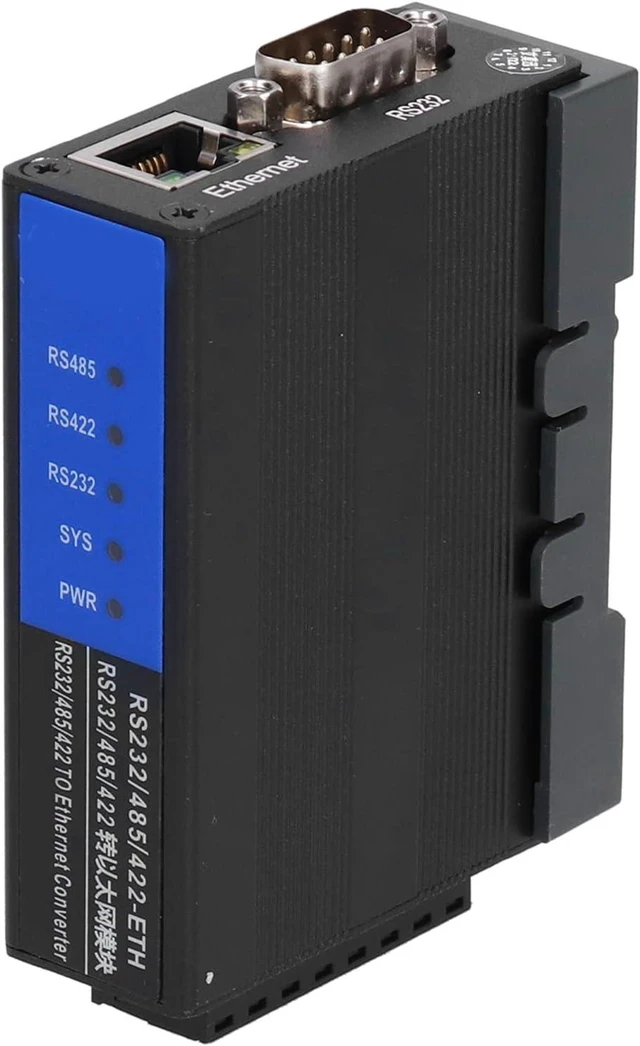

RS232/485/422 to Ethernet Serial Device Server Data Communication Industrial Module DC 9V24V

Item Type: RS232/485/422 to Ethernet Serial Device Server
Material: Aluminum alloy
Purpose: Building automation, security, traffic control, electricity, factories, mines, railways
COM1 (RS485 communication parameters)
Support Function:

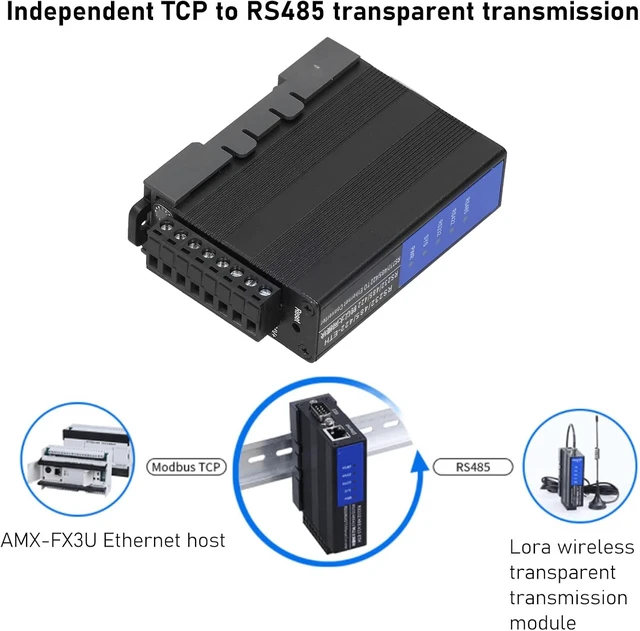

485 port and network port transparent transmission

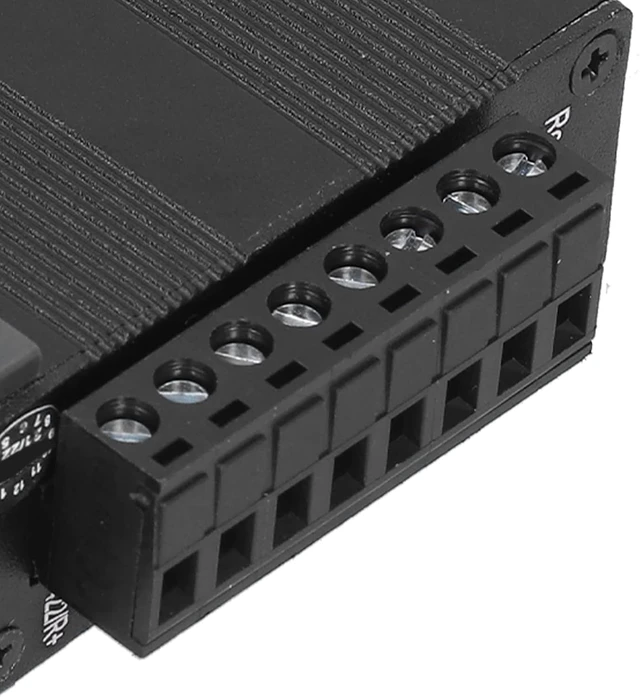

Interface Type: RS485, screw terminal
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: 8-bit data, 1-bit stop, no parity (configurable)
Transmission Distance: Approx. 1200m / 3937ft
COM2 (RS422 communication parameters)
Support Function: TCPtoRS422 transparent transmission
Interface Type: RS485, screw terminal
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: Default: 8-bit data, 1-bit stop, no parity (configurable)
Transmission Distance: Approx. 1200m / 3937ft, when the baud rate is 9600
COM3 (RS232 communication parameters)
Support Function: TCPtoRS232 transparent transmission

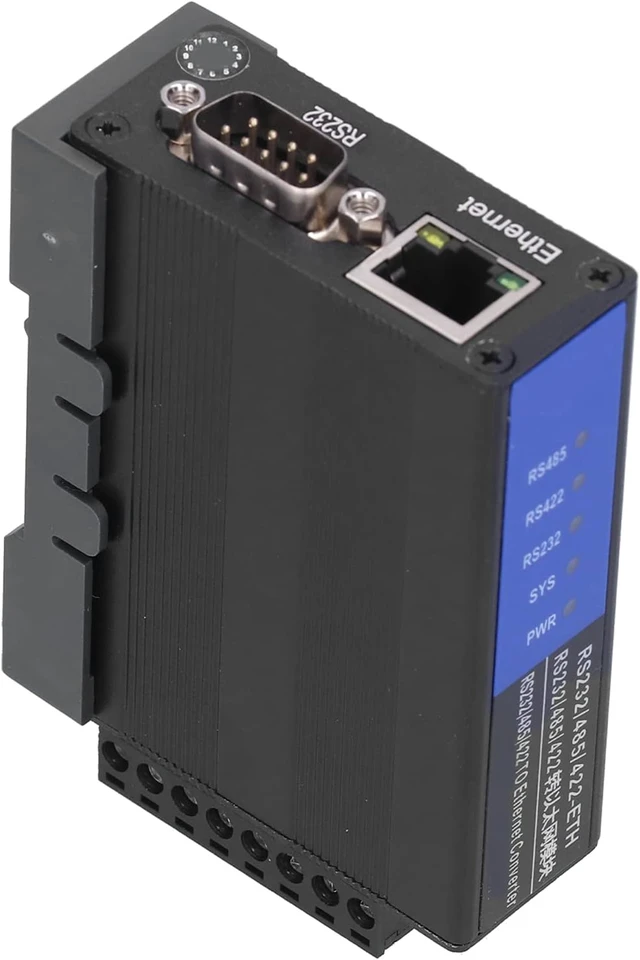

Interface Type: RS232, DB9 terminal male
Baud Rate: 9600-115200 (default baud rate is 9600)
Communication Format: 8-bit data, 1-bit stop, no parity (configurable)
Ethernet Interface Parameters:
Interface Form: RJ45
Communication Protocol: TCPHTTP;
Speed: 10Mbps; full duplex
PTCP Parameters:
Default IP: 192.168.1.15
Default Port: 502
Power Parameters:
Working Voltage: DC 9V-24V; with anti-reverse connection protection
Power Consumption: 0.5W-2W
Working Environment:
Working Temperature: -20-70
Storage Temperature: -40-85

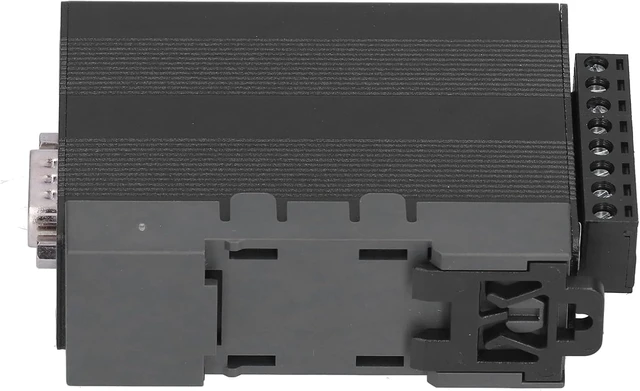

Installation Method: Rail

Package List
1 x

RS232/485/422 to Ethernet Serial Device Server
Note:
1. Do not place the product in an environment that is too corrosive, humid and high temperature!
2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage!
