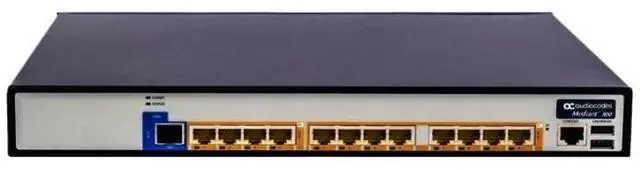

Audiocodes HA-pair of Mediant 12-Ports RJ45 800B Base VoIP Gateway M800B-ESBC/R

Product Information

• Part Number: M800B-ESBC/R
• Manufacturer: AudioCodes
• Product Name: AudioCodes HA-pair of Mediant 12-Ports RJ45 800B Base VoIP Gateway
• Model Series: Mediant 800B
• Product Type: VoIP Gateway / Enterprise Session Border Controller (ESBC)
• Port Configuration: 12 x RJ45 ports (for FXS/FXO/BRI/PRI interfaces - specific configuration depends on purchased licenses/cards)
• High Availability: HA-pair (Redundant configuration)
• Base Model: Yes

Product Description

The AudioCodes M800B-ESBC/R is a high-availability (HA) pair of Mediant 800B VoIP Gateways, designed to provide robust and scalable voice connectivity solutions for small-to-medium enterprises. This bundled solution includes two Mediant 800B units configured for redundancy, ensuring continuous voice service even in the event of a single unit failure. The Mediant 800B is a compact, cost-effective, and modular media gateway that can also function as an Enterprise Session Border Controller (ESBC). It offers flexible connectivity options with 12 RJ45 ports, supporting various analog (FXS/FXO) or digital (BRI/PRI) interfaces depending on the installed modules and licenses. Its capabilities include voice routing, transcoding, security (when used as ESBC), and interoperability with diverse VoIP and TDM networks. This 'Base' model provides the core hardware for these functions.

Product Specifications

• Chassis Type: 1U Rack-mount
• Analog Ports: Modular, up to 12 FXS/FXO ports (requires FXS/FXO modules)
• Digital Ports: Modular, up to 4 BRI ports or 1 PRI/E1/T1 port (requires BRI/PRI modules)
• Ethernet Ports: 2 x 10/100/1000Base-T (Gigabit Ethernet) for network connectivity
• Voice Processing: Voice activity detection (VAD), Comfort noise generation (CNG), Echo cancellation (G.168), Adaptive jitter buffer, Packet loss concealment
• Signaling Protocols: SIP, H.323, MGCP, Megaco (H.248)
• Security Features (ESBC): Topology hiding, DoS/DDoS protection, encryption (SRTP/TLS), IP firewall, access control lists (ACLs)
• Transcoding: Supports various codecs (G.711, G.729, G.723, G.722, Opus, etc. - capacity depends on license)
• Management: Web-based GUI, SNMP, AudioCodes Element Management System (EMS), CLI
• Redundancy: Active/Standby (for HA-pair)
• Power Supply: Internal AC power supply (redundant power options typically available with HA bundle or as separate purchase)
• Dimensions (per unit): 43.4 cm (W) x 27.5 cm (D) x 4.3 cm (H) (17.1 in x 10.8 in x 1.7 in)
• Weight (per unit): Approx. 2.7 kg (6 lbs)
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity: 5% to 90% non-condensing

Package includes:
Audiocodes M800B-ESBC/R,
Mounting bracket,
Power Cable,
Manual
_{Product may differ from image shown}
