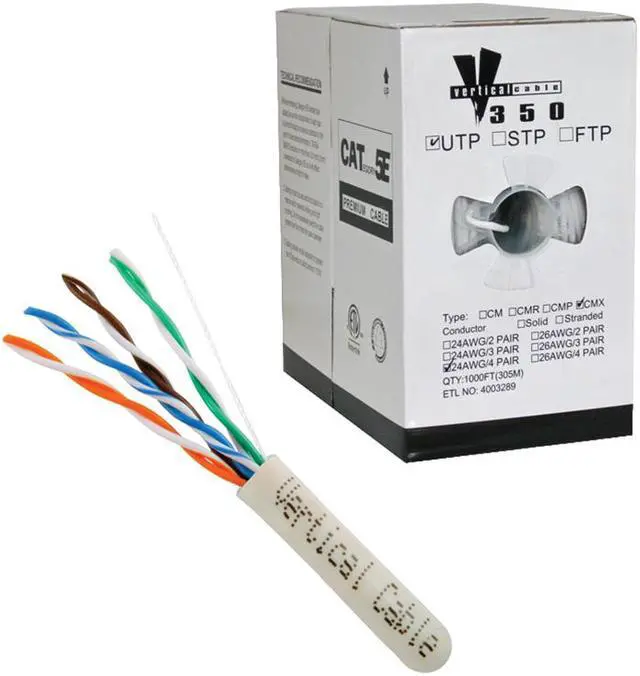

CAT5E CMX Outdoor 24 AWG 8 Conductor Solid Bare Copper White 1000' ft Cable Wire

High-Performance Data Cable
350MHz Bandwidth for Data Applications
24AWG Solid Copper Conductors
Easily Identified Color-Striped Pairs
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
CAN/CSA -C22.2 No. 214
Suitable for 10/100/1000Base-T
Outdoor UV Rated Jacket
ETL Listed, RoHS Compliant
1000ft Pull Box
Compatible with outdoor above ground
Authorized Dealer

CAT5E Outdoor Cable CMX UV Rated.pdf

Specifications
Technical Data
Rated Temperature: -40 ~ 75 ºC
Rated Voltage: 30V
Product Standard Certification: CMX
Reference Standard: TIA/EIA 568 & ISO/IEC 11801

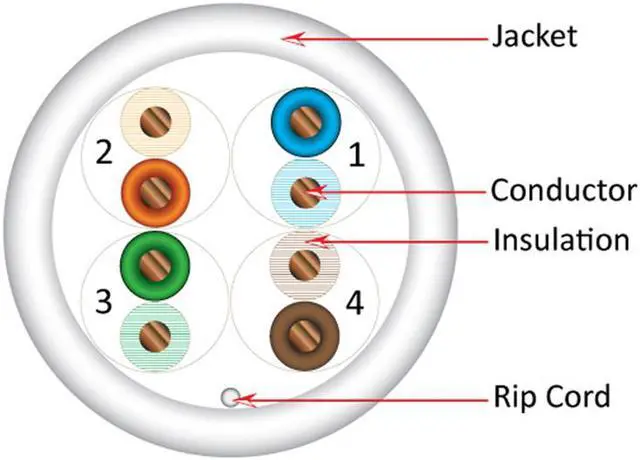

Conductor: Solid Bare Copper
Conductor Size: 24 AWG
Insulation: PE
Insulation Average Thickness: 0.205mm
Insulation Min. Point Thickness: 0.190mm
Insulation Diameter (±0.005mm): 0.91
Insulation Twisted Pair Diameter (±0.01): 1.82
Assembly Diameter: 3.80
Jacket (Black): LLDPE (UV)
Jacket Average Thickness: 0.60mm
Jacket Min. Point Thickness: 0.54mm
Jacket Outer Diameter (±0.10mm): 5.10
Rip Cord: Yes

Color Pairs
Pair 1: Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown

Includes
1000ft Pull Box CAT5E Cable
