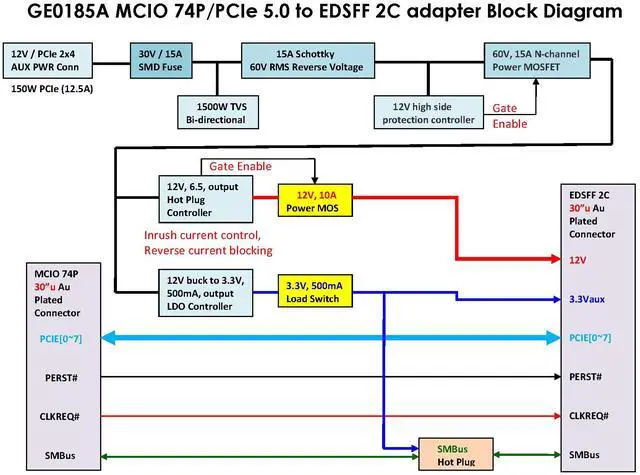

MCIO 74P Male to Male, 100cm Cable & MCIO 74P PCIe 5.0 to EDSFF 2C Adapter

Part Number: GHC74-2257

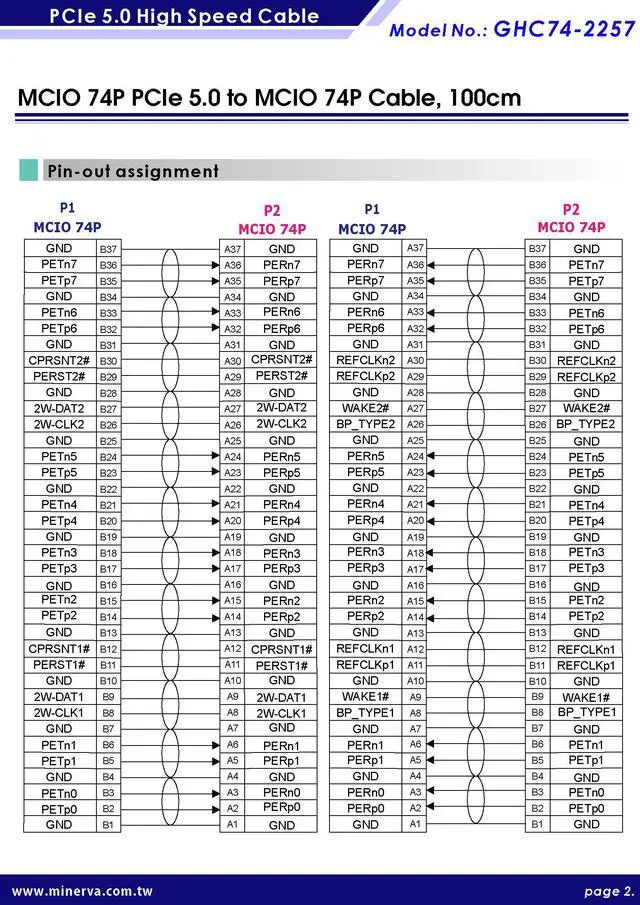

Product Description: MCIO 74P PCIe 5.0 to MCIO 74P Cable

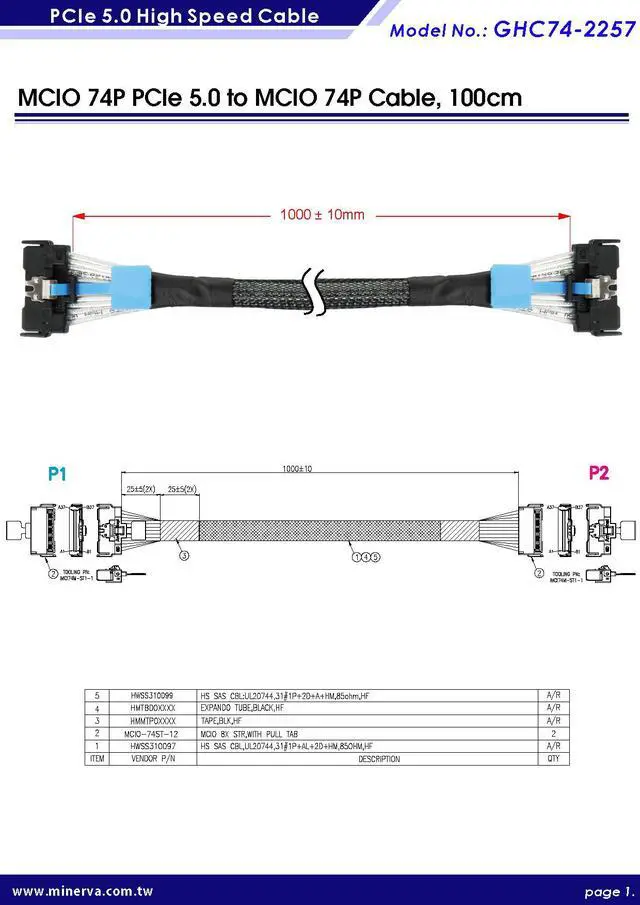

Cable Length: 100CM

#GE0185A

Features:

* MCIO(SFF-TA-1016) to EDSFF(Gen-Z) 2C convert for PCIe 5.0 signals

* Built-in MCIO 74P, 30u Au Plated connector

* Built-in EDSFF(Gen-Z) 2C 30u Au Plated connector

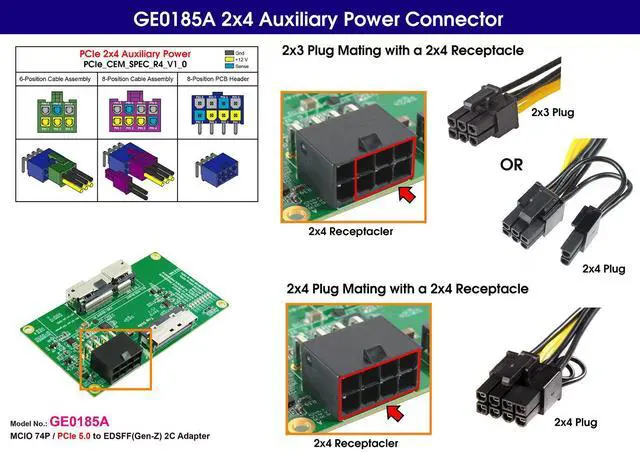

* 2x4 PCIe 12VAUX Power Input

* 12V Input power rail built-in 15A FUSE

* 12V Input power rail with 1500W Bidirectional TVS

* 12V Input power rail built-in 60V, 15A Schottky barrier rectifer

* 12V Input power rail high side controller with 60V, 15A Power NMOS FET

* Built-in 12V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for EDSFF SSD protection

* Built-in 12V output with 30V, 10A N-Channel NexFET power MOSFET, 20m ohm with Reverse current protection

* 12V to 3.3V, 500mA LDO buck Power

* 3.3V, 500mA Load Switch

* LED1 RED LED on indicates 12V input Power Error

* LED2 Green LED on indicates 12V power ready

* LED3 Green LED on indicates 3.3Vaux power ready

* LED4 Green LED on indicates EDEFF 1C DEVICE PRESENC

* LED5 Green LED on indicates EDEFF 2C DEVICE PRESENC

* LED6 Green LED on indicates 3.3Vaux power ready

* LED7 Red LED indicates EDEFF Active

* LED8 Red LED indicates on to off for PCIe PERST# signals implementation

* LED9 Red LED indicates on to off for PCIe CLKREQ# signals implementation

Specifications:

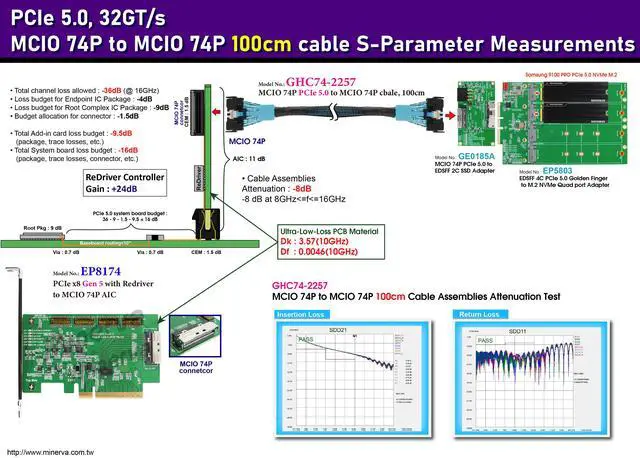

* Support PCI Express Base Specification Rev 5.0

* Compliant with SFF-TA-1016 Rev1.3

* Compliant with SFF-TA-1002 Rev1.5
