Product Option:Color:Yellow.Contact with us if you need other option.
Item Description
This extension card can extend 2 SATA3.0 interfaces, using a native PCI Express 2 bus, the card supports SATA 6Gbps devices compliant with the SATA3.0 specification, and backward compatible SATA 1.5Gbps and 3.0Gbps devices
Features
PCI-E single chip design
Support two SATA 6Gbps ports
Specifications
Comply with PCI Express basic specification Rev 2, downward compatible with Rev 1
Single line (x1) PCI-E throughput is up to 5.0/2.5 Gbps
Conforming to PCI-E Mini Card electrical specification Revision 1.2
Serial ATA (SATA) interface
Compatible serial ATA AHCI (Specification for Advanced Host Controller Interface) specification Rev 1.2
Programming interface Rev1.0 compatible with bus master IDE ATA controller
Support SATA 3 transmission rate up to 6 Gbps
Downward compatibility with SATA-II (3 Gbps) and SATA-I (1.5 Gbps) specification
Support Gen1m and Gen2m SATA PHY
Support the native command queue (NCQ) and port multiplication
Support hot plug on SATA port
system requirements
Suitable for a computer system with a Mini PCI-E slot
Windows 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux
Note: the computer must have MINI PCI-E slot to use.
What's Include
1 x Mini PCI-Express to SATA Host Controller Card(Included the small white Iron Bracket)
Or
1 x Mini PCI-Express to SATA Host Controller Card(Included the small white Iron Bracket)
2 x SATA Cable

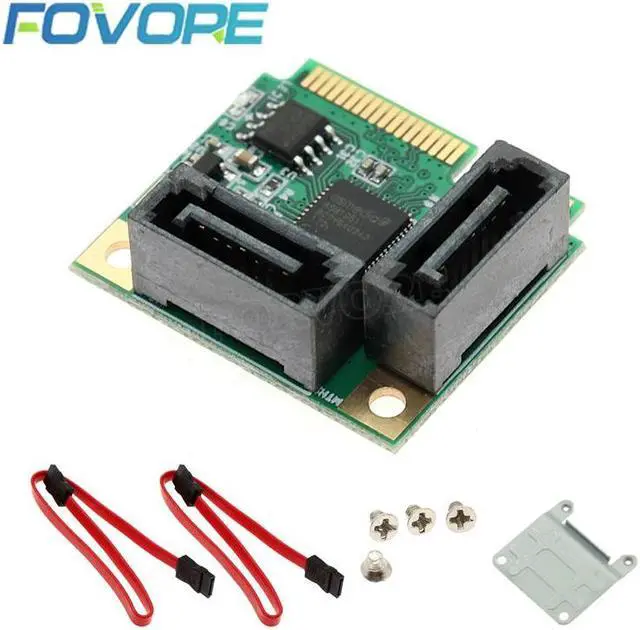

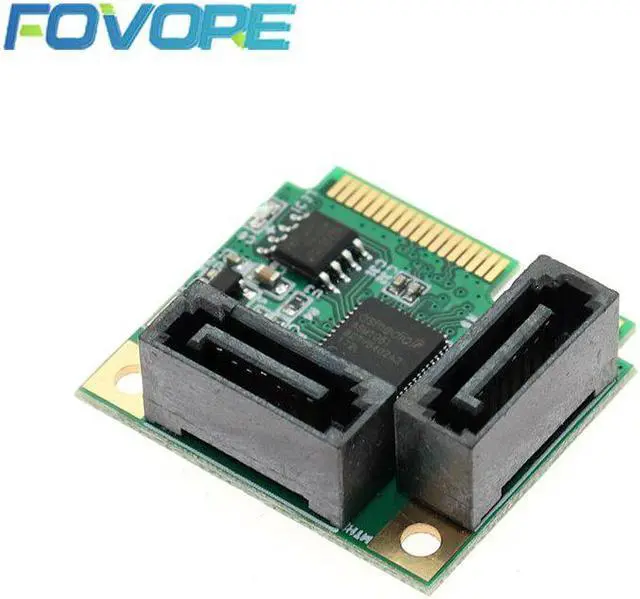

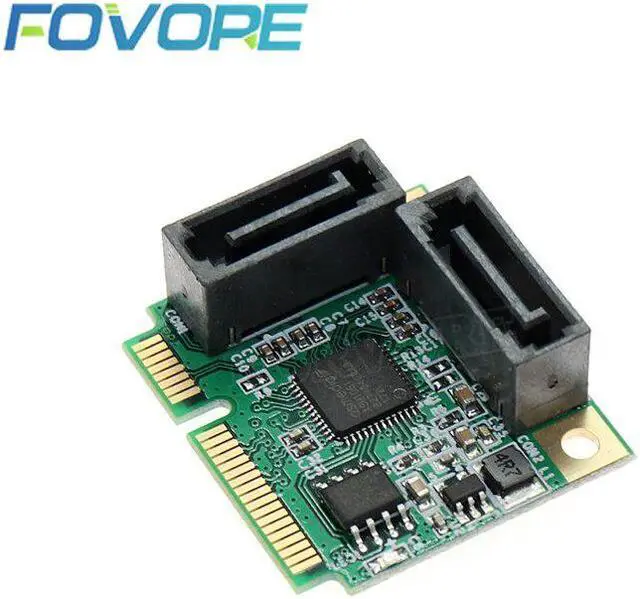

Product pictures
