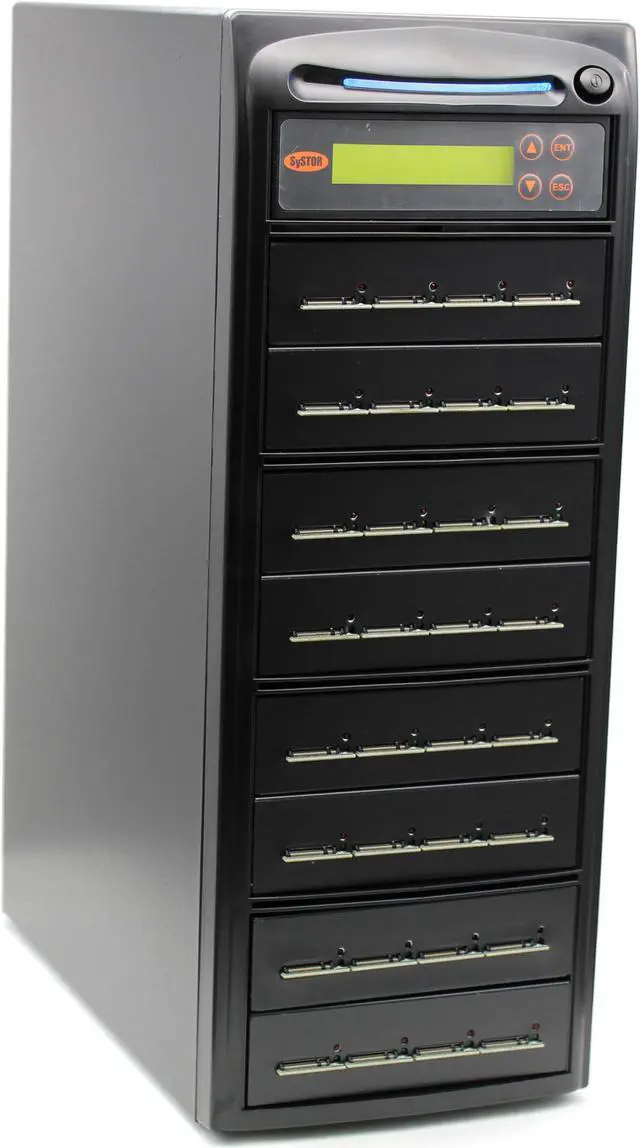

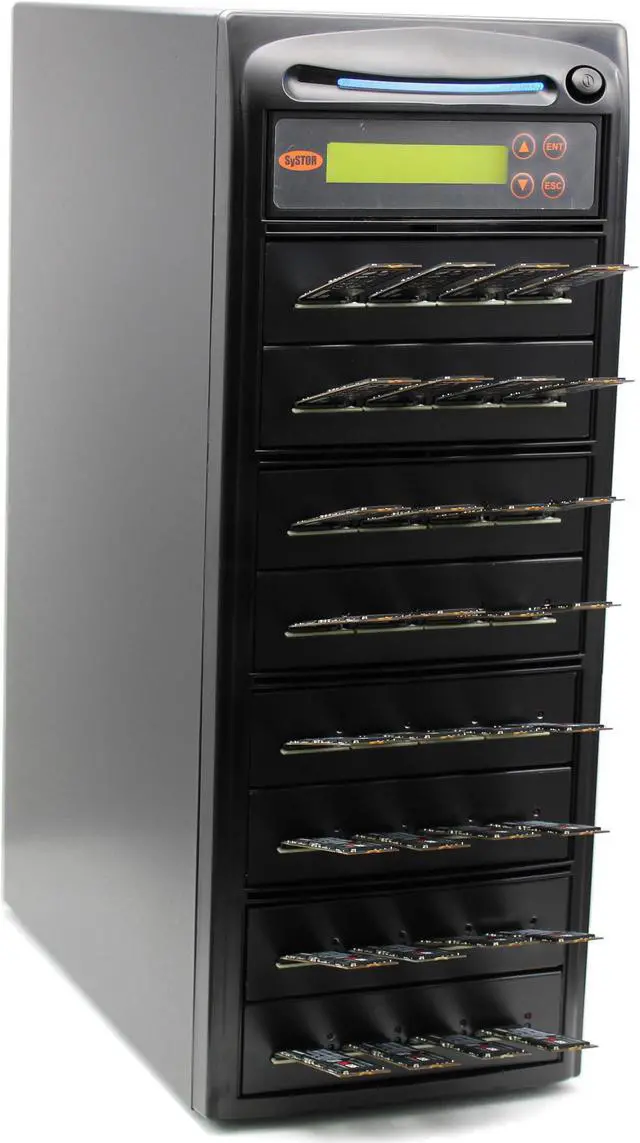

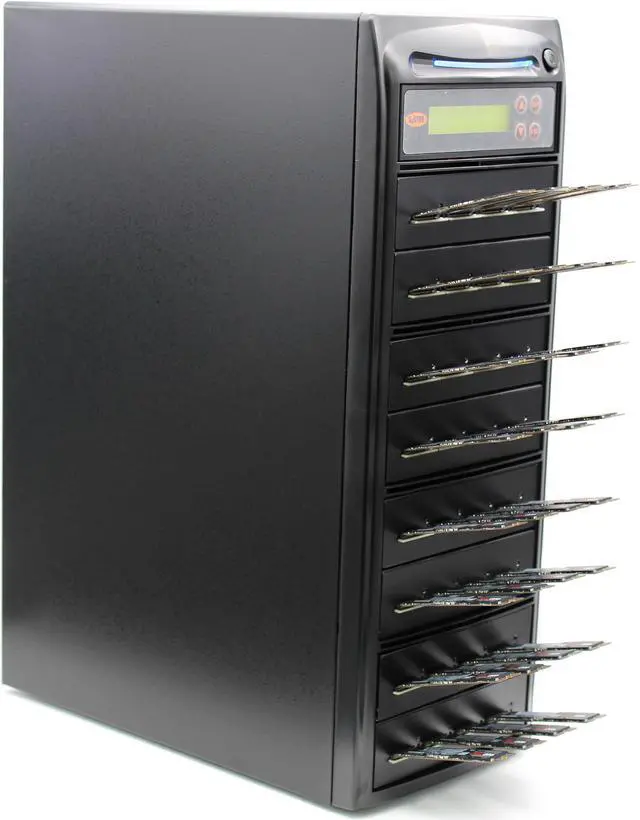

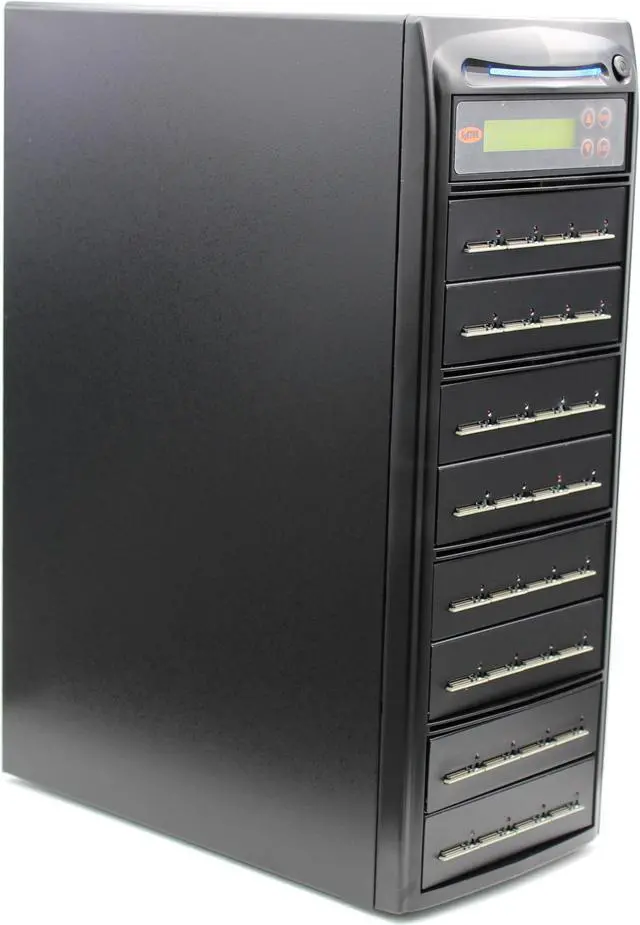

Systor M.2 NVMe PCIe duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) either NVMe M.2 or SATA M.2 drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation even when the number of target devices increase. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media. These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.
* Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.
Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another, such as:
- NGFF SATA M.2 SSD
- NVME PCIe M.2 SSD
- AHCI
Compatible with all sizes of:
- NVME M.2 SSD (Types 2230, 2242, 2260, 2280, 3030, 3042, 3060, 22110, 3080)
- PCIe SSD (full and low profiles)
Performs bit-by-bit cyclic redundancy check (CRC) to ensure copies are identical for every duplication session.
Copies only the data area and skips empty space, reducing the copy duration time.
Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.
Set a selected percentage of source/master capacity to copy.
Erases the device's index table, and only takes a few seconds to complete.
Erases the entire device.
Complies with the erasure standards of the U.S. Department of Defense (DoD) 5220.22-M.
Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.
| Products | ||||||
|---|---|---|---|---|---|---|
| Brand | Systor | Systor | Systor | Systor | Systor | Systor |
| Speed | 24GB/min (400MB/sec) | 36GB/min (600MB/sec) | 24GB/min (400MB/sec) | 18GB/min (300MB/sec) | 12GB/min (200MB/sec) | 9GB/min (150MB/sec) |
| Target size | 1 to 31 | 1 to 9 | 1 to 5 | 1 to 9 | 1 to 23 | 1 to 7 |
| Media supported | NGFF M.2, M.2 NVMe, M.2 SATA | M.2 NVMe, M.2 SATA, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | M.2 NVMe, M.2 SATA, 2.5" HDD SATA, 2.5" SSD SATA | M.2 NVMe, M.2 SATA, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | M.2 NGFF SATA SSD, M.2 NVMe PCIe SSD, AHCI | M.2 NVMe, M.2 SATA, 3.5" HDD SATA, 2.5" HDD SATA, 2.5" SSD SATA |
| M.2 key supported | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key |
| File systems supported | Windows (FAT16, FAT32, FAT64, exFAT, NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX) | Windows (FAT16, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT16, FAT32, FAT64, exFAT, NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX) | Windows (FAT16, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT16, FAT32, FAT64, exFAT, NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX) | Windows (FAT16, FAT32, FAT64, exFAT, NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX) |
| DoD Erase (DoD 5220.22-M Standard) | ||||||
| Hot swap supported | ||||||
| Skip bad sectors | ||||||
| Standalone operation |
