Akuvox S535 Facial Recognition Video Door Phone, 5" Touchscreen, 1080p HDR Camera, Face/Card/PIN/BLE/QR Access, NFC & RFID Reader, Wiegand & RS485, SIP & ONVIF, PoE, IP66 IK08

Overview

The Akuvox S535 is a facial recognition door phone built around a modular architecture, which is the feature that separates it from fixed-function intercoms: a single base unit accepts an expansion module for LTE connectivity, a fingerprint reader, or an induction loop for hearing-aid users. One SKU covers scenarios that would otherwise require three different devices, and a site whose requirements change later doesn't need the panel replaced.

Access is genuinely multi-way. Residents and staff can enter by face, RFID card, PIN, Bluetooth, or QR code, so a building can issue permanent credentials to residents and time-limited QR codes to visitors, contractors, and deliveries from the same panel. The integrated reader handles 13.56 MHz, 125 kHz, and NFC, covering both modern and legacy card stock without a separate reader.

A 5-inch IPS touchscreen sits behind an aluminum front panel, with a 2MP wide-angle camera streaming 1080p at 30fps with HDR. The camera runs permanently and switches to auto-night mode with LED illumination, and because it complies with ONVIF it registers to third-party NVRs as a camera the entry point gets recorded alongside the rest of the system rather than living in a separate silo. SIP v2 compliance means the same is true for the phone side: it integrates with existing SIP infrastructure instead of locking the building into a proprietary platform. Two-way audio uses G.722 wideband with echo cancellation, voice activity detection, and comfort noise generation.

Integration hardware is complete: one relay output, two inputs, Wiegand and RS485 ports, light and motion sensors, and tamper alarm. Deployment tools include auto-provisioning, a web management portal, configuration backup and restore, entry and access log export, and access table import/export meaningful when commissioning more than a handful of doors.

The aluminum panel carries IP66 and IK08 ratings and operates from -40°C to +55°C, mounting flush or on the surface. Power comes from 802.3at PoE or 12V DC.

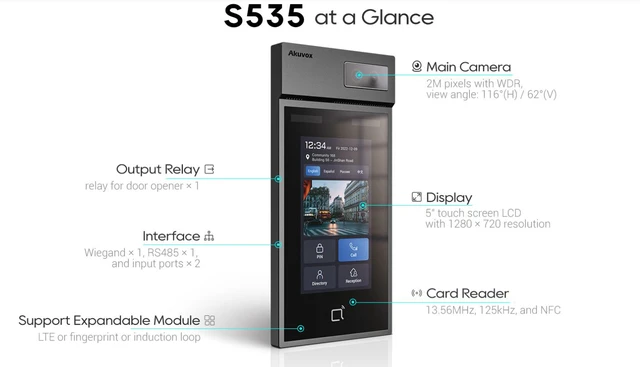

Key Features

Modular Expansion One base unit accepts an LTE, fingerprint reader, or induction loop module, so a single SKU covers multiple deployment scenarios.

Five Ways to Unlock Face, RFID card, PIN, Bluetooth, and QR code, with QR codes suited to time-limited visitor and contractor access.

Facial Recognition Contactless entry with the camera running permanently and auto-night mode LED illumination.

5-Inch IPS Touchscreen Behind an aluminum front panel built for outdoor exposure.

1080p HDR Camera 2MP, 1/2.9" CMOS at up to 30fps with auto-lighting and 0.1 lux minimum illumination.

ONVIF Compliant Registers to third-party NVRs as a camera, so the door is recorded with the rest of the system.

Full SIP v2 Support Integrates with existing SIP infrastructure rather than requiring a proprietary platform.

Wideband Audio G.722 with echo cancellation, voice activity detection, and comfort noise generation.

Triple-Frequency Reader 13.56 MHz, 125 kHz, and NFC in one reader, covering modern and legacy credentials.

Wiegand & RS485 Integrates with existing access control panels and controllers.

Relay and Inputs 1 relay output and 2 inputs, with relays controlled individually by DTMF tones.

Tamper Alarm Plus light sensor and motion sensor.

Deployment Tools Auto-provisioning, web portal, config backup/restore, entry log and access table export/import, packet dump, and system logs.

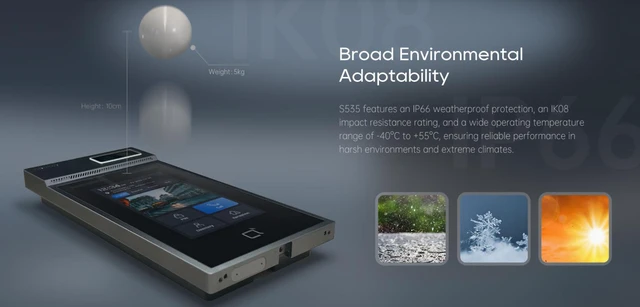

Extreme Temperature Range -40°C to +55°C operation, IP66 water resistance, IK08 impact resistance.

Flexible Mounting Flush-mounted or surface-mounted in a 210 × 100 × 27 mm footprint.

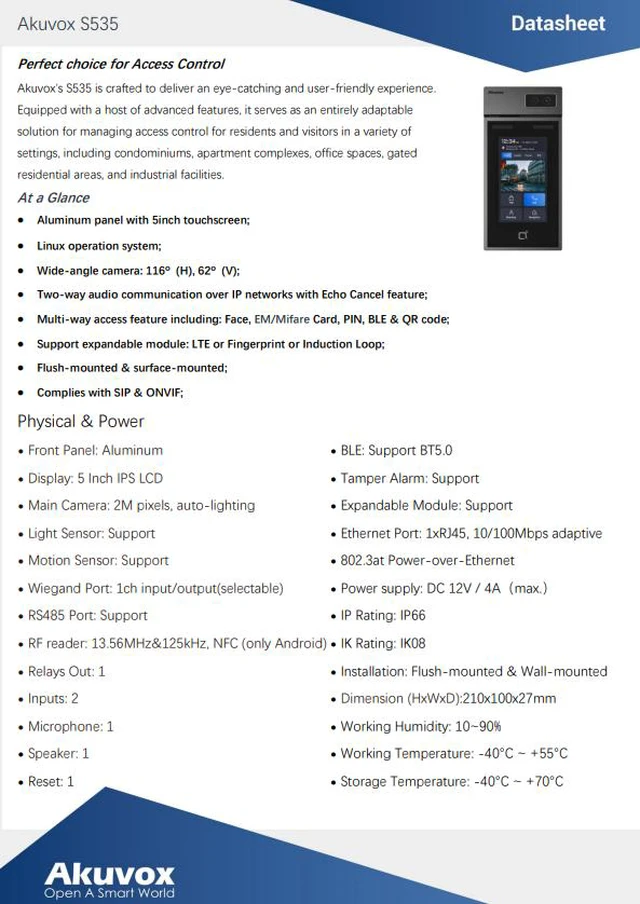

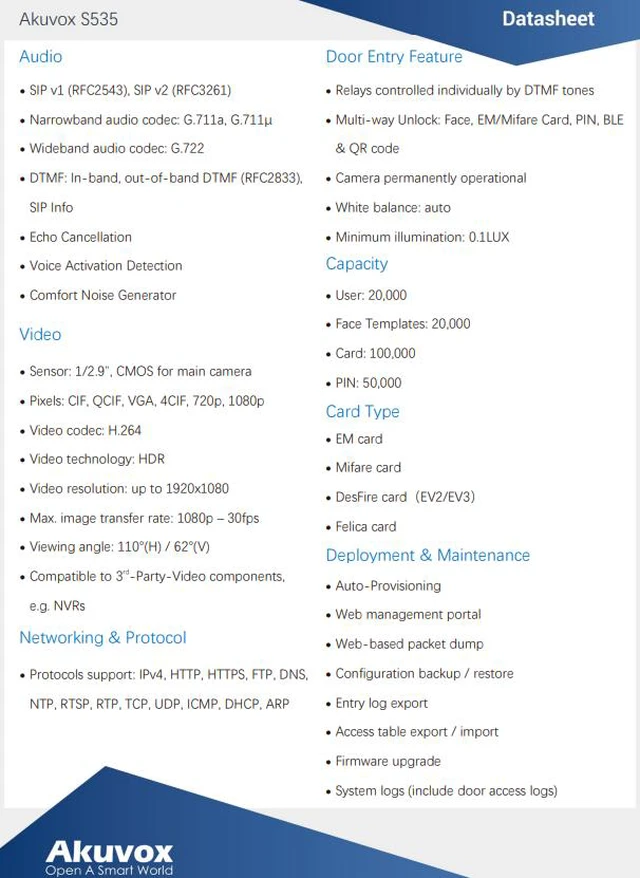

Specifications

Model: S535 | Type: Facial Recognition Video Door Phone, modular

Operating System: Linux

Display: 5" IPS LCD touchscreen | Front panel: Aluminum

Main Camera: 2MP, 1/2.9" CMOS, auto-lighting

Video Resolution: Up to 1920 × 1080 | CIF, QCIF, VGA, 4CIF, 720p, 1080p

Frame Rate: Up to 30fps at 1080p

Video Codec: H.264 | Video technology: HDR

Viewing Angle: 110° horizontal, 62° vertical

Min. Illumination: 0.1 lux | Auto-night mode with LED illumination | Auto white balance

Access Methods: Face, RFID card, PIN, Bluetooth, QR code

RF Card Reader: 13.56 MHz, 125 kHz, NFC

Bluetooth: Supported

SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)

Audio Codecs: G.711a, G.711 (narrowband), G.722 (wideband)

Audio Features: Echo cancellation, voice activity detection, comfort noise generator

DTMF: In-band, out-of-band (RFC2833), SIP Info

Audio Hardware: 1 microphone, 1 speaker

Relays: 1 output | Inputs: 2

Wiegand Port: Supported | RS485 Port: Supported

Sensors: Light sensor, motion sensor, tamper alarm

Expandable Module: LTE, fingerprint reader, or induction loop

Network: 1× RJ45 10/100 Mbps adaptive | ONVIF

Protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Management: Auto-provisioning, web portal, web-based packet dump, config backup/restore, entry log export, access table export/import, firmware upgrade, system logs

Power: 802.3at PoE or DC 12V / 4A max

Ingress Protection: IP66 | Impact Rating: IK08

Operating Temperature: -40°C to +55°C | Storage: -40°C to +70°C

Working Humidity: 10%90%

Dimensions: 210 × 100 × 27 mm

Installation: Flush-mounted or surface/wall-mounted

Applications: Condominiums, apartment buildings, office buildings, gated communities, industrial buildings
