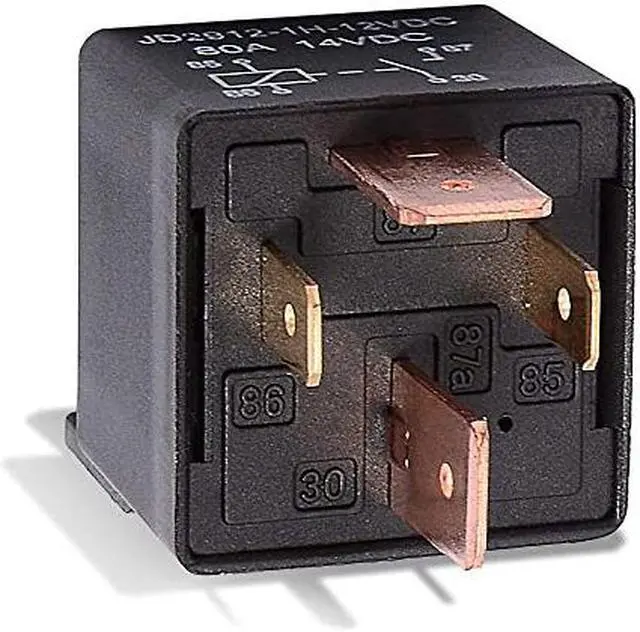

Main image of 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 2 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 3 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 4 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 5 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 6 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Alt view image 7 of 7 - 4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Shop All SmartWitness Products | Visit TechMax Depot Store

4-Pin Relay with Harness Car Truck Motor Heavy Duty 80A 12V On/Off Normally Open SPST Relay Socket Plug 4 Wire Automotive Relay Model JD2912-1H-12VDC 80A 14VDC,Pack of 1

Be the first to review this product...

***** Best Quality Guranteed.
*****Country of Manufacture: China; Material: Plastic, Metal, Copper
*****Contact Type: SPST (Normal Open); Pin Number: 4 Pin

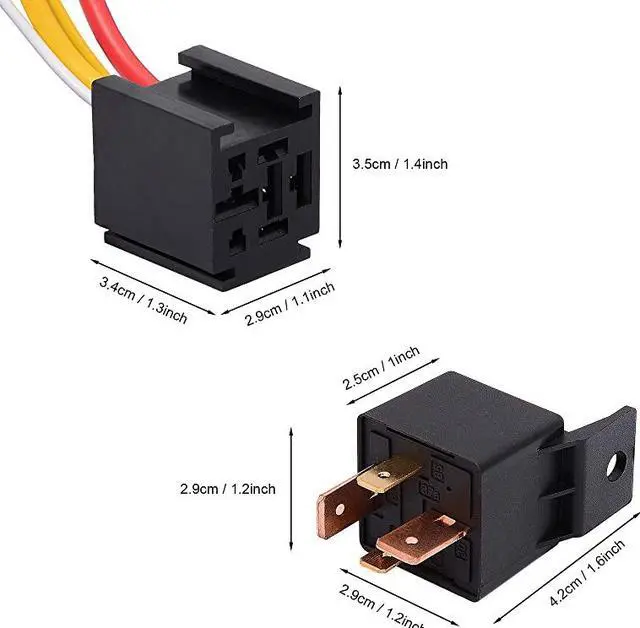

*****Coil: 12VDC 80 Amp; Body Size: 28 x 28 x25mm/1.1" x 1.2" x 1"(L*W*H)
*****Relay size: 33 x 28 x 52mm/1.3" x 1.1" x 2"(L*W*H); Fixing Hole Dia: 6.5mm/2.5"; Socket Size: 35 x 34 x 18 mm

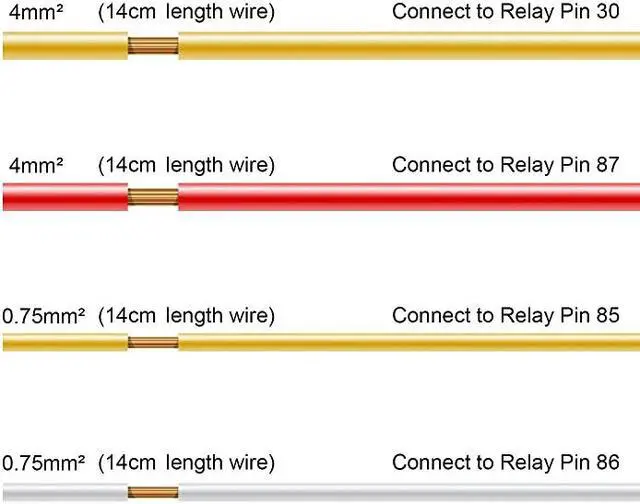

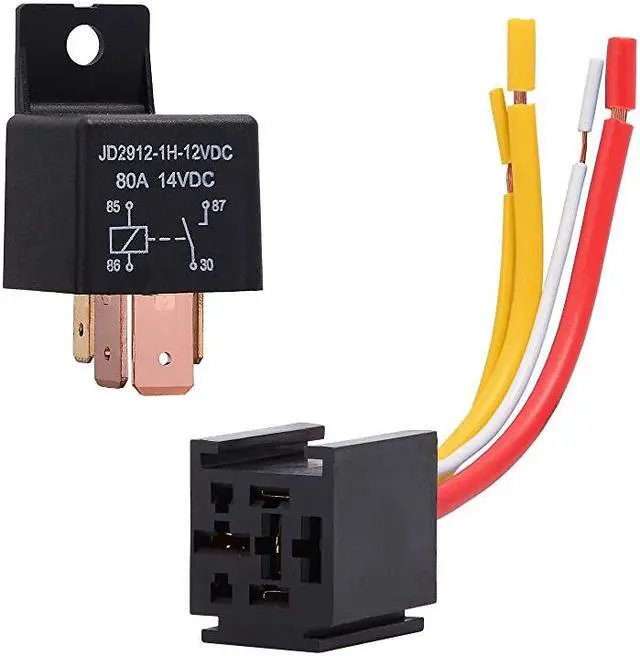

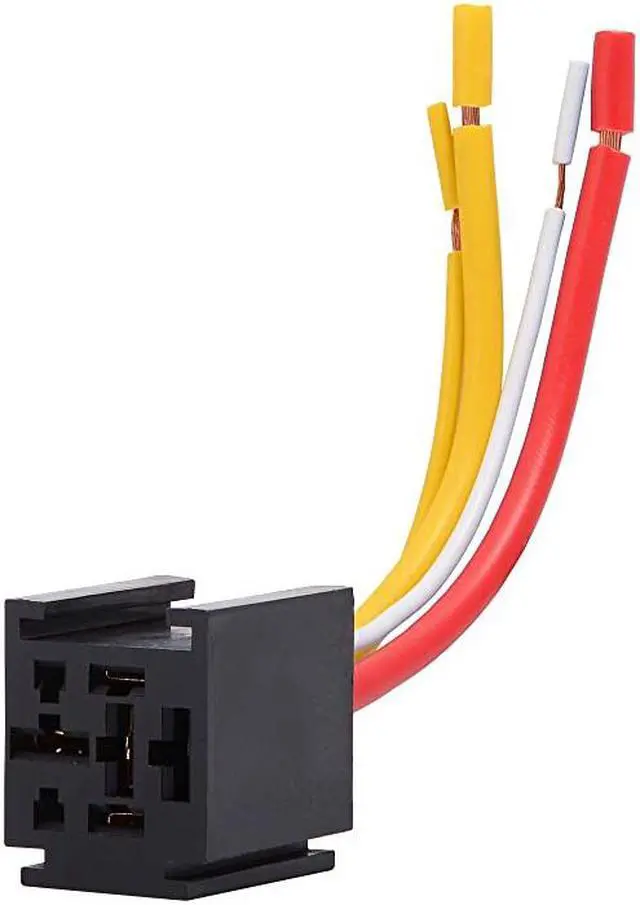

*****Package Content: 1 x Model: JD-2912 Car Relay; 1 x 4 pin relay socket with 4 wires

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Size: 1 PACK |
Color: 4Pin 12V 80A

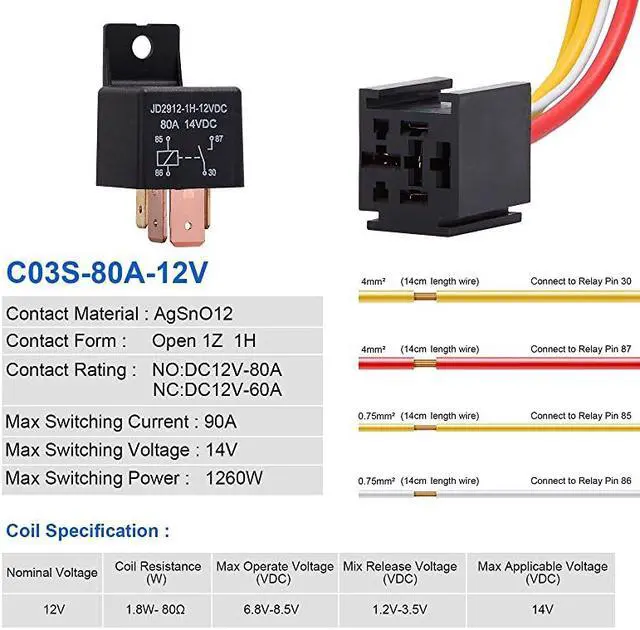

Contact Data: Contact
Material: AgSnO2
Contact Form: Normal
Open Contact Ratings:
No: 80A 14VDC
Contact Resistance: 100mMax at 6VDC 1A Max switching
Current: 80A
Max Switching Voltage: 75VDC
Max Switching Power: 560W
Life Expectancy Electrical: 100, 000 Operations (at 30
Operations/min) Life Expectancy Mechanical: 10, 000, 000
Operations Coil Specification: Nominal
Voltage (VDC): 12V
Coil Resistance ( 1.8W ): 80 Max Operate
Voltage (VDC): 6.0 ~ 8.0
Mix Release (VDC): 0.6 ~ 3.6 Max Applicable
Voltage (VDC): 15.6
Characteristics: Temperature
Range: -30C ~+80C
Vibration Resistance: 10~55Hz, 1.5 mm
Shock Resistance: Operations
Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 7ms
Release Time: 5ms
Weigh: Approx. 35g
