Specifications
Item Model Number: JL-M03108

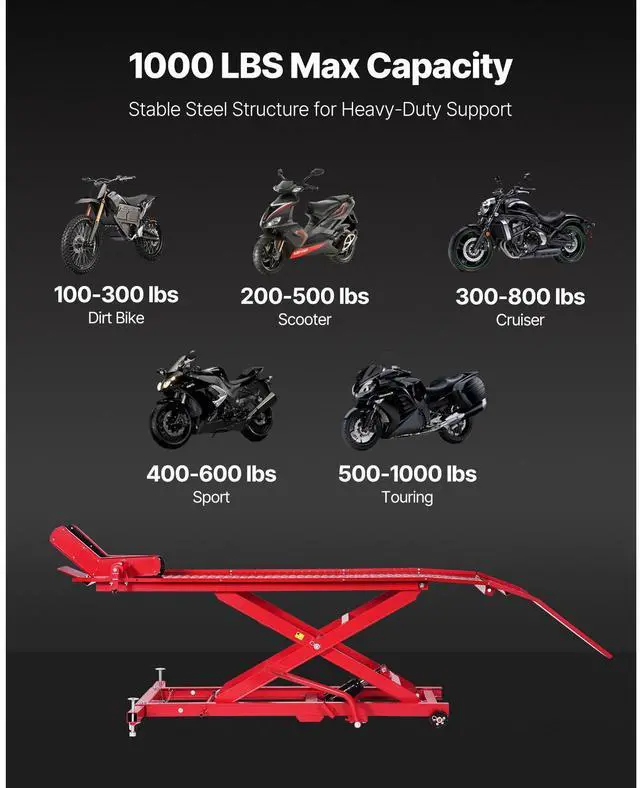

Load Capacity: 1000 lbs
Workbench Dimensions (L x W): 78.7 x 21.7 inches / 2000 x 550 mm
Thickness: 0.1 inch / 2.5 mm

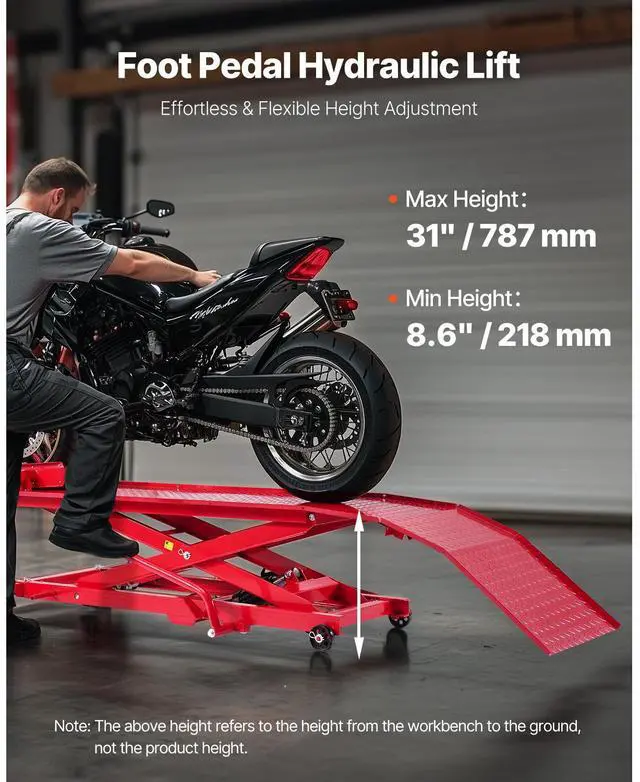

Minimum Lifting Height: 8.6 inches / 218 mm
Maximum Lifting Height: 31 inches / 787 mm
Lifting Type: Hydraulic
Surface Treatment: Powder Coating

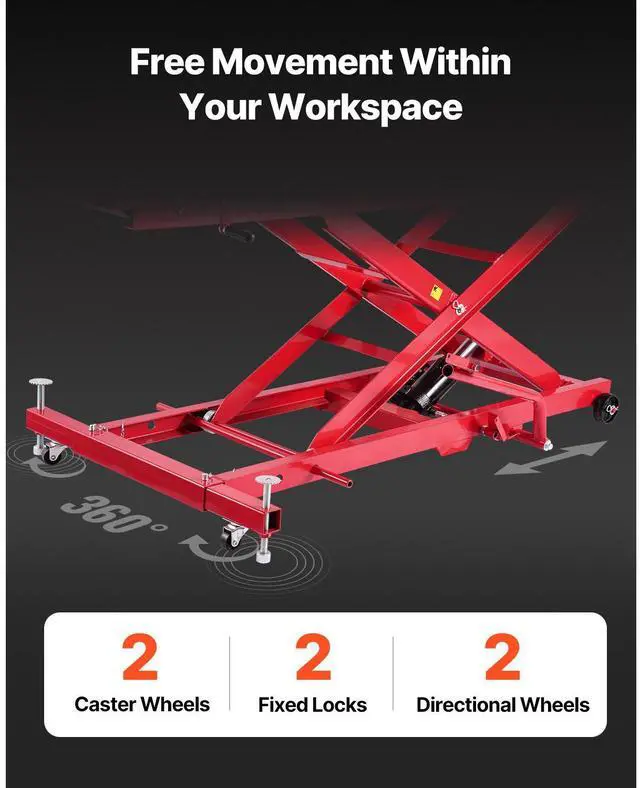

Number of Wheels: 4
Wheels Specifications
:
Swivel Wheels: Outer Diameter 42mm
Directional Wheels: Outer Diameter 89mm
Material: Q235B
Jack Specifications
:
Cylinder Diameter: 85mm
Material: Q235B
Thrust: 6.5 t
Stroke: 100mm
Net Weight: 254.4 lbs / 115.4 kg

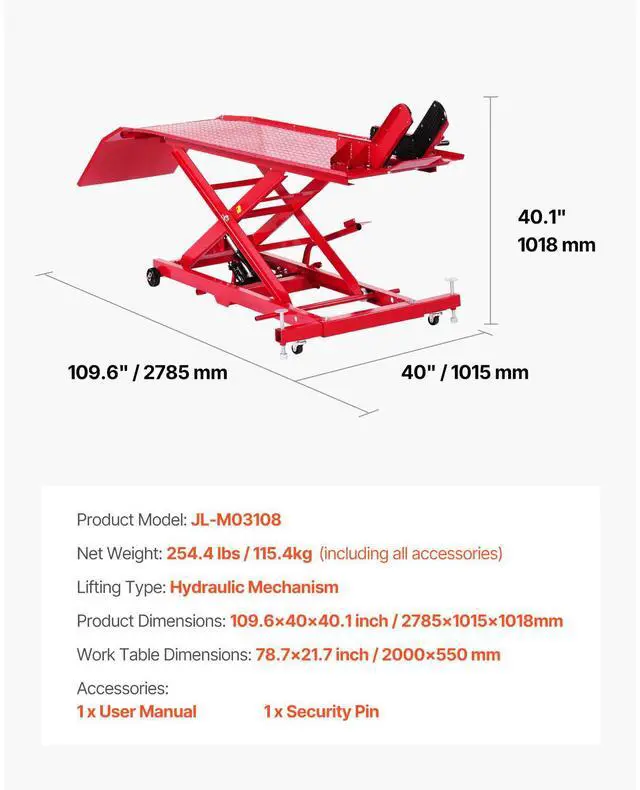

Product Dimensions: 109.6 × 40 × 40.1 inch / 2785 × 1015 × 1018 mm
Package Content
1 x User Manual
1 x Rear Release Plate x1
10 x M10*25 Screws
10 x M10 Washers
10 x M10 Nuts
1 x M18*80 Screws
1 M8 Washers
1 x M8 Spring Washers
Safety Pin x1
