MTX THUNDER1000.1 Class D 1000 Watt RMS Mono Block Car Audio Amplifier, Black
- Compact design and small footprint chassis allows for installation in space challenged vehicles
- Extruded aluminum heat sink maximizes heat transfer away from the circuitry protecting the amplifier
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
MTX THUNDER1000.1 1000W RMS Mono Block Class D Amplifier
Overview
Feel the Thunder
MTX THUNDER1000.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 2000 Watts peak power in an incredibly small package.
High Power High Value
The THUNDER1000.1 is a high powered subwoofer amplifier capable of delivering up to 1000 watts RMS power at 1O. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.
Technologically Advanced
The THUNDER1000.1 features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat. The THUNDER1000.1 also features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.

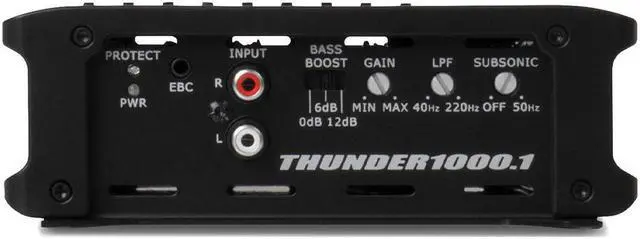

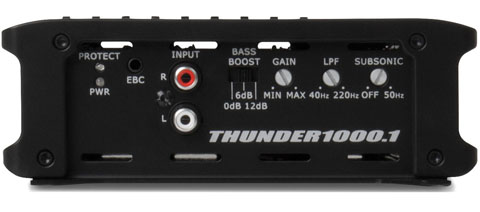

Easy Adjustment
The control panel on the THUNDER1000.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.

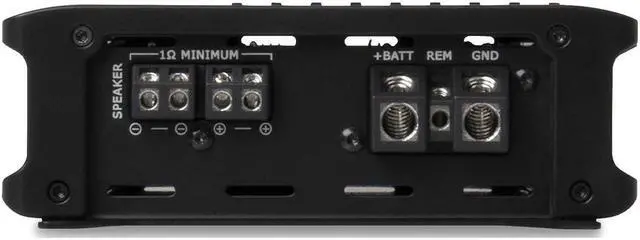

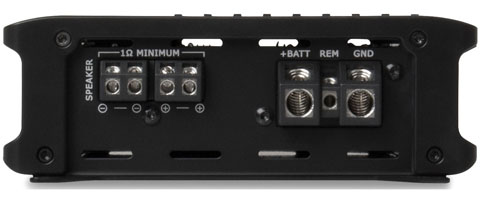

Secure Connections
The THUNDER1000.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 1/0 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimizing power loss and delivering all the power to the amplifier and to the speakers.
Features
- Small Footprint
- Extruded Aluminum Heat Sink
- Surface Mount PCB Design
- Variable Crossover
Specifications
| Description | Mono Block |
|---|---|
| 4-Ohm RMS Power Output | 350W x 1 Channel |
| Signal-to-Noise Ratio (1-Watt) | 80dB |
| 2-Ohm RMS Power Output | 600W x 1 Channel |
| 1-Ohm RMS Power Output | 1000W x 1 Channel |
| Topology | Class D |
| THD+N (Distortion) (1-Watt) | < 1% |
| Frequency Response | 10Hz - 220Hz |
| Crossover | Variable Low @ 40Hz to 220Hz, 12dB/Oct |
| Subsonic Filter | 10Hz to 50Hz, 12dB/Oct Variable |
| Bass Boost | 0 6 12dB Switchable |
| Max Sensitivity | 200mV |
| Max Input Signal | 5V |
| Height | 6.3" |
| Width | 12.13" |
| Depth | 2.25" |
Upgrade the sound in your ride by first giving it more power with the MTX Class D 1000 Watt Mono Block Amplifier.
This high-powered amplifier is designed to be installed in almost any vehicle due to its small chassis size. The power capability of this car audio amp makes it a perfect choice for running single or multi-woofer sound systems without worrying about compromising bass output or quality.
This monoblock amp features a high-efficiency Class D circuit design chosen for its ability to produce high output power while minimizing power loss to heat build-up. Surface mount technology helps to create the compact design of this power amplifier and improves its reliability and resistance to vibration.
This shallow amp has features you need to fine-tune your system's sound such as the built-in variable low pass crossover, selectable bass boost circuit, and variable subsonic filter. The car stereo amp uses set-screw style terminals to provide the most secure connection possible which minimizes any power loss while delivering all the power to the amplifier and to your speakers.
The MTX Class D 1000 Watt Mono Block Amplifier has you covered for the power you need to make your sound heard around the block.
This high-powered amplifier is designed to be installed in almost any vehicle due to its small chassis size. The power capability of this car audio amp makes it a perfect choice for running single or multi-woofer sound systems without worrying about compromising bass output or quality.
This monoblock amp features a high-efficiency Class D circuit design chosen for its ability to produce high output power while minimizing power loss to heat build-up. Surface mount technology helps to create the compact design of this power amplifier and improves its reliability and resistance to vibration.
This shallow amp has features you need to fine-tune your system's sound such as the built-in variable low pass crossover, selectable bass boost circuit, and variable subsonic filter. The car stereo amp uses set-screw style terminals to provide the most secure connection possible which minimizes any power loss while delivering all the power to the amplifier and to your speakers.
The MTX Class D 1000 Watt Mono Block Amplifier has you covered for the power you need to make your sound heard around the block.
- Compact design and small footprint chassis allows for installation in space challenged vehicles
- Extruded aluminum heat sink maximizes heat transfer away from the circuitry protecting the amplifier
- Selectable 0, 6, or 12dB bass boost centered at 50Hz allows you to take the bass to the next level
- 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to
- Variable subsonic filter designed to block potentially damaging bass frequencies
- Thermal, DC offset, and short circuit protection circuitry ensures the amplifier will protect itself in the event of a problem
- Surface mount PCB design decreases chassis size, improves layout efficiency, and increases vibration resistance without sacrificing performance or sound
- Color: Black
- Dimensions (L x W x H): 12.13 x 6.3 x 2.25 inches
- Weight: 6 pounds
