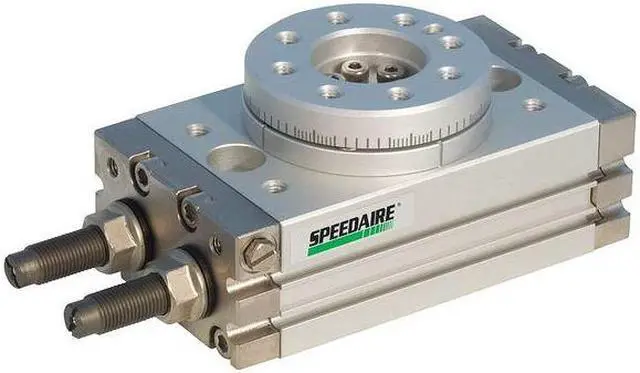

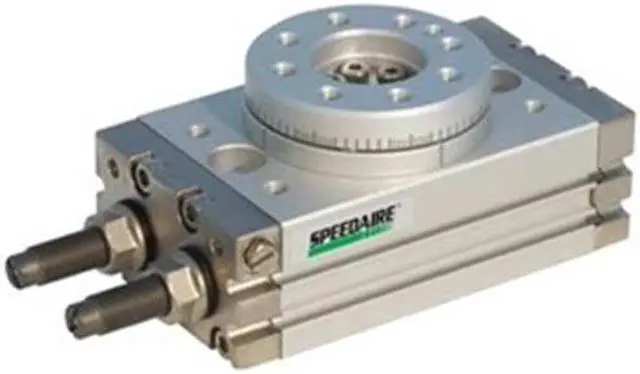

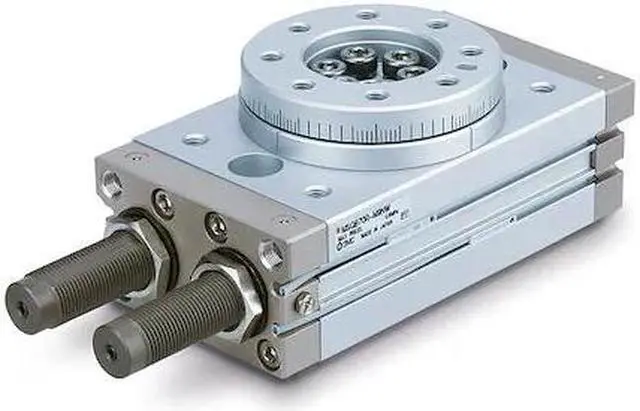

Rotary Table, 0 to 190 Deg, 10mm Bore

Rotary Table, Bore Diameter 10 mm, Maximum Operating Pressure 1 MPa, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Maximum Output Torque 1.78 N-m, Cushion Type Rubber Cushion, Table Material Finish Anodized, Body Material Finish Anodized, Minimum Rotation Angle 52 Degrees, Bearing Retainer Material Aluminum Alloy, Body Height 34 mm, Body Material Aluminum Alloy, Allowable Kinetic Energy 0.01 J, Table Size 10, Maximum Rotation Angle 190 Degrees, Overall Length 109.7 mm. This item has been restricted from sale in the following state (s): []
