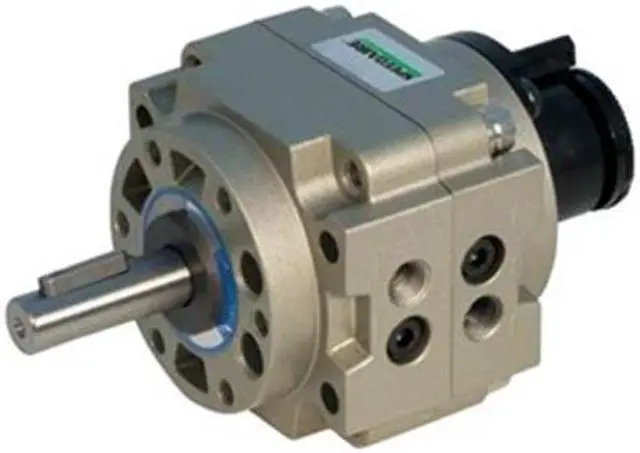

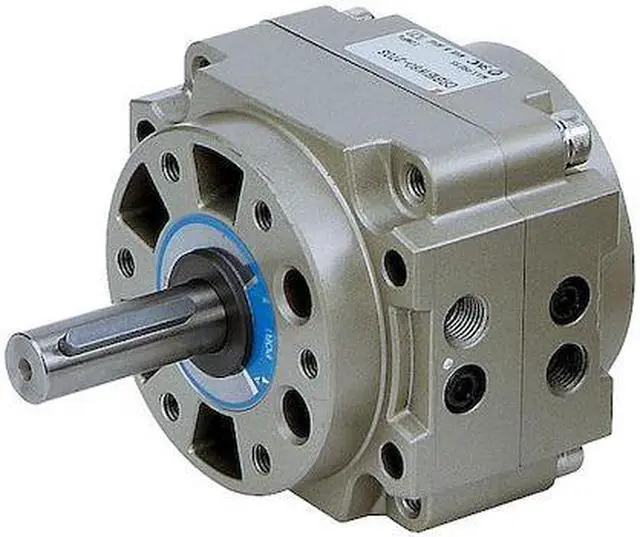

Rotary Actuator, 90 Deg, 50mm Bore

Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 24.2 N-m, Rotation Angle 90 Degrees, Bore Diameter 50 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 12 mm, Shaft Length 39.5 mm, Inlet Size 1/8 in, Air Inlet Type BSPT, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 0.83 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air. This item has been restricted from sale in the following state (s): []
