PRIME-LINE R 7212 19-3/4 in. White Painted Steel Bottom-Mount Self-Closing

These drawer slide kits are constructed of steel tracks with plastic rollers and come in a white powder-coated finish. They feature a self-closing design that commences at the final 2-1/2 in. from the end of the 19-3/4 in. long tracks when closing. The maximum load capacity for this kit is 75 lbs., and it fits most bottom-mount drawer systems. This kit cannot be cut down to fit smaller drawer depths as it is designed with a positive stop at the ends of the fixed tracks, and because the rear rollers (11/16 in. diameter wheels) on the sliding tracks are fastened to the ends of the drawer-mounted track pieces. These bottom-mount drawer slides can be installed in drawer cabinets with face frames and without. If installing in drawer cabinet with face frame, Prime-Line part R 7240 (purchased separately) may be necessary if existing back plates are damaged. The clearance required between the drawer and the drawer opening for these types of slides is as follows: 1/2 in. on left and right sides, 1/4 in. at the bottom and 5/8 in. at the top. Installation instructions are included with each set, and they can also be found within the manufacturers website.

These drawer slides can be installed in cabinetry constructed with and without face frames, that have a depth of 20 in.

Durable steel-constructed drawer slides with plastic wheels designed for years of use

Designed with self-closing feature that begins towards the end of the slide

Easy to install slides fit most bottom-mount drawer systems

Maximum load capacity is 75 lbs.

Ideal for use in kitchen cabinets

Installation fasteners and instructions are included

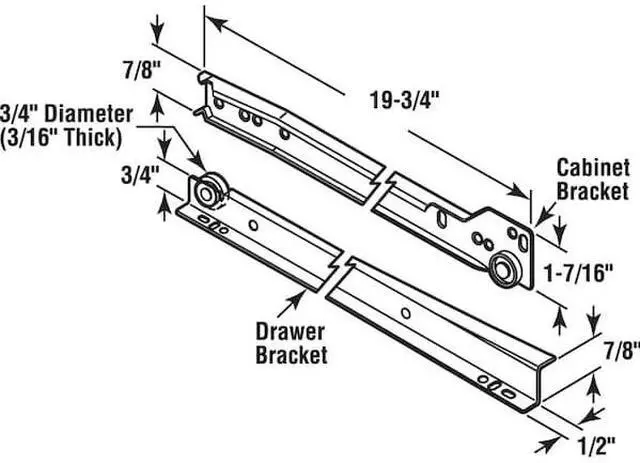

For further dimensional information, please see the line drawing
