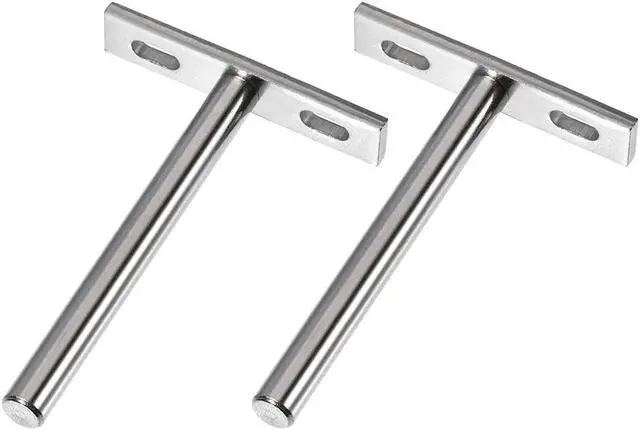

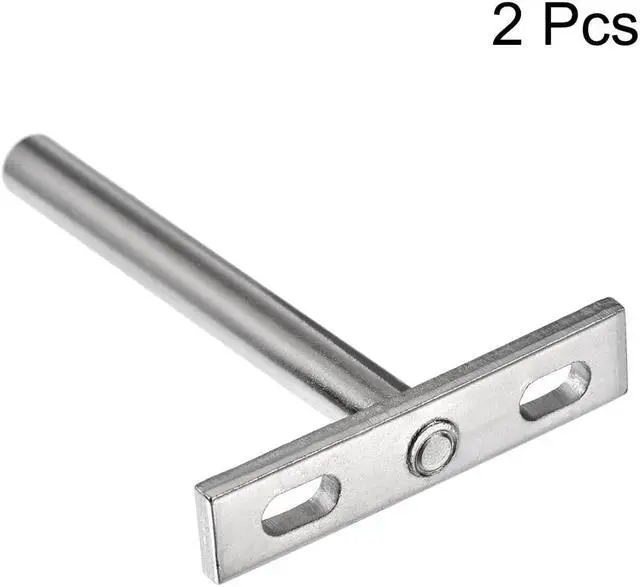

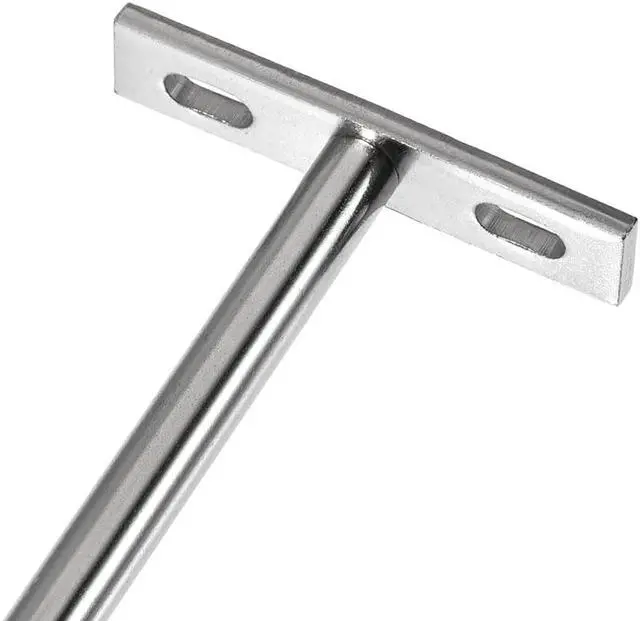

Floating Shelf Invisible Support Bracket Round Shank 100mm Hardened Concealed Wall Support Set 2 Pcs

How to Install:

1. Drill holes in the wall. The distance between the two holes is measured according to the length of the board.

2. After drilling holes, insert the expansion kit to the wall.

3. Drilling holes into your board to hide the mounting bracket.

4. Finally, just pull the bracket into the board.

KEY_TAB

Features:

1. Concealed installation for home applications such as cabinets, bookshelves, advertising light boxes, shelves, beams, mantels, wall art, fire fences, radiator screens, etc. for indoor walls and ceilings.

2. The hidden bracket is made of high-quality carbon steel, and the surface is plated with white zinc, which is firm and corrosion-resistant. The installation is suitable for solid walls and concrete walls.

KEY_TAB

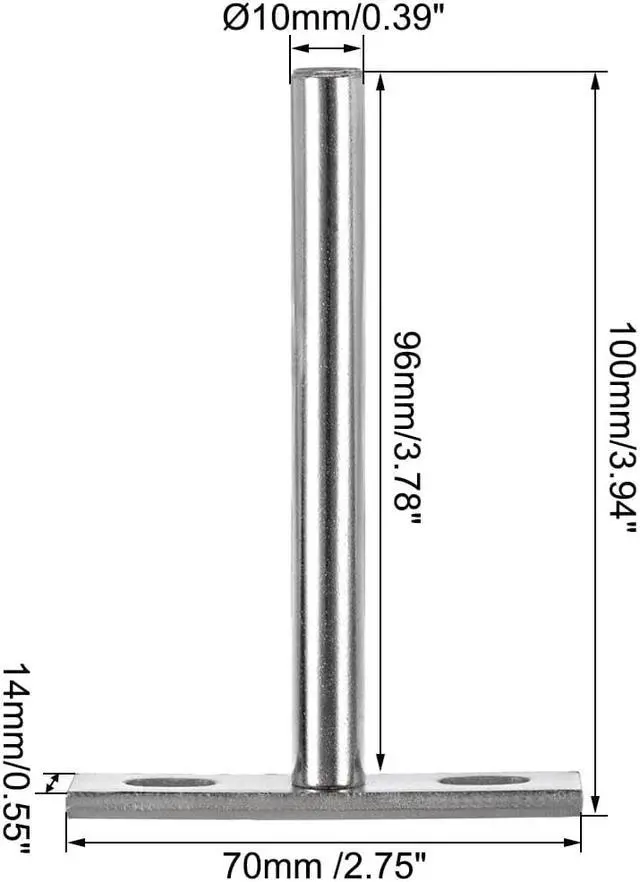

Specifications:

Shank Length: Approx. 96mm/3.78"

Shank Diameter: 10mm/0.39"

Mounting Hole Diameter: 12mm x 6mm/0.47" x 0.24"(L*W)

Mounting Hole Distance: 43mm/1.69"

Total Size: 70mm x 14mm x 100mm/2.75" x 0.55" x 3.94"(L*W*H)

Surface treatment: Nickel Plating

KEY_TAB

Package Included:

2 x Floating Shelf Bracket
