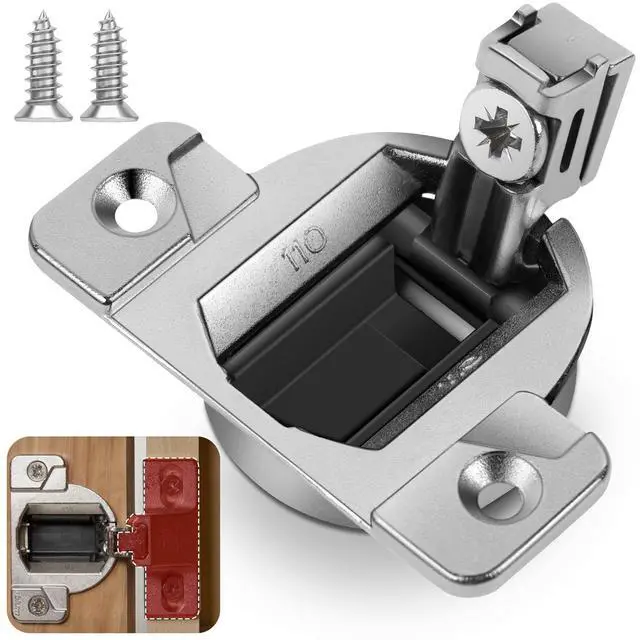

8 PCS Replacement for 30.310-11.02 Blum Cabinet Hinges, Self Quick Closing 110 & 120 Degree Screw On, 33.3600 Compact 31 & 33 Hinge (Mounting Plate Not Included) Include Wood Screws

Important Notice: This hinge is a direct replacement for older Blum Compact 31 hinges; however, the screw hole positions are different. When replacing an old-style hinge, re-drilling of the small wood screw holes is necessary. The new screw hole locations will not interfere with the original holes. The mounting plate is not included. Please verify hinge version, borehole location, and compatibility prior to purchase or installation.
Concealed Compact 33 Hinge: Update your kitchen cabinets with this concealed substitute for Blum 30.310 - 11.02 hinges to achieve a seamless design and smooth operation. It is essential to confirm your desired overlay measurements and size compatibility before ordering.

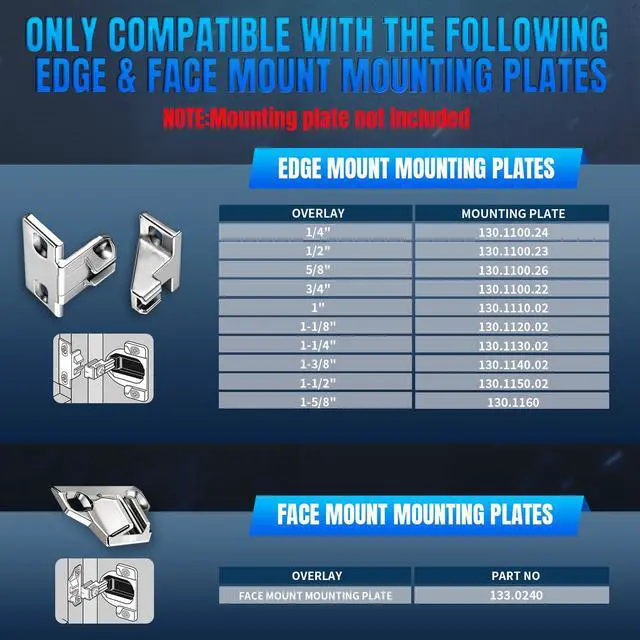

Compatibility: This hinge replaces old Blum Compact 31 and Blum 120 hinges, and is compatible with Blum Compact 33
& 31 edge mounting plates: 1/4 inch ( 130.1100. 24), 1/2 inch ( 130.1100. 23), 5/8 inch ( 130.1100. 26), 3/4 inch ( 130.1100. 22), 1 inch ( 130.1110. 02), 1-1/8 inch ( 130.1120. 02), 1-1/4 inch ( 130.1130. 02), 1-3/8 inch ( 130.111140. 02), 1-1/2 inch ( 130.1150. 02), 1-5/8 inch ( 130.1160 ), face
frame edge mounting plates: ( 133.0240 ), and
wrap-around mounting plate: 130.214 - 01.02. This hinge also replaces models 30.460, 32.160, 32.260, 30.310, and PA66.

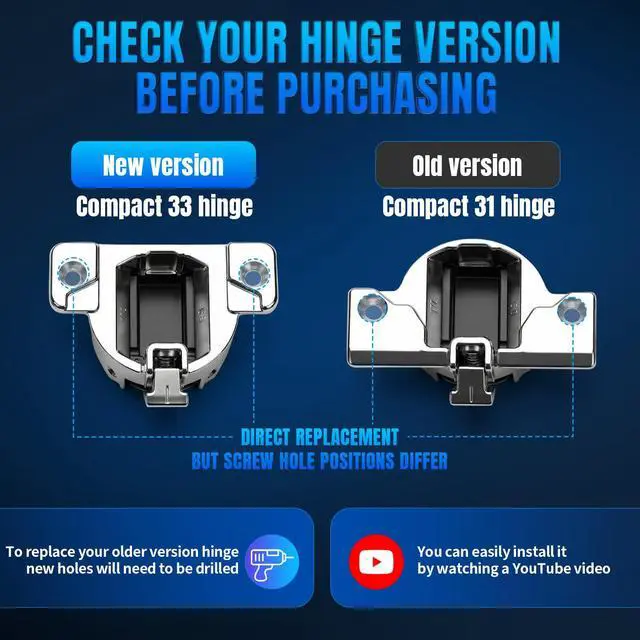

Note: The old style hinge (Blum Compact 31) and the new style have different mounting holes. Two new holes need to be drilled.

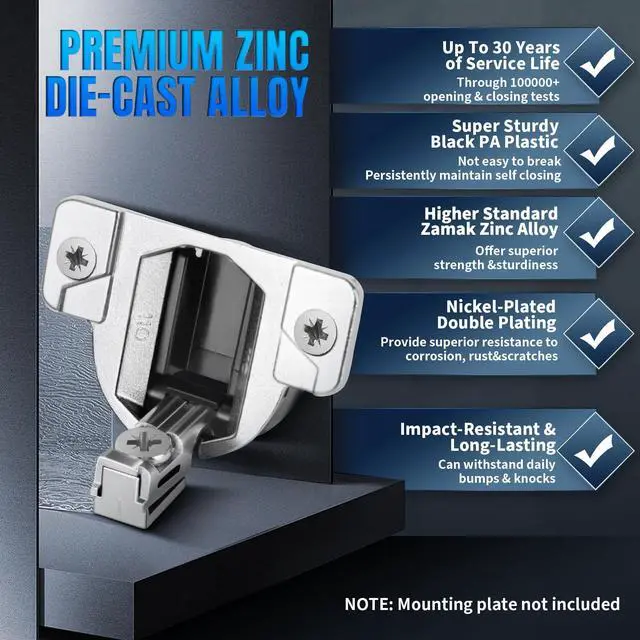

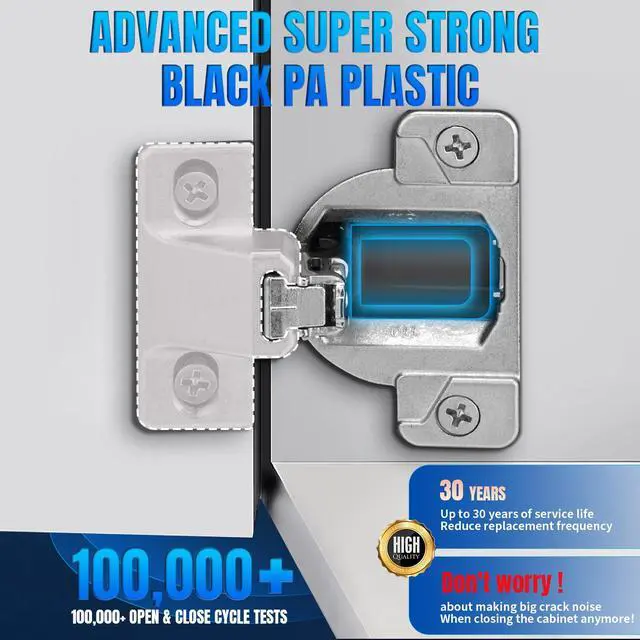

Durable Construction: The replacement for Blum 30.310 - 11.02 hinges is made from ultra-hard, high-density PA plastic, which offers excellent impact resistance. This material reliably withstands daily collisions and wear. The hinges have undergone over 100, 000 opening and closing cycles. Furthermore, the heavy-duty Zamak zinc alloy provides strong, dependable structures. Nickel-plated surface layers improve corrosion resistance, ensuring smooth hinge function.
Easy to Install: This cabinet hinge features a simple screw-on design and is compact, fitting neatly into the cabinets Blum mounting plate. It provides a wide 110-degree opening angle for convenient access to the cabinet contents. The hinges include two #6 x 5/8" wood screws (606N or 606P) for installation. This package contains the hinges only; the mounting plate is not included. Please determine your door's overlay before purchasing a mounting plate.

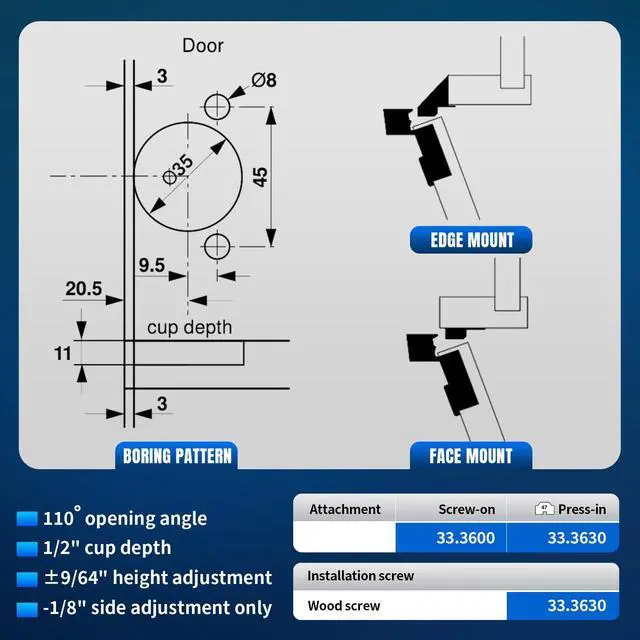

Parameters: Designed for doors with a thickness of 16 mm to 19 mm.
Opening Angle: 110 degrees.

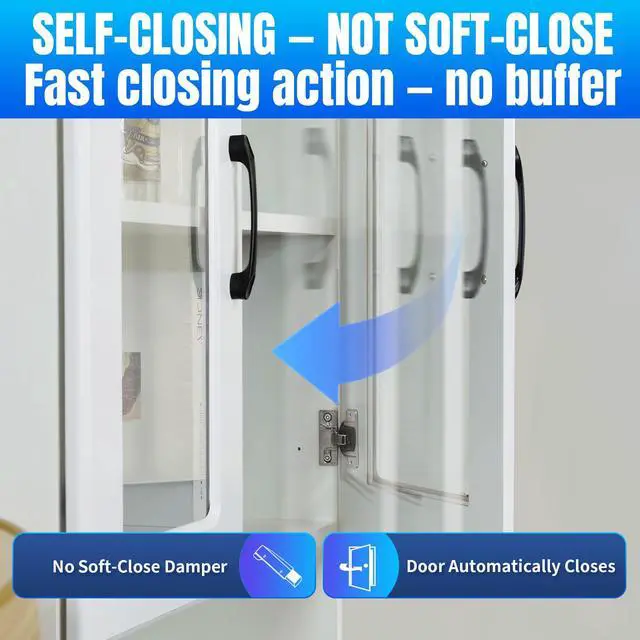

Closing Mechanism: with spring.
Hinge Cup Assembly: screw-on.
Cup Diameter: 1-3/8".
Bore Distance Min/Max: 2.5", 3".
Cup Depth: 1/2".
Mount Centers: 1-3/4". Bore Distance (from the edge of the 35mm cup to the edge of the door): 1/8".
Side to Side Adjustment: plus or minus 1/8".
Height Adjustment: plus or minus 9/64"
