10 Pack Frameless Half Overlay Soft Close Concealed European Hinges, Self Closing Satin Nickel, 105 ° Open Angle 4D Adjustment, Speed Control, Clip On, Stainless Steel for Cabinet Door
Limited time offer, ends 09/25 By MiniJoyBelle Tech
- Installation Specification: Cup depth: 13.5mm; Screw hole distance: 45mm; Opening angle: 105°; Suitable for door thickness: 1422mm. Each hinge is supplied with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a secure fit, and also includes 2 screw covers to hide the screws. Designed for HALF OVERLAY (3/8") doors on frameless cabinets. Please verify the required overlay and compatibility before purchasing. SOFT CLOSE CABINET HINGE: Each cabinet hinge features a built-in POM damper. Lowered closing speed helps reduce noise from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it supports a SMALL SOFT CLOSE ANGLE, offering better protection for your fingers. 4D Adjustable Upgrade: 4D hinges allow you to adjust the cabinet door with just a screwdriver (Vertical, Horizontal, Depth, Closing Speed), ensuring your new custom-made cabinet doors stay aligned, don't sag, and open and close smoothly; closing speed can be adjusted freely within 3-8s. Stop at any angle after 45°: The cabinet hinge can hold at any angle once the door is opened beyond 45°. This means you won't need angle clips when the door is near a wall, and you can still position it at various angles as needed. When the opening angle is less than 45°, the door closes by itself. The product endures over 100,000 open-and-close cycles and passes more than 48 hours of salt spray testing
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

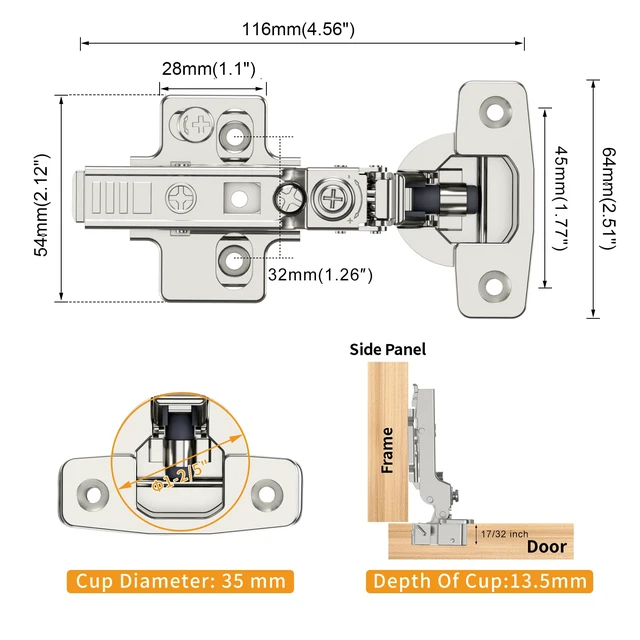

Installation Specification: Cup
depth: 13.5 mm;
Screw hole distance: 45mm;
Opening angle: 105°;
Suitable for door thickness: 1422mm. Each hinge is supplied with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a secure fit, and also includes 2 screw covers to hide the screws. Designed for HALF OVERLAY (3/8") doors on frameless cabinets. Please verify the required overlay and compatibility before purchasing.
SOFT CLOSE CABINET HINGE: Each cabinet hinge features a built-in POM damper. Lowered closing speed helps reduce noise from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it supports a SMALL SOFT CLOSE ANGLE, offering better protection for your fingers.
4D Adjustable Upgrade: 4D hinges allow you to adjust the cabinet door with just a screwdriver (Vertical, Horizontal, Depth, Closing Speed), ensuring your new custom-made cabinet doors stay aligned, don't sag, and open and close smoothly; closing speed can be adjusted freely within 3-8s. Stop at any angle after 45°: The cabinet hinge can hold at any angle once the door is opened beyond 45°. This means you won't need angle clips when the door is near a wall, and you can still position it at various angles as needed. When the opening angle is less than 45°, the door closes by itself. The product endures over 100, 000 open-and-close cycles and passes more than 48 hours of salt spray testing
depth: 13.5 mm;
Screw hole distance: 45mm;
Opening angle: 105°;
Suitable for door thickness: 1422mm. Each hinge is supplied with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a secure fit, and also includes 2 screw covers to hide the screws. Designed for HALF OVERLAY (3/8") doors on frameless cabinets. Please verify the required overlay and compatibility before purchasing.
SOFT CLOSE CABINET HINGE: Each cabinet hinge features a built-in POM damper. Lowered closing speed helps reduce noise from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it supports a SMALL SOFT CLOSE ANGLE, offering better protection for your fingers.
4D Adjustable Upgrade: 4D hinges allow you to adjust the cabinet door with just a screwdriver (Vertical, Horizontal, Depth, Closing Speed), ensuring your new custom-made cabinet doors stay aligned, don't sag, and open and close smoothly; closing speed can be adjusted freely within 3-8s. Stop at any angle after 45°: The cabinet hinge can hold at any angle once the door is opened beyond 45°. This means you won't need angle clips when the door is near a wall, and you can still position it at various angles as needed. When the opening angle is less than 45°, the door closes by itself. The product endures over 100, 000 open-and-close cycles and passes more than 48 hours of salt spray testing
