$149.99
Sold by DrakeMount FortunaTech Parts
Shipped by DrakeMount FortunaTech Parts
Meet Your Seller

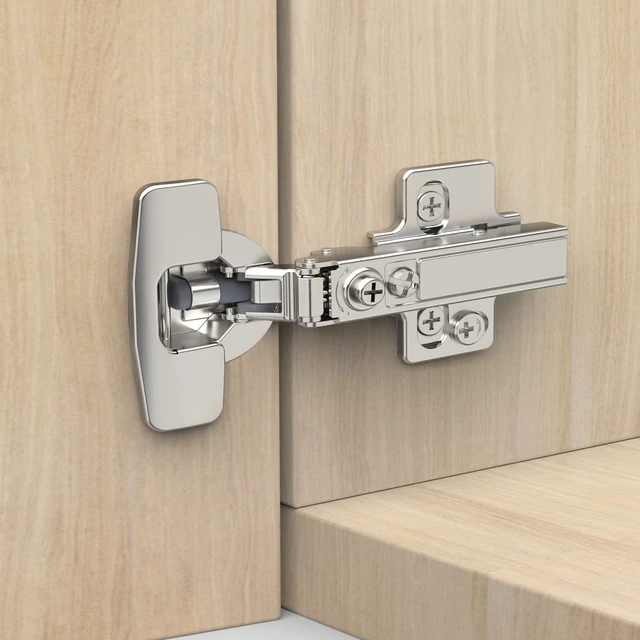

50 Pack Frameless Full Overlay Concealed European Hinges, Self Closing Satin Nickel, Soft Close 105 ° Open Angle 4D Adjustment, Speed Control, Clip On, Stainless Steel for Cabinet Door
Limited time offer, ends 09/28 By DrakeMount FortunaTech Parts
- Installation Specification - Cup depth: 13.5mm; Screw holes distance: 45mm; Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge includes 2 easy-on dowels and 4 self-tapping wooden screws to ensure a proper fit, and comes with 2 screw covers to conceal the screws. Each euro-style concealed kitchen cabinet hinge is designed for full overlay doors on frameless cabinets. SOFT CLOSE CABINET HINGE - Each cabinet hinge contains a built-in POM damper, Reduced closing speed minimizes noises from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it also supports SMALL SOFT CLOSE ANGLE, which can better safeguard your finger. 4D Adjustable Upgrade - 4D hinges allow you to adjust the cabinet door simply by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will ensure that your new custom-made cabinet doors don't sag, align correctly, and will open and close smoothly; Closing speed can be adjusted freely within 3-8s. Stop at any angle after 45° - Cabinet hinges can hold at any angle once the cabinet door is opened beyond 45°. This means you don't need angle clips when your cabinet door is near the wall, and you can still open it at various angles according to your needs. When the opening angle is under 45°, the cabinet door closes by itself. The product can endure more than 100,000 times of opening and closing and over 48 hours of salt spray test
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

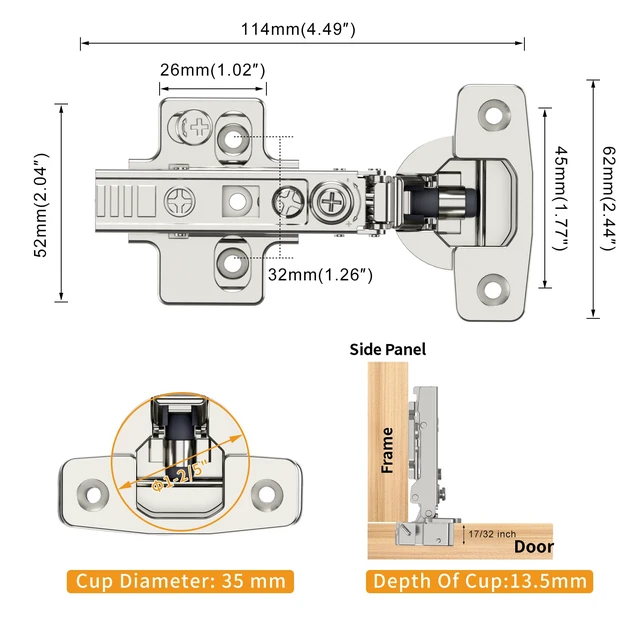

Installation Specification -
Cup depth: 13.5 mm;
Screw holes distance: 45mm;

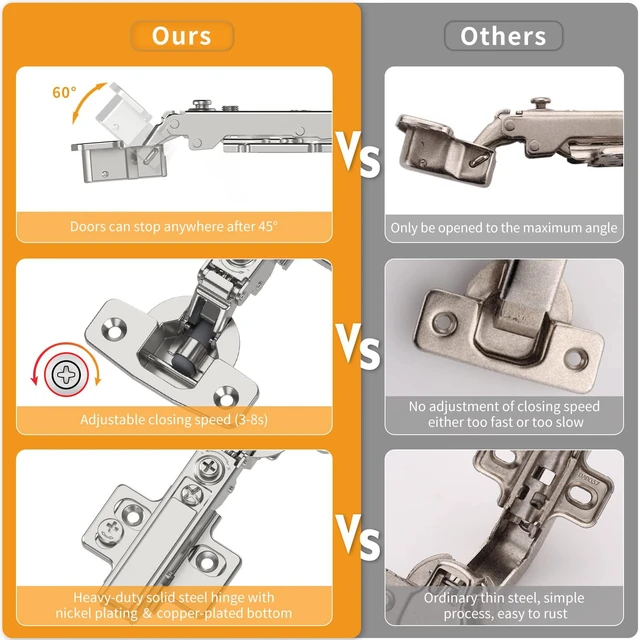

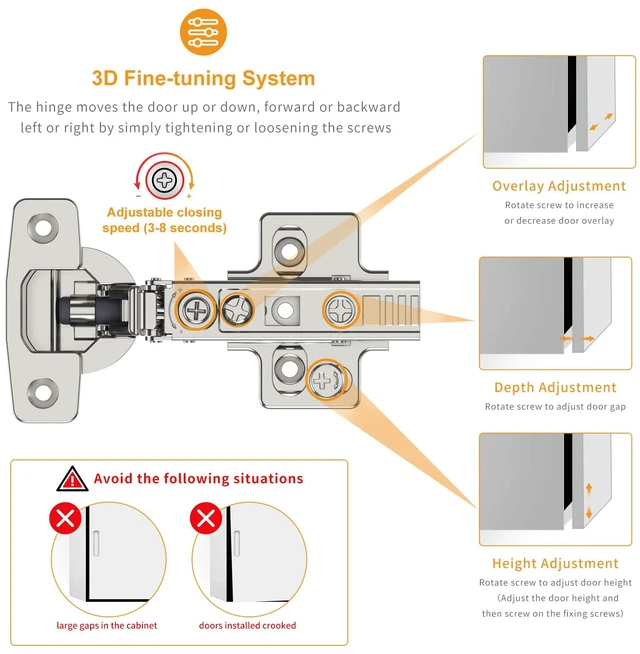

Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge includes 2 easy-on dowels and 4 self-tapping wooden screws to ensure a proper fit, and comes with 2 screw covers to conceal the screws. Each euro-style concealed kitchen cabinet hinge is designed for full overlay doors on frameless cabinets. SOFT CLOSE CABINET HINGE - Each cabinet hinge contains a built-in POM damper, Reduced closing speed minimizes noises from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it also supports SMALL SOFT CLOSE ANGLE, which can better safeguard your finger. 4D Adjustable Upgrade - 4D hinges allow you to adjust the cabinet door simply by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will ensure that your new custom-made cabinet doors don't sag, align correctly, and will open and close smoothly; Closing speed can be adjusted freely within 3-8s. Stop at any angle after 45° - Cabinet hinges can hold at any angle once the cabinet door is opened beyond 45°. This means you don't need angle clips when your cabinet door is near the wall, and you can still open it at various angles according to your needs.
When the opening angle is under 45°, the cabinet door closes by itself. The product can endure more than 100, 000 times of opening and closing and over 48 hours of salt spray test
Cup depth: 13.5 mm;
Screw holes distance: 45mm;
Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge includes 2 easy-on dowels and 4 self-tapping wooden screws to ensure a proper fit, and comes with 2 screw covers to conceal the screws. Each euro-style concealed kitchen cabinet hinge is designed for full overlay doors on frameless cabinets. SOFT CLOSE CABINET HINGE - Each cabinet hinge contains a built-in POM damper, Reduced closing speed minimizes noises from the kitchen and extends the durability of doors, cabinets, and hinges. Additionally, it also supports SMALL SOFT CLOSE ANGLE, which can better safeguard your finger. 4D Adjustable Upgrade - 4D hinges allow you to adjust the cabinet door simply by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will ensure that your new custom-made cabinet doors don't sag, align correctly, and will open and close smoothly; Closing speed can be adjusted freely within 3-8s. Stop at any angle after 45° - Cabinet hinges can hold at any angle once the cabinet door is opened beyond 45°. This means you don't need angle clips when your cabinet door is near the wall, and you can still open it at various angles according to your needs.
When the opening angle is under 45°, the cabinet door closes by itself. The product can endure more than 100, 000 times of opening and closing and over 48 hours of salt spray test
