20 Pack Frameless Full Overlay Soft Close Concealed European Hinges, Self Closing Satin Nickel, 105 ° Open Angle 4D Adjustment, Speed Control, Clip On, Stainless Steel for Cabinet Door

Installation Specification -
Cup depth: 13.5 mm;
Screw hole distance: 45mm;

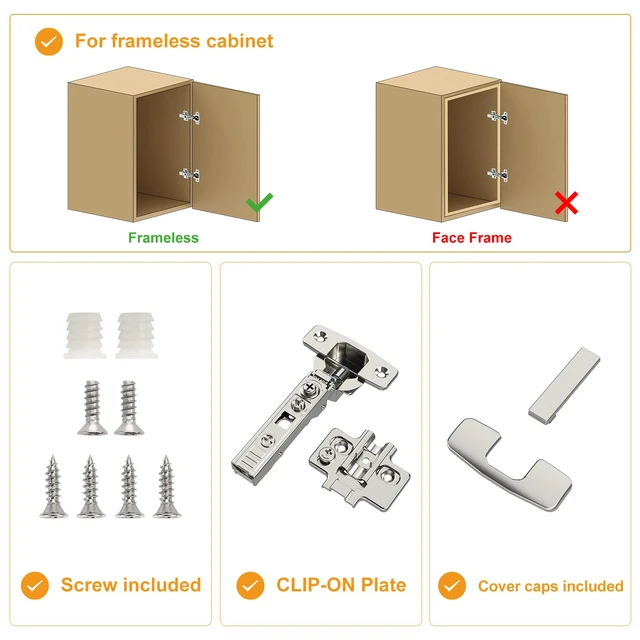

Opening angle: 105 degrees; The door thickness range is 14-22mm, suitable for most cabinet door styles. Each hinge comes with 2 easy-on dowels, 4 self-tapping wooden screws to ensure a proper fit, and 2 screw covers to conceal the screws. Each euro-style concealed kitchen cabinet hinge fits full overlay doors on frameless cabinets. SOFT-CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper. The reduced closing speed helps prevent kitchen noise and reduce wear on doors, cabinets, and hinges. It also supports a small soft-close angle to help protect fingers. 4D Adjustable Upgrade - 4D hinges allow cabinet door adjustment with a screwdriver in four directions: vertical, horizontal, depth, and closing speed. This helps keep custom-made cabinet doors from sagging, align them properly, and ensure smooth opening and closing. The closing speed can be adjusted within 3-8s. Stop at Any Angle After 45 Degrees - Cabinet hinges can stop at any angle after the cabinet door is opened beyond 45 degrees. No angle clips are needed when the cabinet door is near the wall, and the door can still be opened at different angles according to your needs. When the opening angle is less than 45 degrees, the cabinet door closes automatically. The product can withstand more than 100, 000 opening and closing cycles and more than 48 hours of salt spray testing
