Darkside 60cm (24") SATA 3.0 180° to 90° Data Cable with Latch - UV Red (DS-0084)
- Coming to you from the exotic distant reaches of Canada, these SATA Data cables are available in a variety of colors and designs
- These extension cables are available in sizes ranging from 12 to 18 with an option of 180 degree or 90 degree connectors for your unique system requirements
- Sleeved with the highest quality in mind, these cables are sure to attract attention amongst your party of modding pals.
- Coming to you from the exotic distant reaches of Canada, these SATA Data cables are available in a variety of colors and designs.
- These extension cables are available in sizes ranging from 12 to 18 with an option of 180 degree or 90 degree connectors for your unique system requirements.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

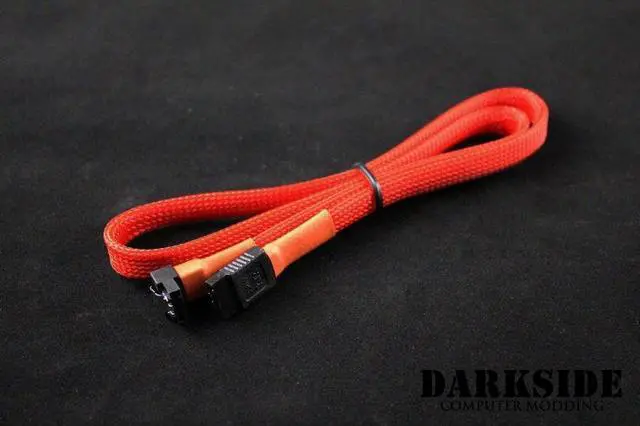

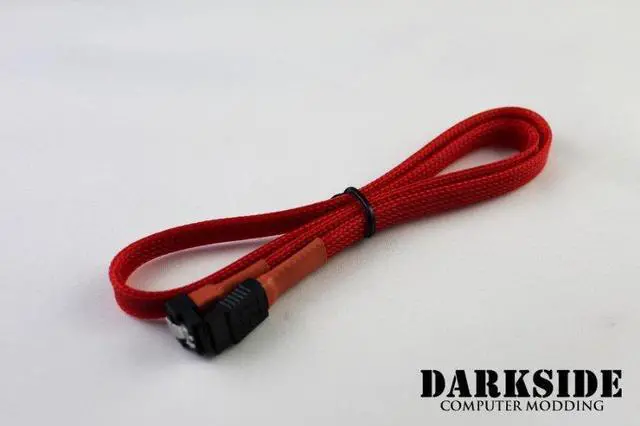

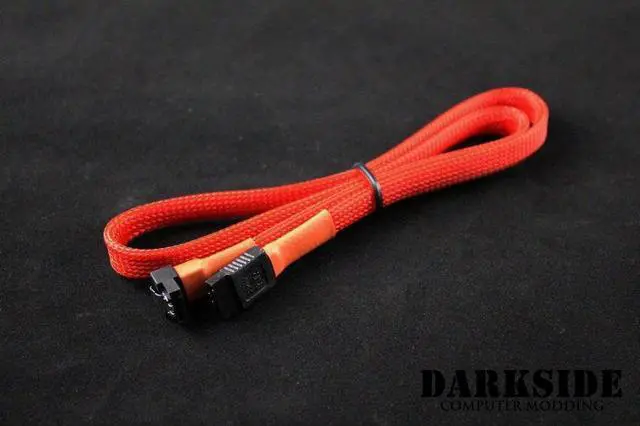

This DarkSide SATA 3.0 data cable connects a drive to a SATA port with a straight 180° connector on one end and a 90° angled connector on the other. It is 60 cm (24") long, both 7-pin connectors lock in with a latch, and the whole cable is sleeved in DarkSide HD sleeving in UV red for a clean, color matched build.
Properties
- Type: SATA data cable, 180° to 90°
- Standard: SATA 2.0 / 3.0 (up to 6 Gbps)
- Connectors: 2x 7-pin SATA data, female, with latch
- Length: 60 cm (24")
- Sleeving: DarkSide HD, UV Red
- Pieces in the pack: 1
Fast SATA 3.0 data link
The cable carries the 7-pin SATA data signal between a drive and a SATA port on the motherboard or a controller card. DarkSide makes it for SATA 2.0 and SATA 3.0: it runs at the full 6 Gbps of SATA 3.0 and works with SATA 2.0 (3 Gbps) drives and ports, so it suits hard drives, SSDs and optical drives alike.
Latching connectors
Both 7-pin connectors have a locking latch. The latch clicks into the port and keeps the plug from working loose when you route other cables or move the drive cage. Press the latch while you pull the plug to release it.
One straight, one angled connector
One end has a straight 180° connector, the other a 90° angled connector. The angled plug sits flat against a drive or close to a neighboring part, which helps where space next to the drive or the port is tight, for example behind the motherboard tray or in a drive cage.
Sleeved to match your build
The cable is sleeved end to end in DarkSide HD sleeving, finished with heatshrink at each connector, so the SATA run matches the DarkSide power cable extensions and sleeved cables in the same color. The UV red sleeving is UV reactive, so it glows under UV (blacklight) lighting.
Technical data
- Brand: DarkSide
- Type: SATA data cable
- Standard: SATA 2.0 (3 Gbps) and SATA 3.0 (6 Gbps)
- Connector 1: 7-pin SATA data, straight (180°), with latch
- Connector 2: 7-pin SATA data, angled (90°), with latch
- Length: 60 cm (24")
- Sleeving color: UV Red
- UV: UV reactive: glows under UV (blacklight) lighting
Notes
- DarkSide makes this cable in 30 cm (12"), 45 cm (18") and 60 cm (24") lengths and in several sleeving colors, and also with straight 180° connectors on both ends. This listing is the 60 cm UV Red 180° to 90° version.
- Check which way the angled plug has to point at your drive before you route the cable.
In the box
- 1x Darkside 60cm (24") SATA 3.0 180° to 90° Data Cable with Latch - UV Red
