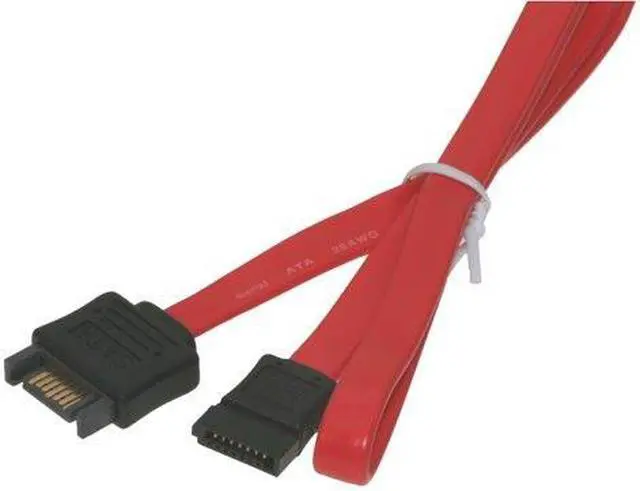

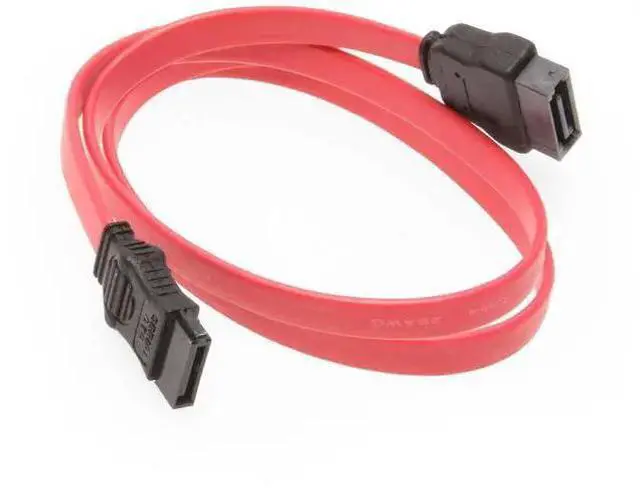

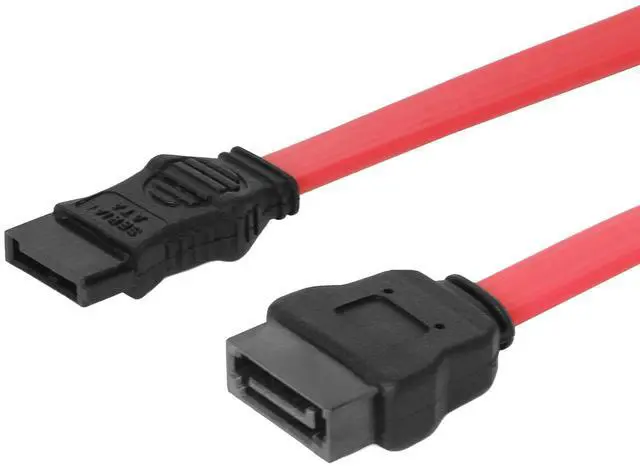

Coolgear 20 inch SATA to SATA Internal Extension Cable Male to Female

This cable provides a Male and Female Sata Port for Extending SATA I or SATA II Data Cables. A must have for all Tech Benches Hard Drive Service Centers and anyone that need to Extend SATA Cables.7-pin internal SATA extension cable female to male ...Serial ATA 150 Cable Cable for Serial ATA 150/300 hard drives

Specifications

• Serial ATA interface 1 device 12 or 20 inch Cable: [(26 AWG * 1P + A)+28AWG*2C]*2 AWM STYLE 2725 80 DEGREES CELSIUS 30V VW-1 Signal Pair
• Conductor: 26AWG Solid Tinned Copper
• Isolator: Foam PE or Foam PP
• Shielding: Hot Melt Aluminum Mylar Spirally Wrapped
• Drain Wire: 28AWG Solid Tinned Copper
• Jacket: 80 degree Celsius PVC OD 2.2mm*7.80mm +/- 0.2
• Connector Material Housing: Temperature polyester & glass fiber UL 94V-0
• Terminal: Copper Alloy Cover: ABS UL 94V-0
• Plating Contact area: 15u gold plated over 50u" Nickel
• High Frequency Character: Impedance: 100 +/- 15 ohms (Mated Connector)
• Attenuation: 6 dB Max from 10MHz ~ 4500 MHz
• Crosstalk(NEXT): -26dB Max from 10MHz~4500MHz
• Intra Pair Skew: 10 ps
• Max Rise Time: 85 ps Max
