Chenyang PCI-E 4.0 X1 Lane to U.2 U.3 Kit SFF-8639 Host Adapter for Motherboard PM1735 NVMe PCIe SSD

PCI-E 4.0 X1 Lane to U. 2 U. 3 Kit SFF-8639 Host Adapter for Motherboard PM1735 NVMe PCIe SSD

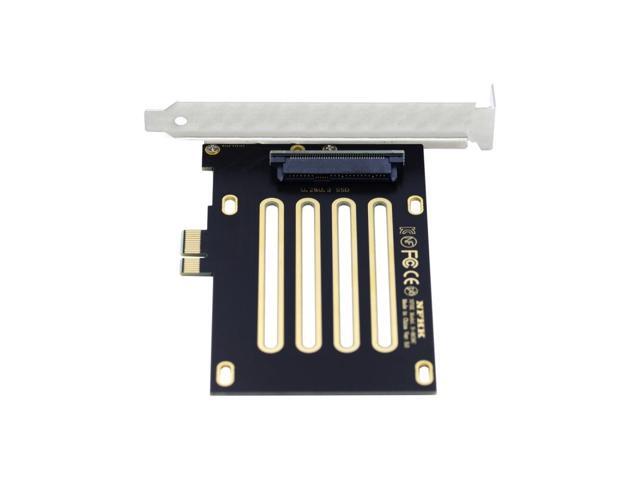

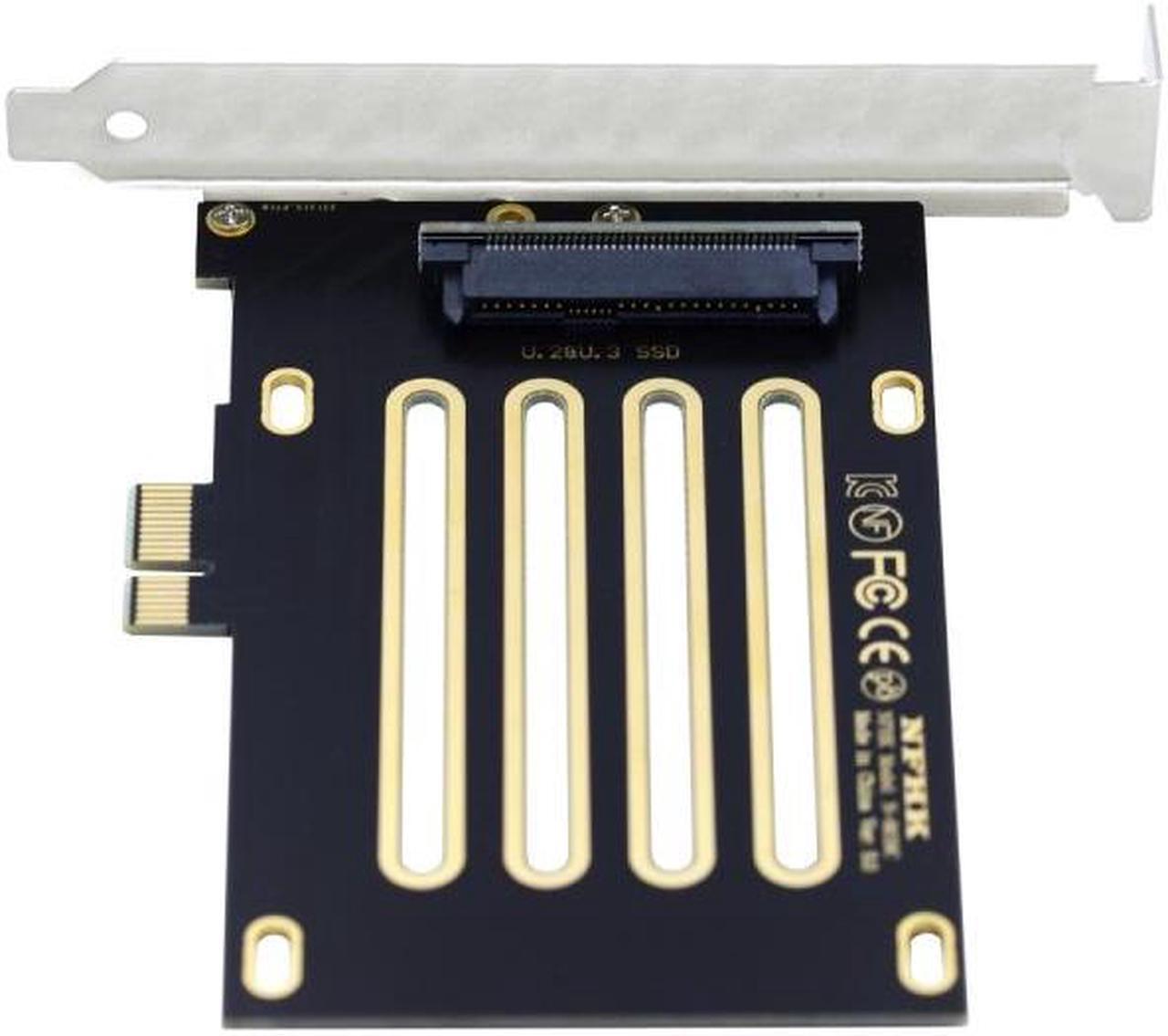

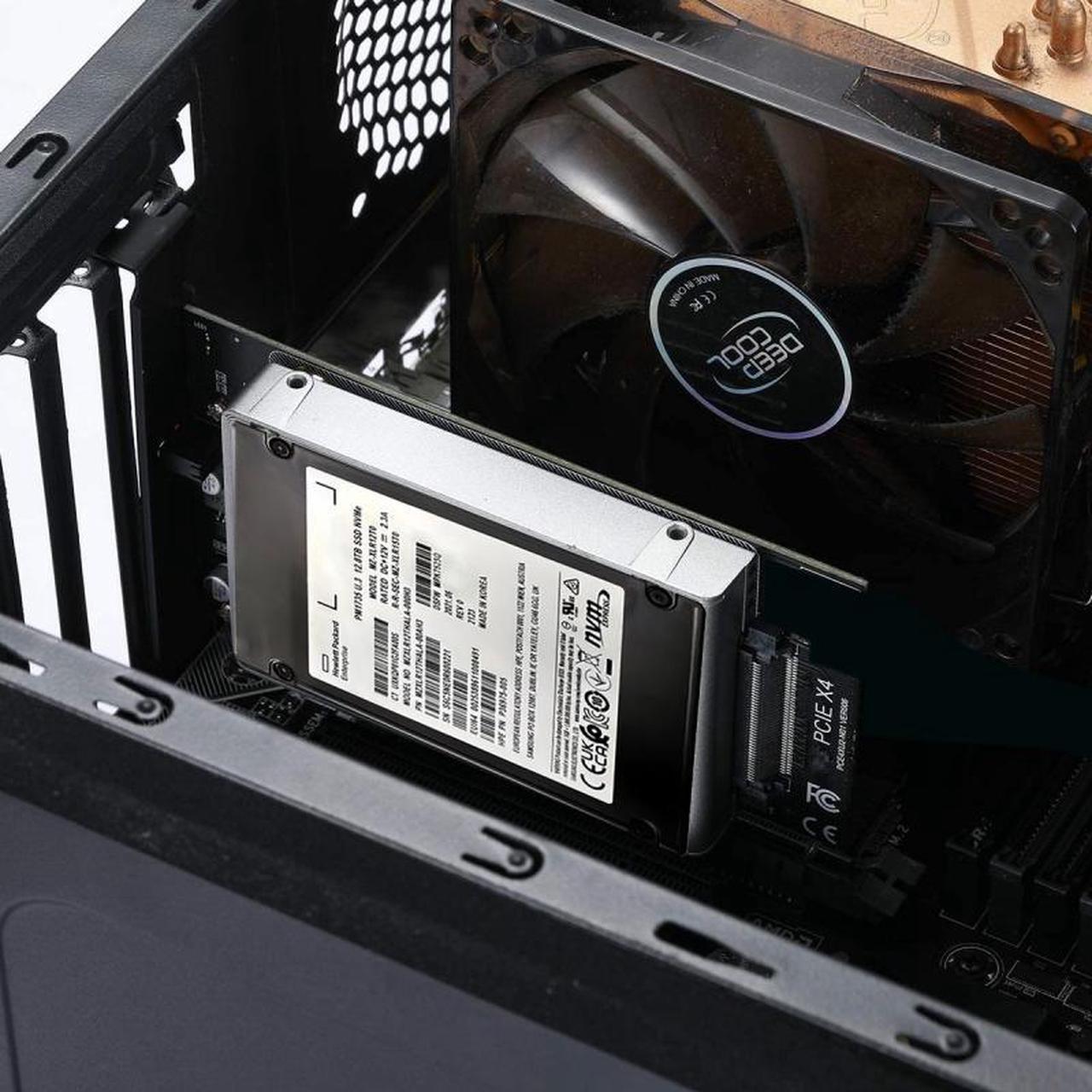

This PCI Express card expands the PC by one U. 2/U. 3 SFF-8639 interface. It can be connected e. g. the U. 2/U. 3 U3 PM1735  Series SSD.

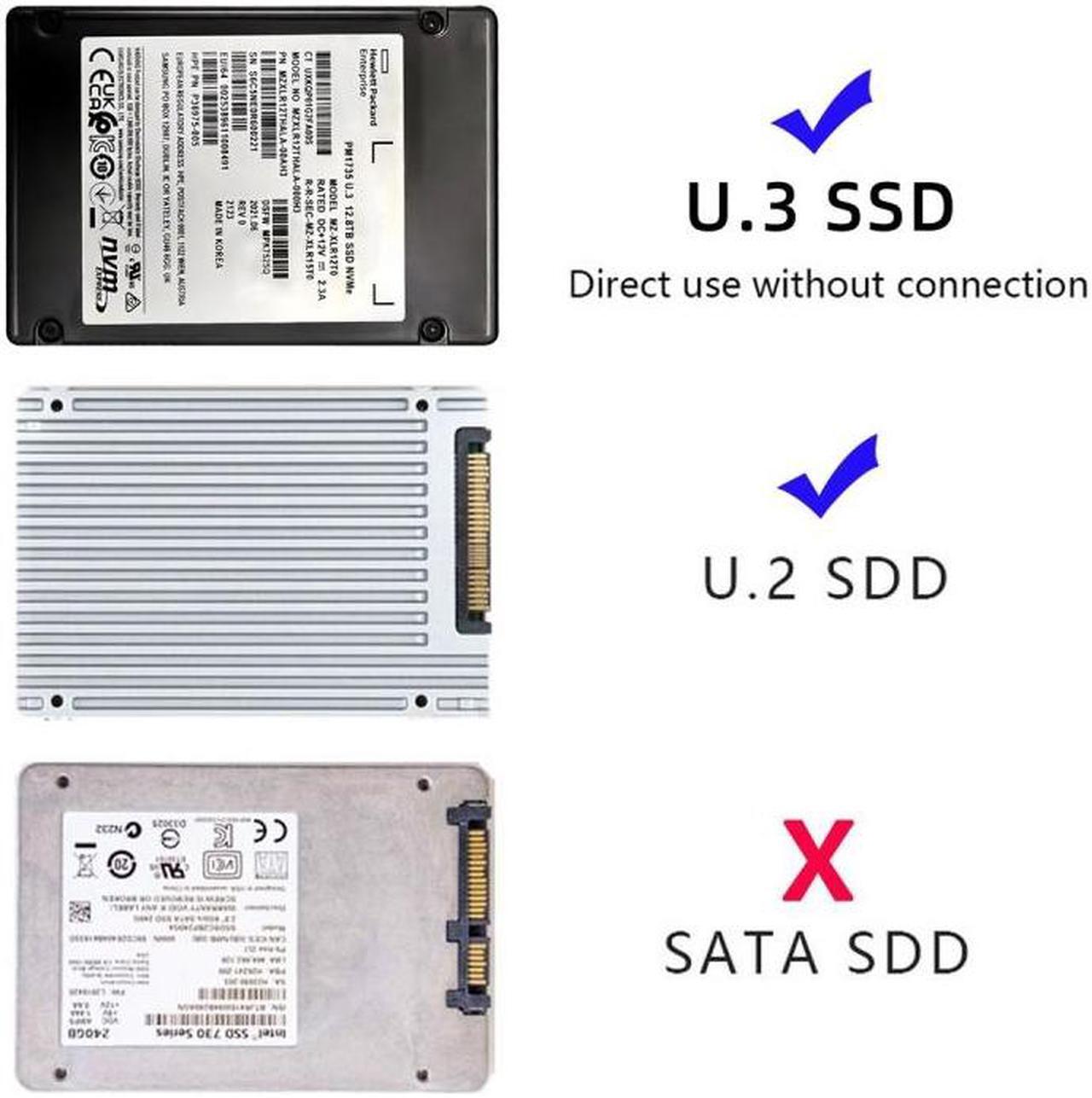

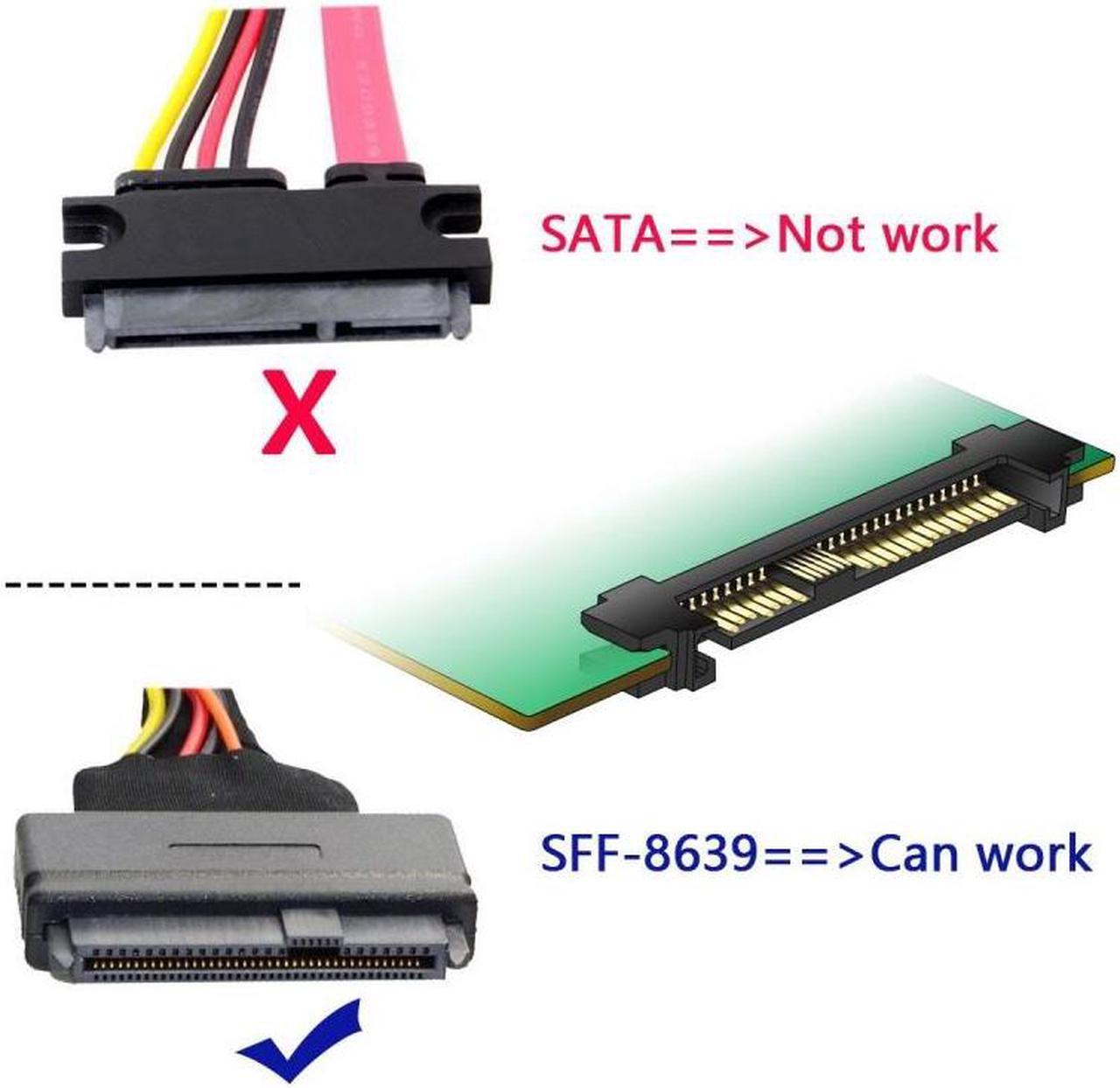

The pci-e 1x card work for U. 2 and U. 3 SSD, not work for SATA/SAS SSD.
The speed and other properties is not changed, only form conversion interface. Transparent to the operating system and does not require any software drivers.

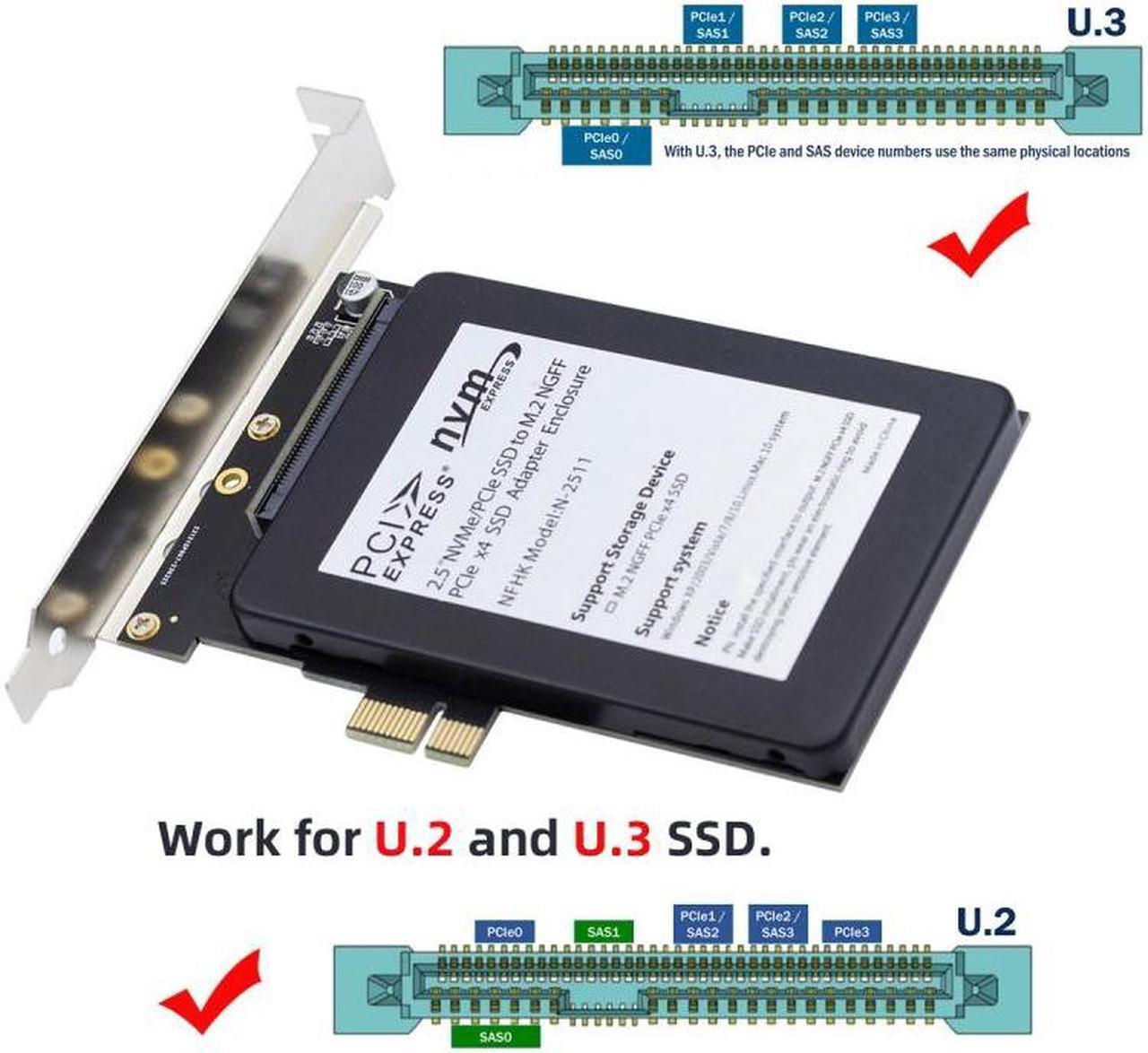

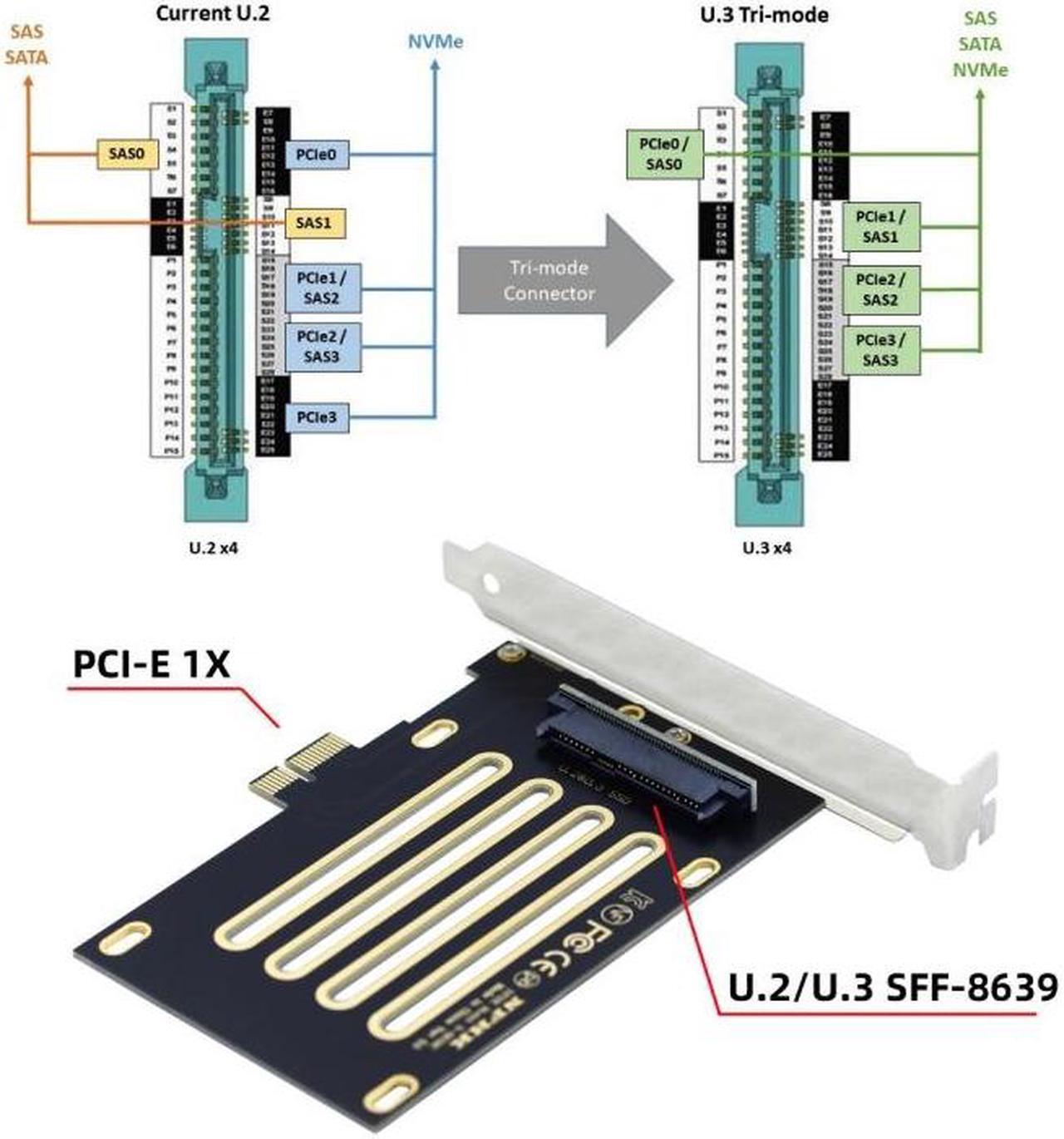

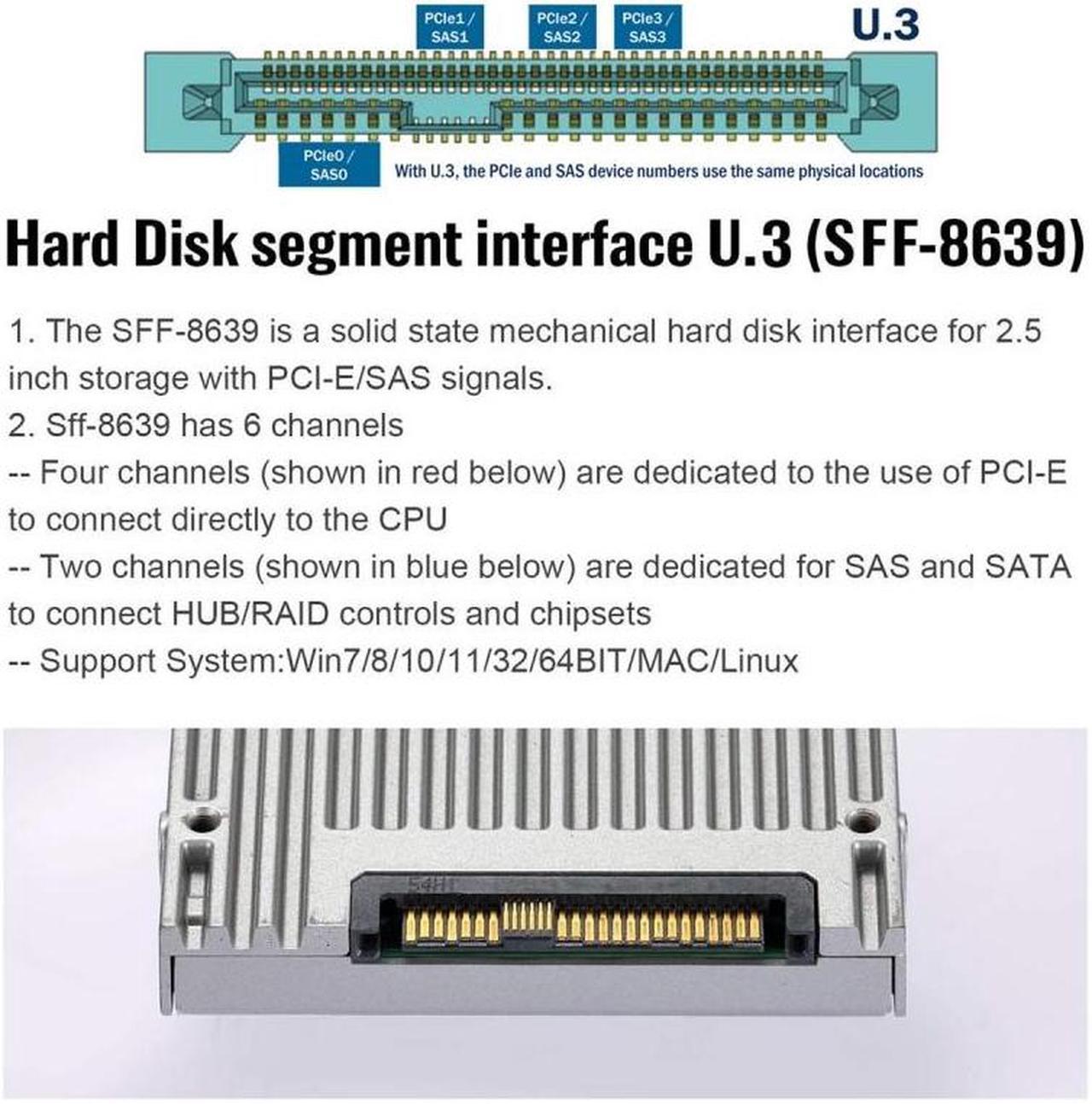

U. 3 is a Tri-mode standard, building on the U. 2 spec and using the same SFF-8639 connector. It  combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U. 3 can also support hot-swap between the different drives.
U. 3 drives are still backward compatible with U. 2, though— the U. 3 drives determine which  host type it is inserted  into  (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up.   U. 3 drives can still act as dual-port NVMe drives in supporting systems.
U. 2 drives are  not  compatible with U. 3 hosts.
