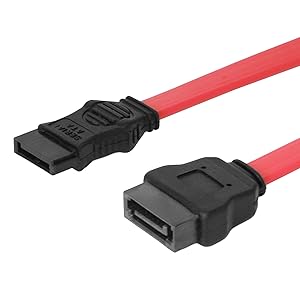

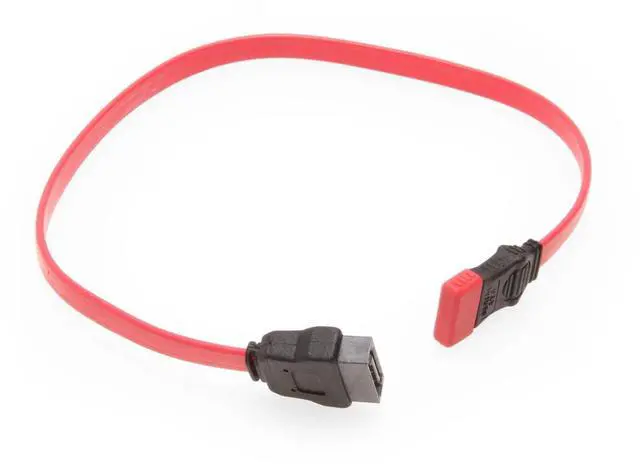

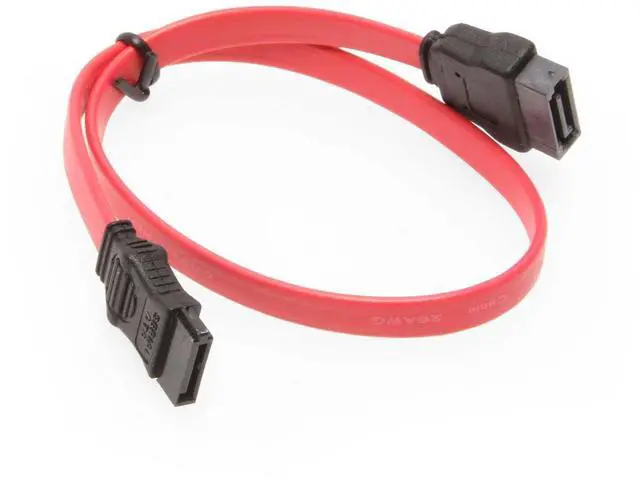

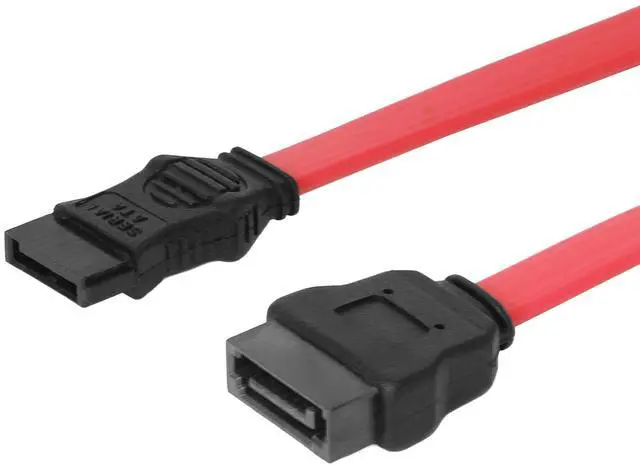

Coolgear SATA Male to Female Extension Cable (7 Pin) for SATA Drives, Hard Drives & More
This cable provides a Male and Female Sata Port for Extending SATA I or SATA II Data Cables. A must have for all Tech Benches, Hard Drive Service Centers and anyone that need to Extend SATA Cables.7-pin internal SATA extension cable, female to male ...Serial ATA 150 Cable Cable for Serial ATA 150/300 hard drives
Available in Multiple Lengths
Lengths: 12in., 20in.
This cable provides a Male and Female Sata Port for Extending SATA I or SATA II Data Cables. A must have for all Tech Benches, Hard Drive Service Centers and anyone that need to Extend SATA Cables.7-pin internal SATA extension cable, female to male ...Serial ATA 150 Cable Cable for Serial ATA 150/300 hard drives
Specifications
- Serial ATA interface 1 device, 12 or 20 inch Cable: [(26 AWG * 1P + A)+28AWG*2C]*2 , AWM STYLE 2725 80 DEGREES CELSIUS 30V VW-1 Signal Pair
- Conductor: 26AWG Solid Tinned Copper
- Isolator: Foam PE or Foam PP
- Shielding: Hot Melt Aluminum Mylar Spirally Wrapped
- Drain Wire: 28AWG Solid Tinned Copper
- Jacket: 80 degree Celsius PVC OD 2.2mm*7.80mm +/- 0.2
- Connector Material Housing: Temperature polyester & glass fiber , UL 94V-0
- Terminal: Copper Alloy Cover: ABS, UL 94V-0
- Plating Contact area: 15u" gold plated over 50u" Nickel
- High Frequency Character: Impedance: 100 +/- 15 ohms (Mated Connector)
- Attenuation: 6 dB Max from 10MHz ~ 4500 MHz
- Crosstalk(NEXT): -26dB Max from 10MHz~4500MHz
- Intra Pair Skew: 10 ps
- Max Rise Time: 85 ps Max
