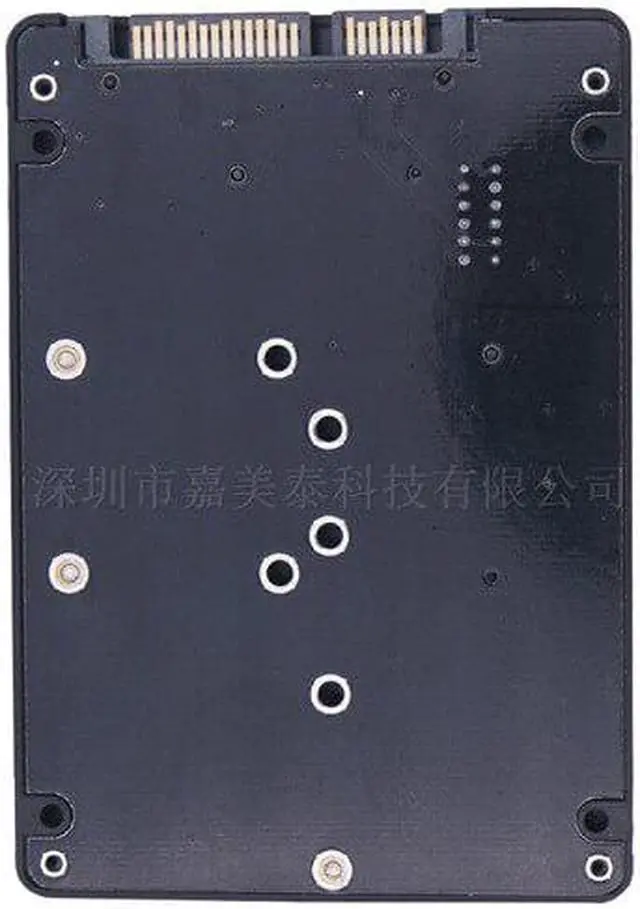

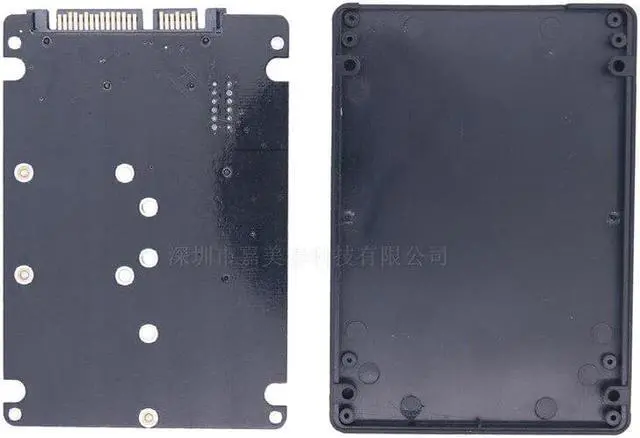

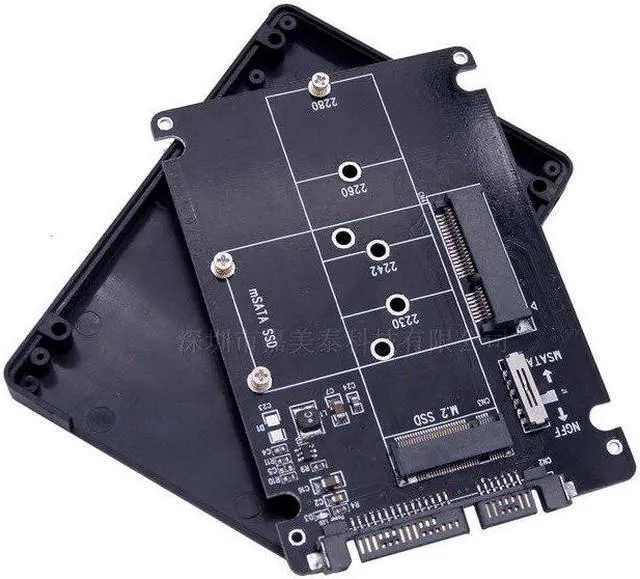

M.2 NGFF To SATA Solid State Hard Drive Adapter Card Two In One Bkey B+m Key Expansion Board Hard Disk Box HDD Enclosure

M.2(NGFF) and two-in-one to SATA 3 hard disk enclosures

note:

It is not possible to insert two SSDs at the same time, only one SSD can be recognized at a time.

NGFF part of this adapter card is only suitable for B-key or B/M-key interface, not for M-key interface

1. Support M.2 NGFF or SSD solid state drive conversion to SATA2.5"/3.5" hard drive use

2. Fully compatible with the SATA3.1 standard, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards, SATA3.1 standards

3. Compatible with the PCI Express M.2 protocol, the agreement

4. NGFF and SSD allow input voltage of 3.3V, the maximum current is 3A, this adapter card has no chip, and there is no speed. It only plays a role of transfer. The speed is related to the SSD itself.

5. Support 80mm 60mm 42mm 30mm M.2 NGFF SSD

6. Support full-height and half-height size SSDs

Switch toggle design

NGFF mode switch upwards

mode switch down

Size: 100X68X9mm

Weight: 32g
