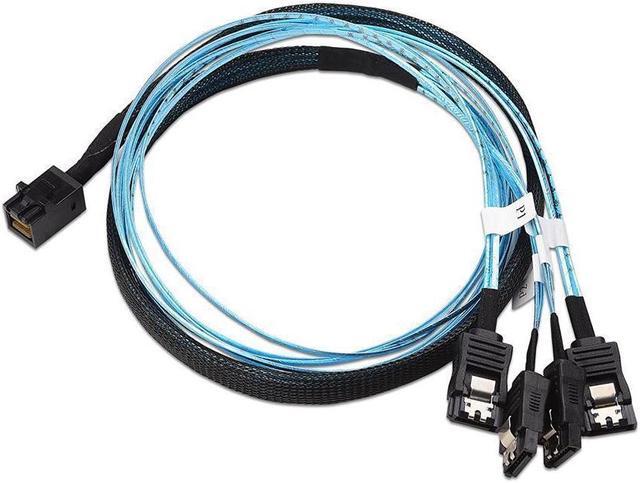

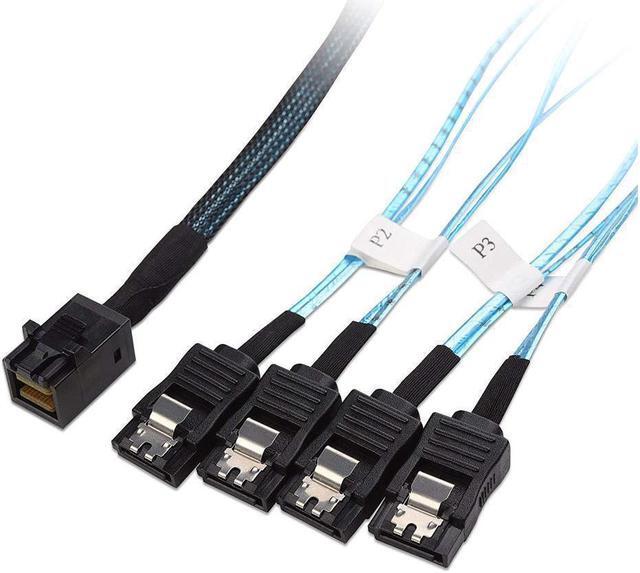

Internal Mini SAS HD to SATA Cable (SFF-8643 to SATA Forward Breakout) 3.3 Feet, 1m

Internal Mini SAS HD to SATA Cable (SFF-8643 to SATA Forward Breakout) 3.3 Feet, 1m



Item Condition: New

Matters Item model number: 104031-1m Product Information - INTERNAL HD MINI SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug - HYBRID HIGH DENSITY SAS TO SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system - FORWARD FAN-OUT CABLE has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection - MULTI-LANE 8643 to SATA CABLE with 4 channels can drive 4 SATA drives; Supports multiple lanes of high speed SATA traffic over a single cable; SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers - FLEXIBLE DESIGN of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration Connect More with SAS & SATA Cabling Products High Density Storage Migration Solution Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network.

It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use. Robust Construction with a Lifetime Warranty The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case. A lifetime warranty is included with this HD Mini SAS to SATA cable for peace of mind when purchasing. Important Notes - Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives - Data transfer speed is determined by the capabilities of your SAS controller and SATA drives Cable

Specifications

-

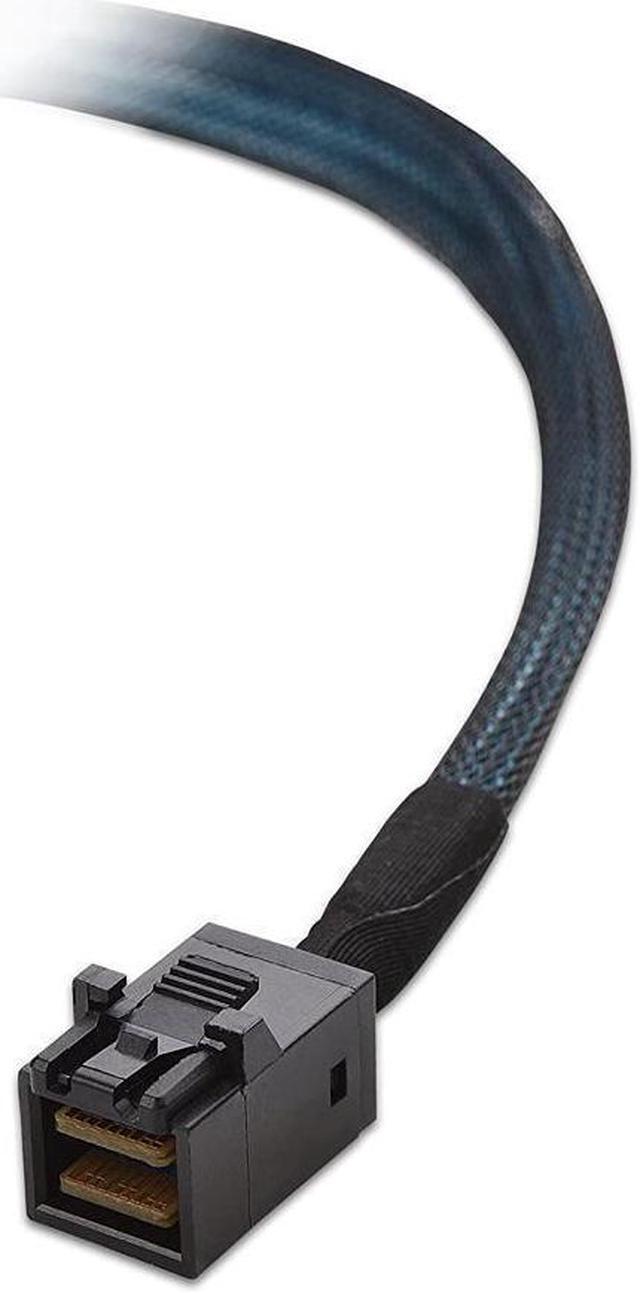

Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch -

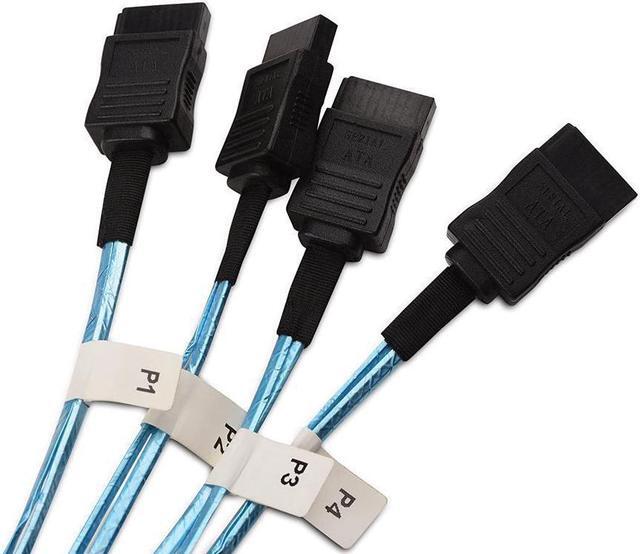

SATA Drive Connections: 4 x 7 pin SATA receptacle female with latch - Wire - 30 AWG Style 207044 flat ribbon cable - Compatible with 2.5", 3.5" SATA I, II, III hard drives - RoHS compliant
