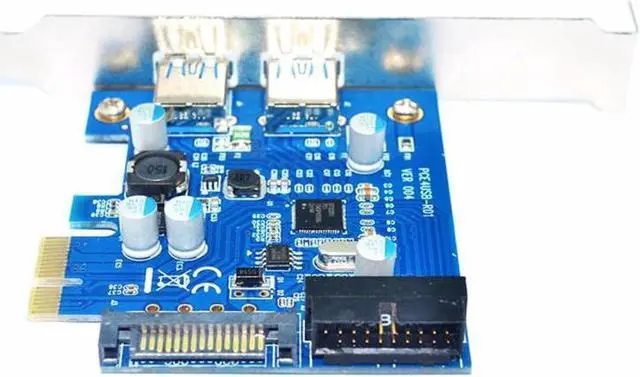

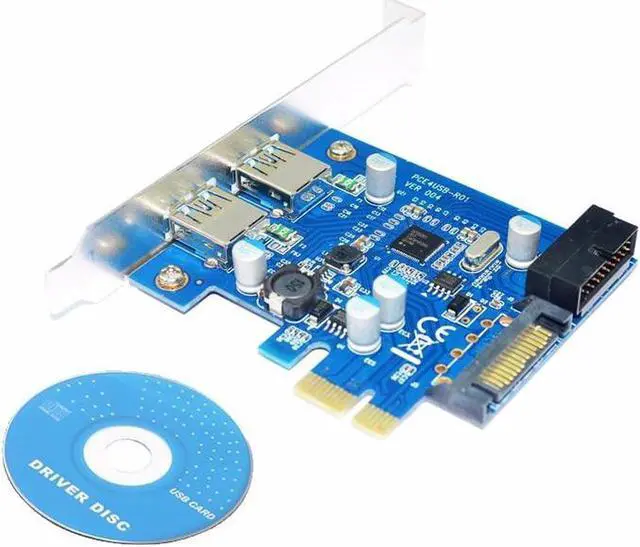

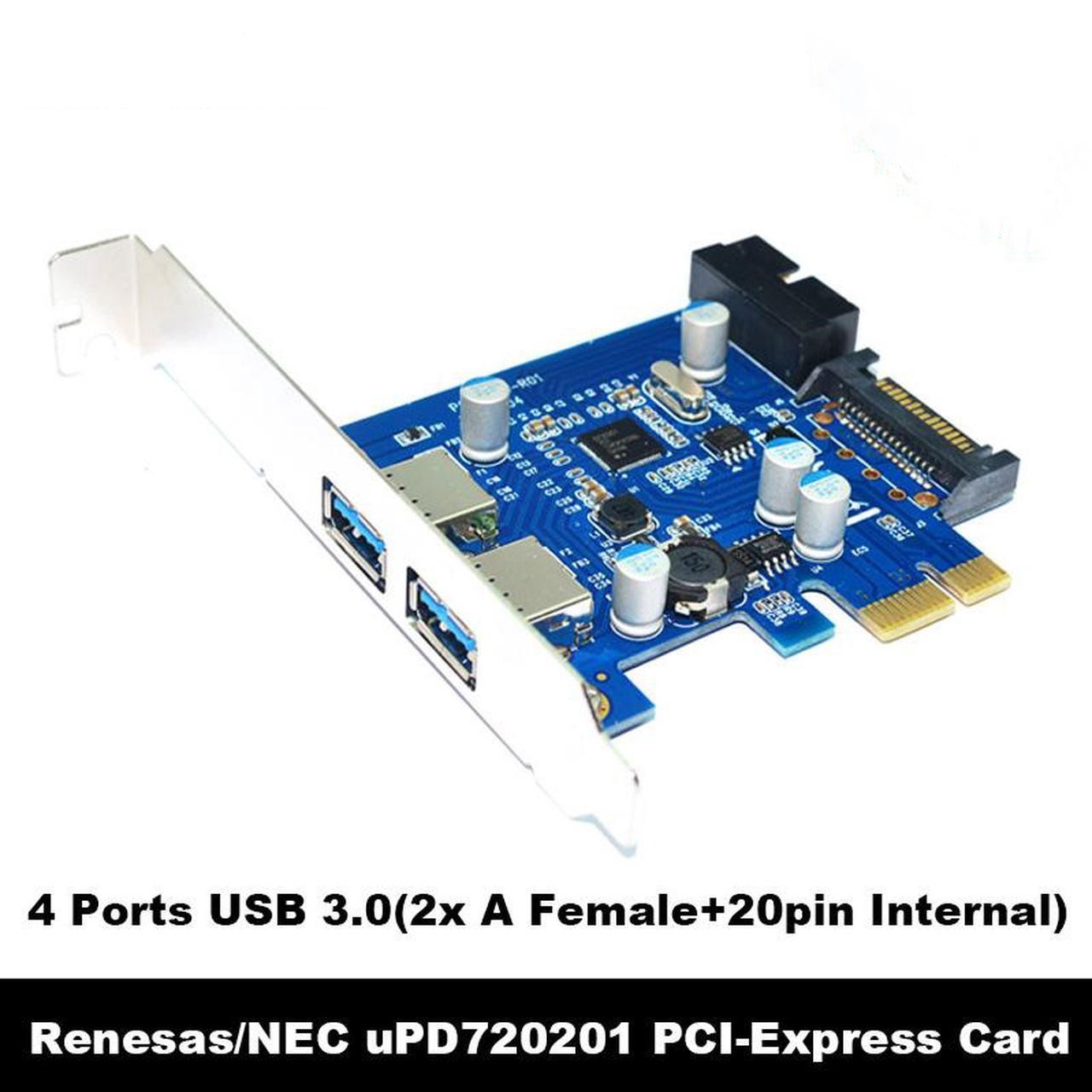

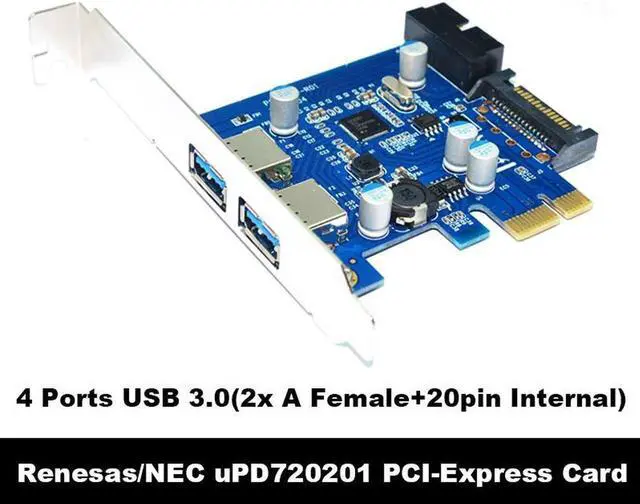

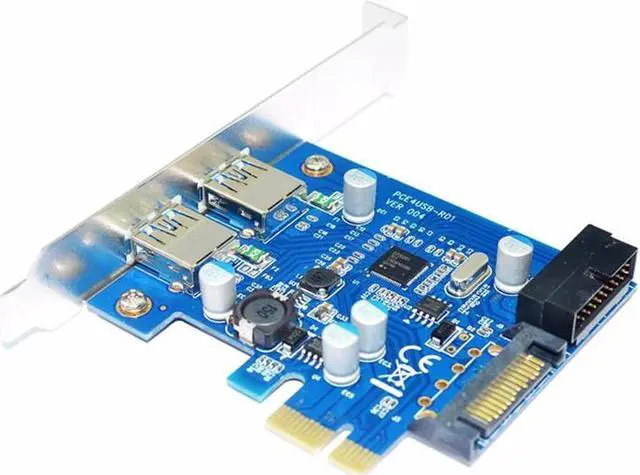

Four-Port USB 3.0 PCIe Add-on Card
- Instantly add four USB 3.0 ports (two external ports, and two via 20-pin header) to your desktop via an available PCIe slot. And thus you can enjoy the blazing fast speed of USB peripherals at transfer rate of up to 5 Gbps.
- The card's PCIe 2.0 x1 host interface offers up to 5 Gbps bus bandwidth to match USB 3.0 standard.

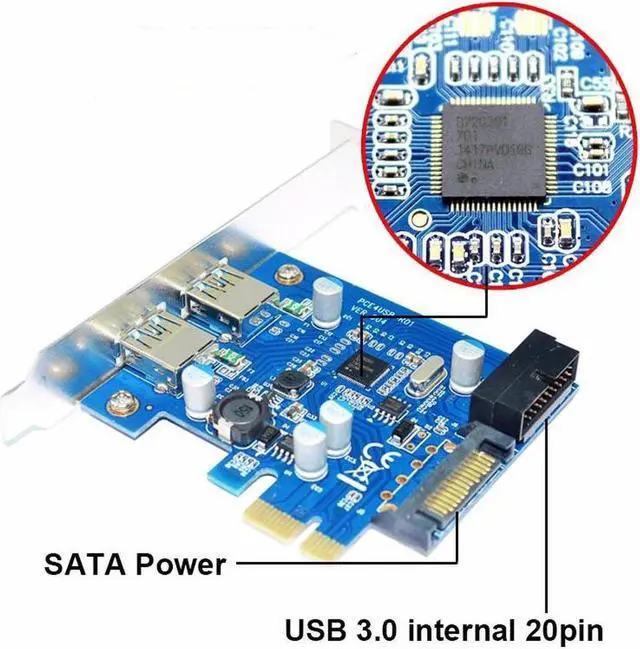

- In addition to drawing power from PCIe slot, this card also has a built-in 15-pin SATA power connector for enhanced power supply to handle power-hungry devices.
SPECIFICATION
| Type | PCIe to USB 3.0 Expansion Card |
|---|---|
| Input | PCIe x1 Slot, Compatible with PCIe x1,x4,x8,x16 Slot |
| External Output | 2 x USB 3.0 Type-A Female |
| Internal Output | USB 3.0 Internal 20Pin Header |
| Power | PCIe Slot |
| Enhanced Power Interface | SATA Power Interface |
| Data Transfer Speed | 5Gbps |
| Chipset | NEC UPD720201 |
| PCI-Express Spec | Compatible with PCI-Express 2.0 standard |
| XHCI Spec | Compatible with XHCI specification 1.0 |
| OS Request | Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux |
| Installation | Full-Profile PCI Bracket |
| Package Contents | PCIe to USB 3.0 Card, CD Driver |
