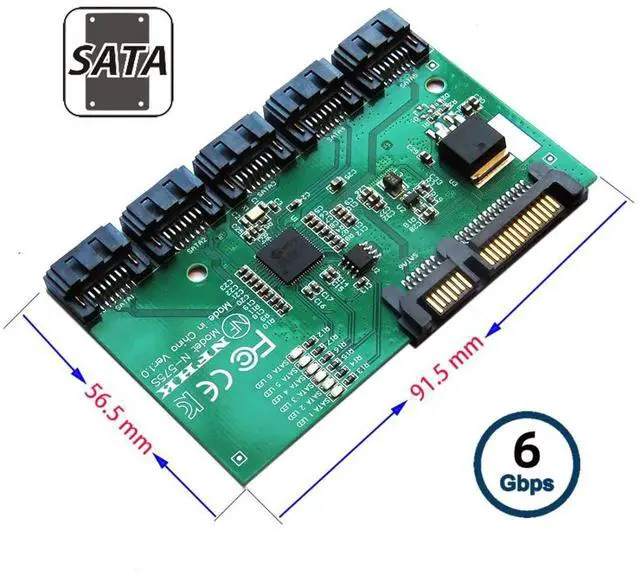

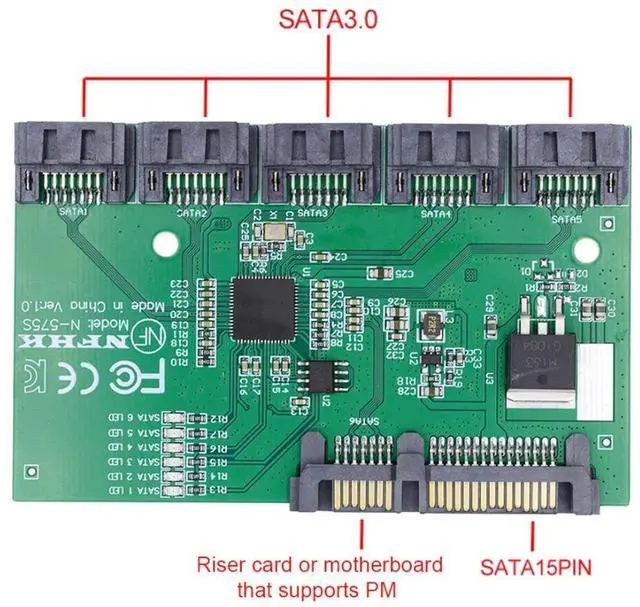

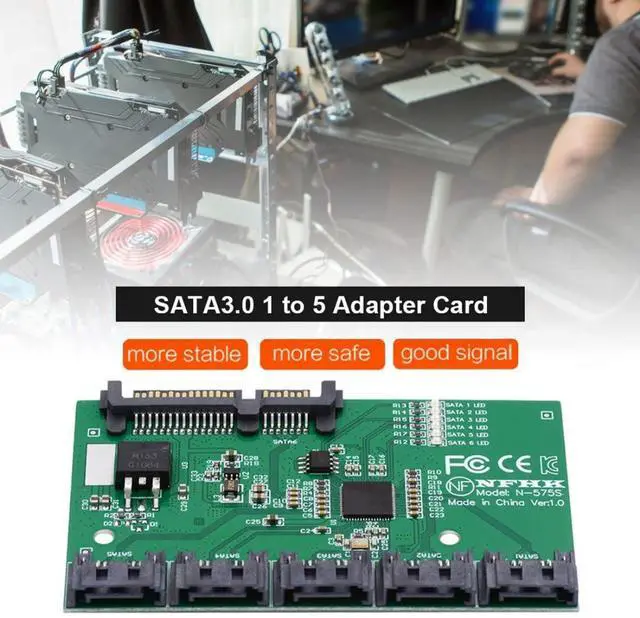

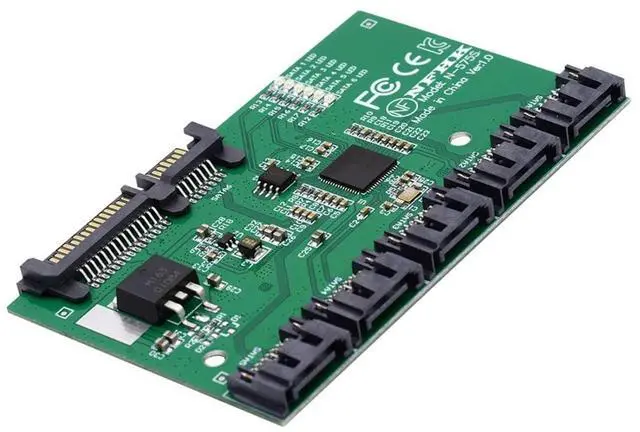

Vszerda SATA 3.0 Splitter - 1 to 5 Ports Adapter, HUB Converter, PM Multiplier, Port Selector JMB575
Limited time offer, ends 01/24 By YuXuan Technology
- Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
- The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
- JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
- Main control chip: JMB575.Interface: 5 * SATA3.0 interface.Applicable slot: SATA port with PM function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

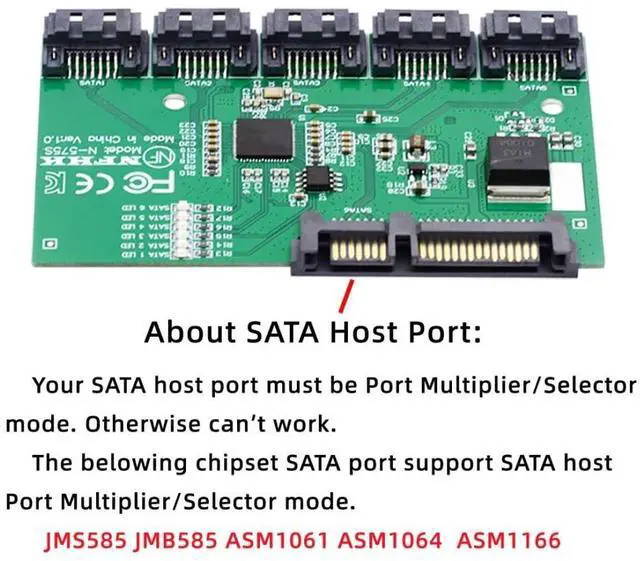

Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
Key Features: Comply with Serial ATA Port Multi Spec. Revision 1.2, Comply with Serial ATA Port Select Spec. Revision 1.0, Support 5 port SATA 6Gbps interface, Supports BIST and loopback mode, Support command-based and FIS-based switching, Support PM aware and non-PM aware host,
Main control chip: JMB575.Interface: 5 * SATA3.0 interface.Applicable slot: SATA port with PM function.
Product information
| Brand | Vszerda |
| Hardware Interface | SATA 3.0 Gb/s |
| Style | Classic |
| Item Weight | 0.02 Kilograms |
| Compatible Devices | SSD |
| Item model number | CY-SA-054 |
| Operating System | Windows, macOS, Linux |
| Product Dimensions | 3.94 x 3.94 x 0.39 inches |
| Item Dimensions LxWxH | 3.94 x 3.94 x 0.39 inches |
| Color | 1 22Pin SATA to 5 7Pin SATA |
| Manufacturer | Vszerda |
| Country of Origin | China |
| Date First Available | March 16, 2023 |
