Anicorn Weastlinks PCI-Express PCI-e To USB 3.1 Type-C Riser Post Card PCIe to USB-C USB3.0+19PIN Front USB Miner Expansion Adapter Card

Features:
Name: TYPE-C + USB 3.0 + 19PIN Expansion Board

Type: USB 3.1 PCI-E Card.

Interface: USB 3.1 interface.

Master chip: ASMedia ASM1042A+GL35XX.

System support: WinXP/Vista/Win7/Win8/WIN10 32bit/64bit MAC 10.8.


1.
Input interface: using the latest USB 3.1 Type-C interface
2. USB 3.1 Type-C interface is approximately 8.25 * 2.4 mm
3. USB 3.1 Type-C interface contains 24pin terminal, support positive and negative plug


4. Data transfer rate can reach USB 3.1 GEN 1 5Gbps


5. With SATA 15PIN taking electrical interface.

6.

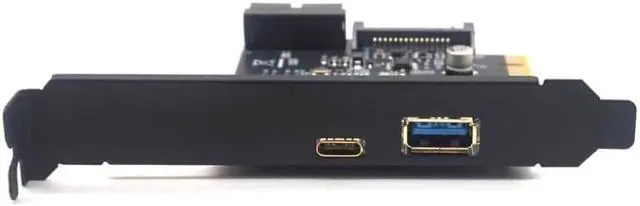

Output interface:
Function 1: 1 x TYPE-C GEN1 interface
Function 2: 1 x Front 19PIN interface
Function 2: 1 x USB 3.0 interface

USB 3.1 out, the speed is very fast, but the ordinary hard drive simply not so fast speed, must use SSD to achieve so fast speed, and just out of the price is very expensive, for this situation, we launched to USB3. 1 GEN1 5G version of the TYPE-C expansion card for everyone to try to experience the positive and negative card.

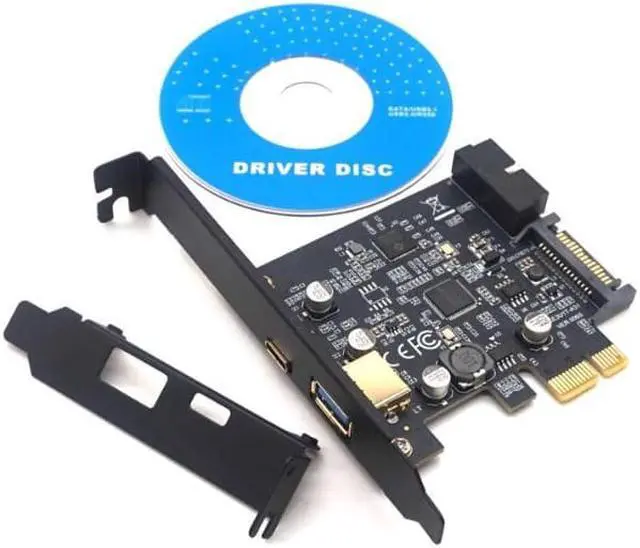

Package included:
1 x PCI Express Card
1 x CD Driver
