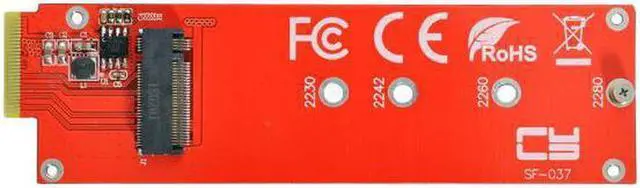

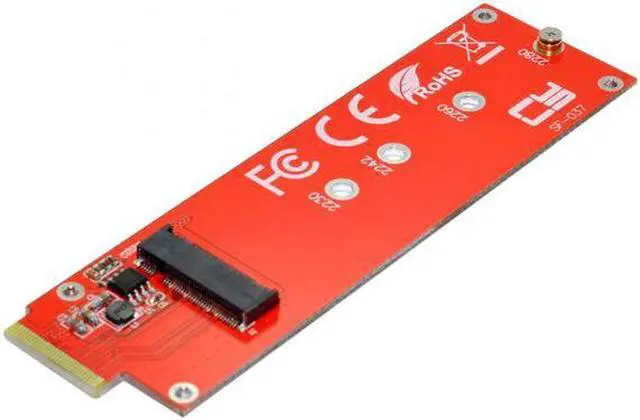

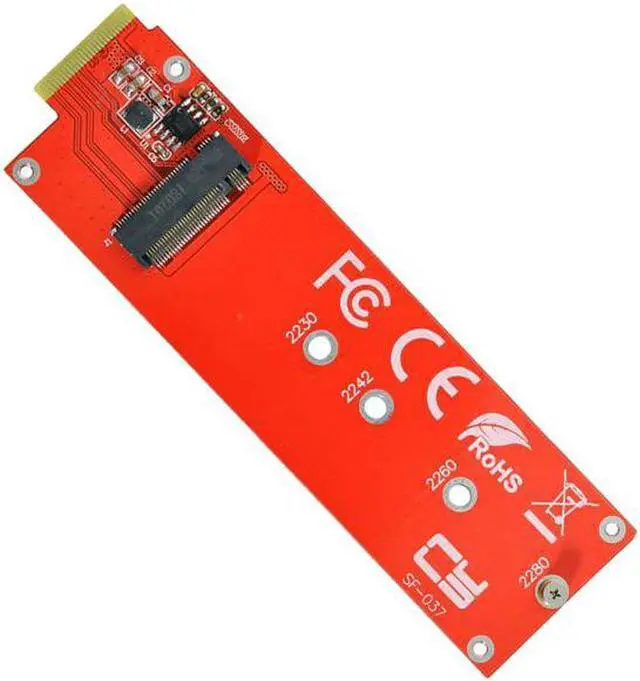

Aomoproing NVMe NGFF M-key 4X Host Adapter to Ruler 1U GEN-Z EDSFF Short SSD E1.S Carrier Adapter
- NVMe NGFF M-key 4X Host Adapter to Ruler 1U GEN-Z EDSFF Short SSD E1.S Carrier Adapter
- This converter enables the connection of a M.2 SSD in 2280 and 2260/2242/2230 format.
- The converter can be installed into your system internally through the EDSFF E1.S interface.

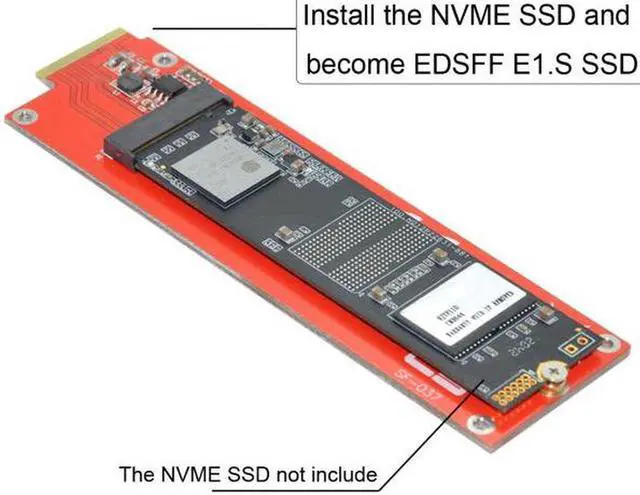

- Thus an M.2 SSD becomes an EDSFF E1.S SSD, which can be used in IoT, data center and server area.

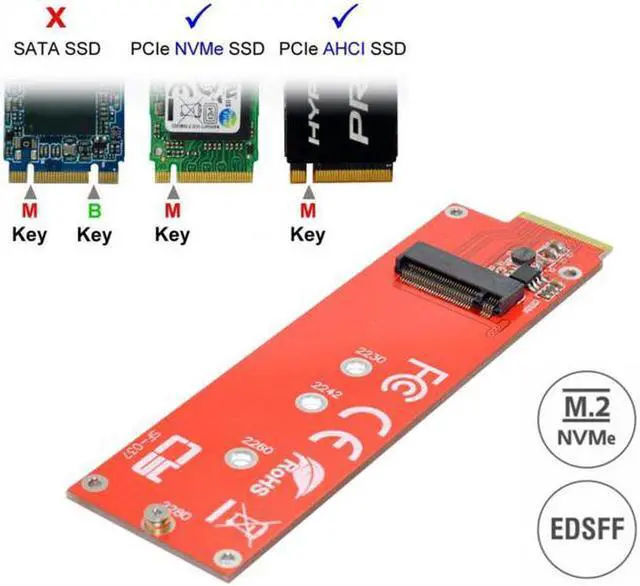

- Supports M.2 modules with key M or key B+M based on PCIe
- Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.

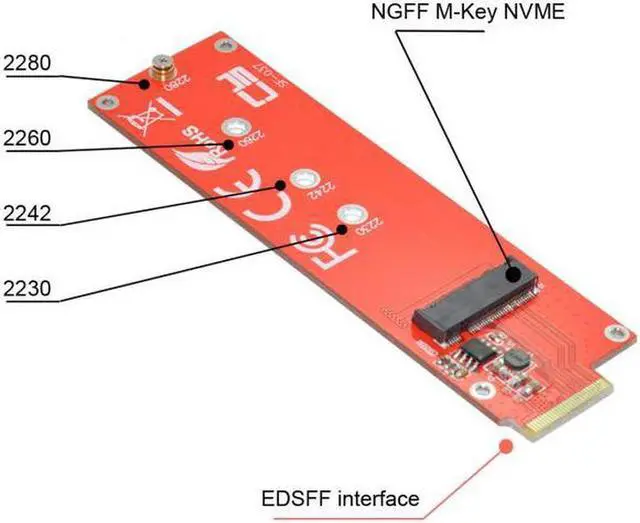

- Connectors: 1 x EDSFF E1.S male 1 x 67 pin M.2 key M slot
- Interface: PCIe x4 Rev. 4.0
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NVMe NGFF M-key 4X Host Adapter to Ruler 1U GEN-Z EDSFF Short SSD E1. S Carrier Adapter
This converter enables the connection of a M. 2 SSD in 2280 and 2260/2242/2230 format.
The converter can be installed into your system internally through the EDSFF E1. S interface.
Thus an M. 2 SSD becomes an EDSFF E1. S SSD, which can be used in IoT, data center and server area.
Supports M. 2 modules with key M or key B+M based on PCIe
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.
Connectors: 1 x EDSFF E1. S male 1 x 67 pin M. 2 key M slot
Interface: PCIe x4 Rev. 4.0
This converter enables the connection of a M. 2 SSD in 2280 and 2260/2242/2230 format.
The converter can be installed into your system internally through the EDSFF E1. S interface.
Thus an M. 2 SSD becomes an EDSFF E1. S SSD, which can be used in IoT, data center and server area.
Supports M. 2 modules with key M or key B+M based on PCIe
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.
Connectors: 1 x EDSFF E1. S male 1 x 67 pin M. 2 key M slot
Interface: PCIe x4 Rev. 4.0
