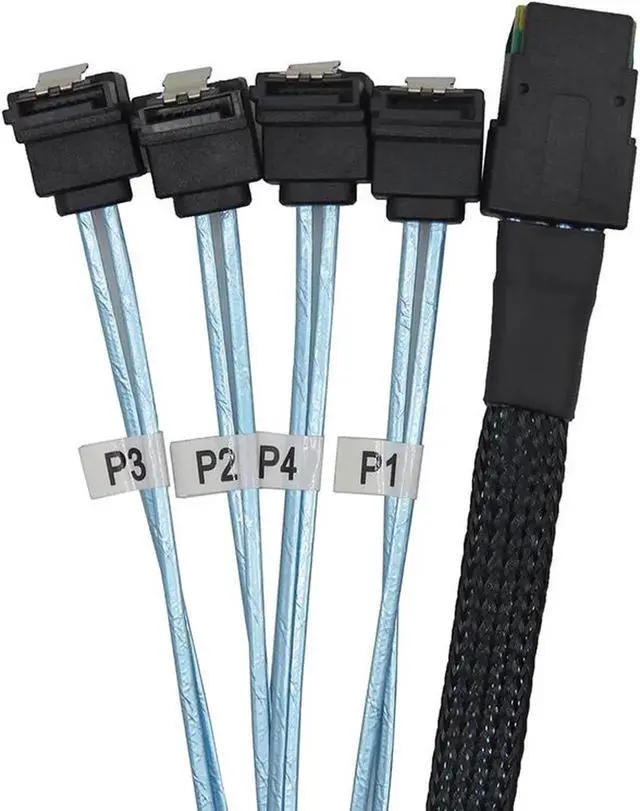

JAENFONG Internal Mini SAS to 4 x Right Angle SATA Cable (SFF-8087 to SATA Forward Breakout),Mini SAS Host/Controller to 4 SATA Target/Backplane-3.3ft

Features

Internal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access.

Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives

Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector

Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters

Supports up to 6Gbs data transfer rate per drive

Woven mesh sheath covers half of the cable for easy routing;

P1 to P4 markers provide easy ID after installation

SPECIFICATION

Type: SFF-8087 to 4X SATA Forward Cable

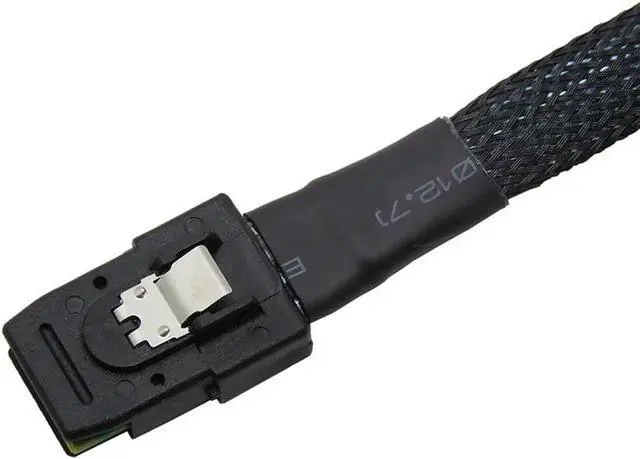

Connector-A: SFF-8087 Male with Latch Locking for Host

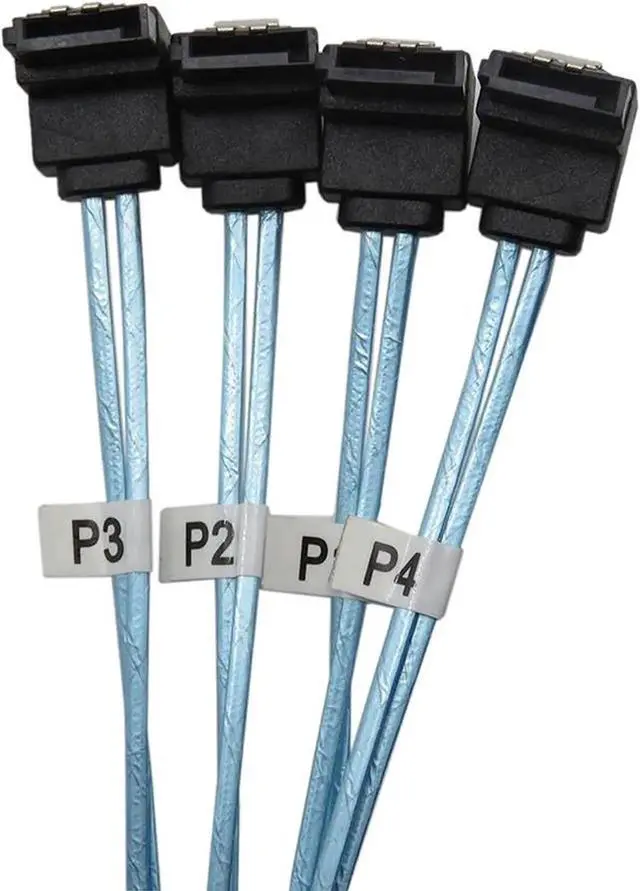

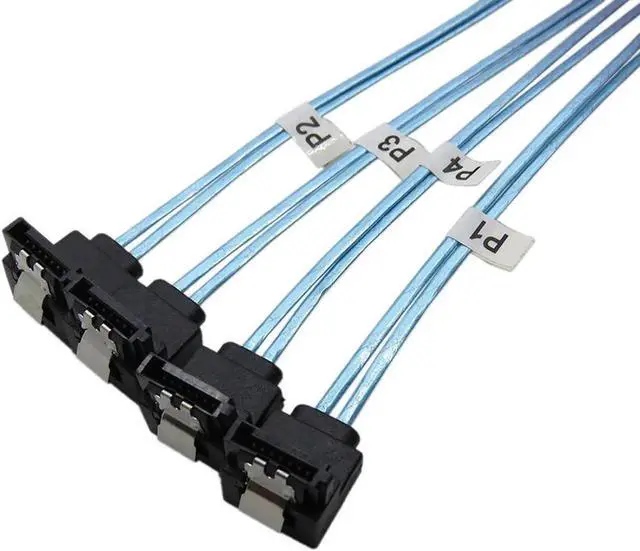

Connector-B: Angled 4x SATA Female with Latch Locking for target

Data Transfer Speed: 6Gbps per Port

Cable Length: 3.3 Feet

Cable Color: Blue Cable with Black Sleeved
