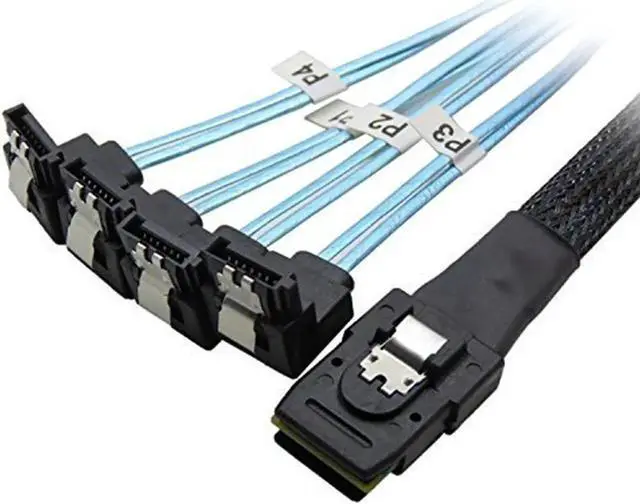

JAENFONG I nternal Mini SAS 36pin SFF-8087 Host/Controller to 90 Degree 4 x SATA 7pin Target/Backplane Forward Breakout Cable w/Net Jacket 1m
Limited time offer, ends 02/18 By Smart core
- 6Gb/s bandwidth
- Drain Wire: Tinned Copper, 30 AWG
- Mini SAS 36 Male Connect to the Controller, 4x SATA Connect to the backplane.
- SFF-8087 Male is Host, 4 x SATA female is target/HDD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Internal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access.

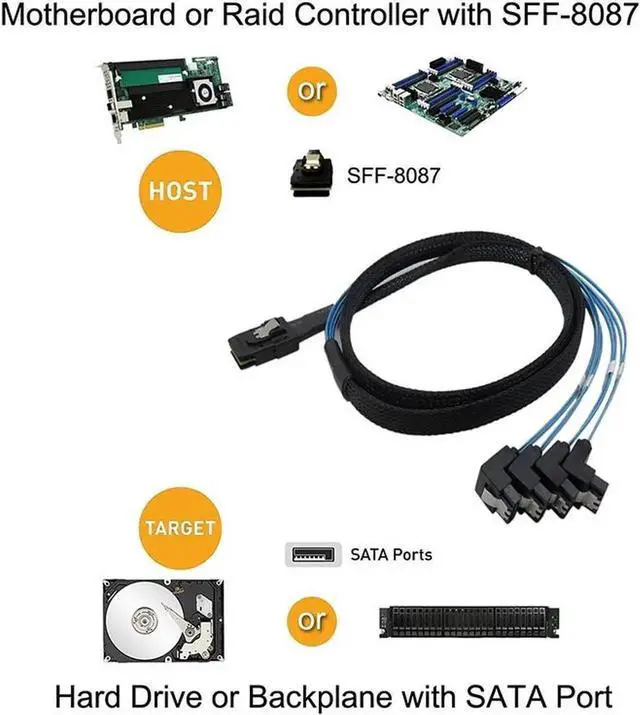

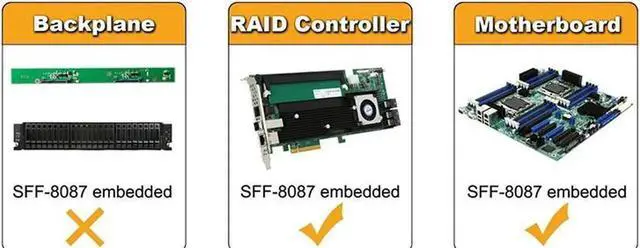

Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives
Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector
Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters
Supports up to 6Gbs data transfer rate per drive
Woven mesh sheath covers half of the cable for easy routing;

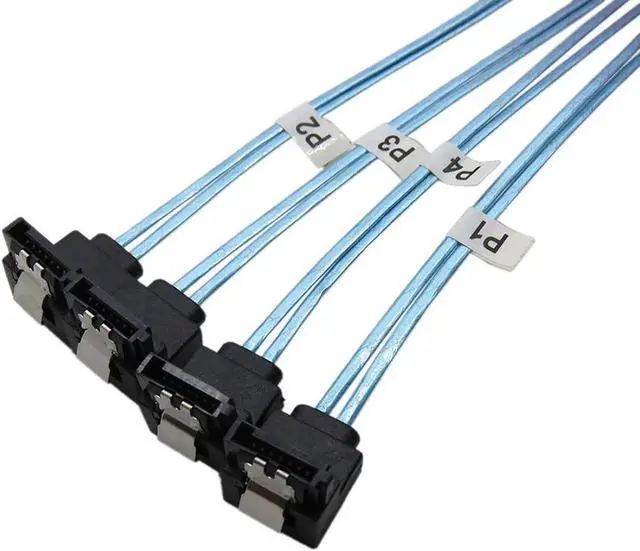

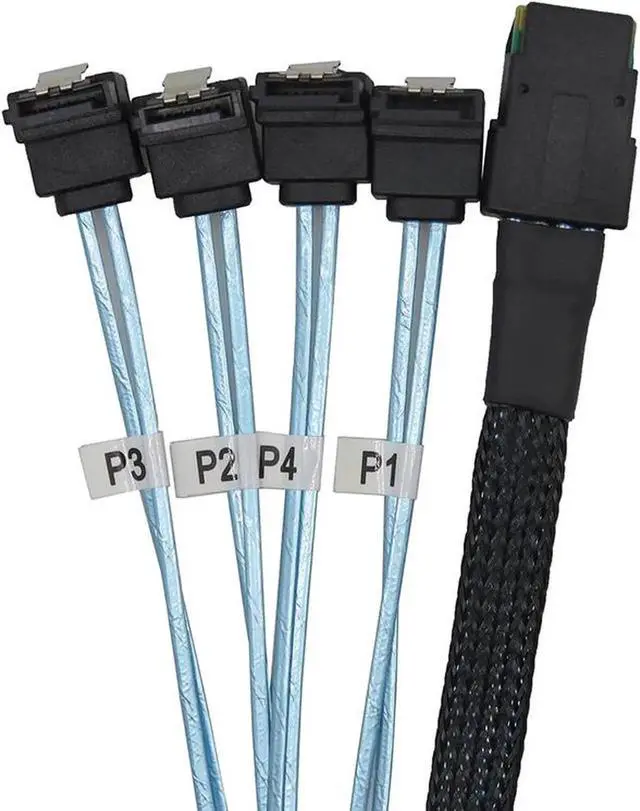

P1 to P4 markers provide easy ID after installation
SPECIFICATION
Type: SFF-8087 to 4X SATA Forward Cable
Connector-A: SFF-8087 Male with Latch Locking for Host
Connector-B: Angled 4x SATA Female with Latch Locking for target
Data Transfer Speed: 6Gbps per Port
Cable Length: 1.64 Feet
Cable Color: Blue Cable with Black Sleeved
