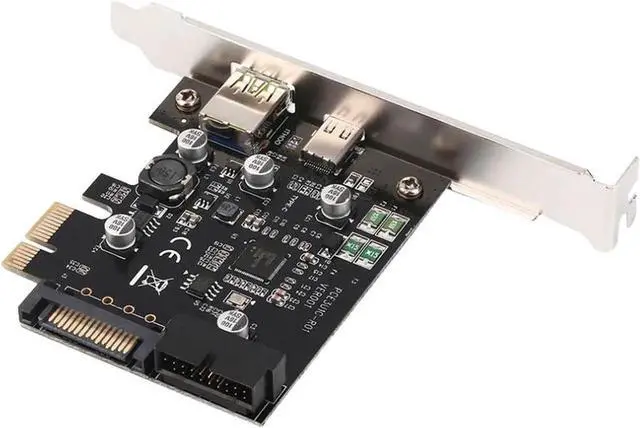

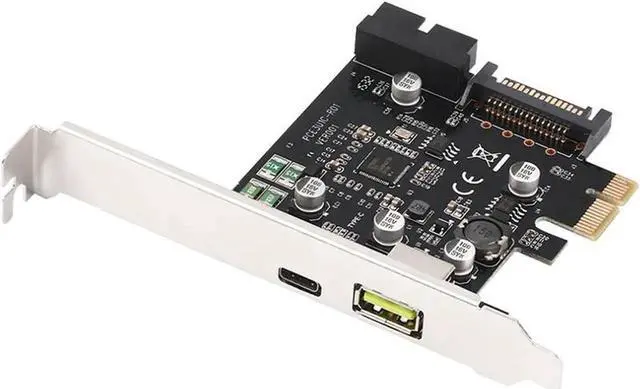

JAENFONG PCIe Express Card to USB 3.0 Type-C w/ 2.4A Quick Charging and 19Pin USB 3.0 Dual,Port Power by 15pin SATA

Features:

Compatible with PCI-Express 2.0 stardard

Compatible with Super Speed USB 3.0 5Gbps stardard, backwards to USB 2.0 and USB 1.1

Compatible with XHCI specification 1.0

Over current protection

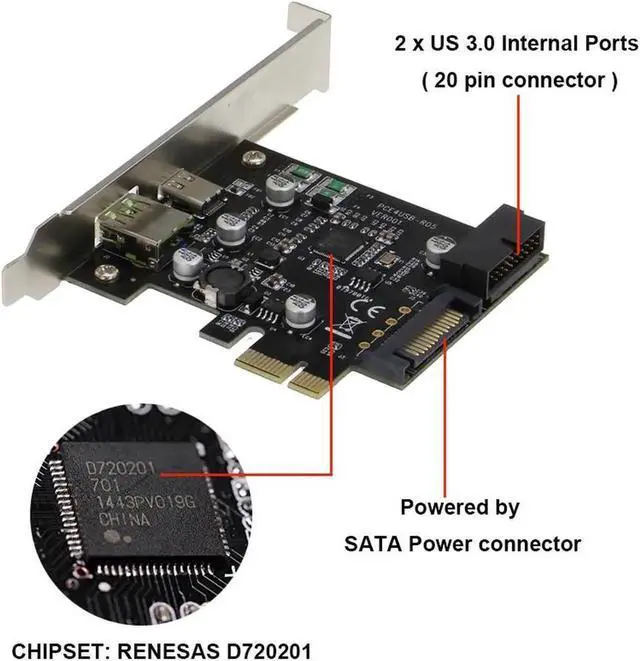

Chip set: NEC UPD720201

Maximum transfer speed: 5Gbps

USB power supply output: 5V, 2A (increased to 2.4A )

Built-In SATA power connector

Supports PCIe 1x, 4x, 8x, 16x Slot

Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux

Interface:

2 x US 3.0 Internal Ports (20 pin connector)

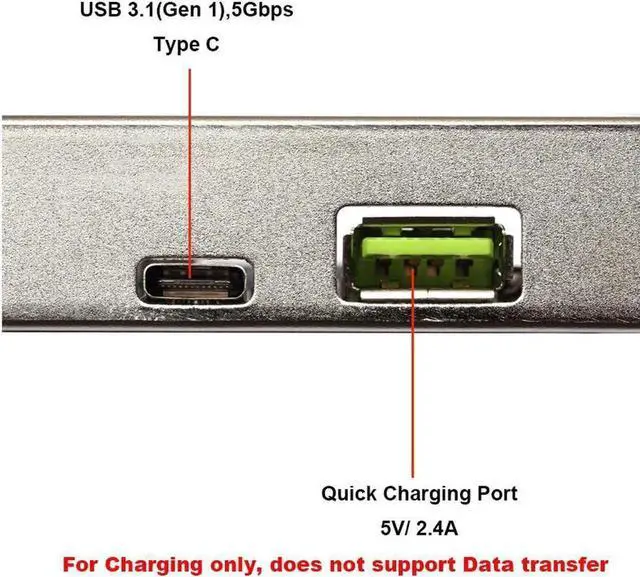

1 x USB 3.0 External Type C ports

1 x USB quick charging ports, supports up to 5V/ 2.4A max. (Only for chargning, no data transfer function and need connect SATA power )

2 x US 3.0 Internal Ports (20 pin connector) front panel for floppy bay

Packagen Content:

1 x PCIE USB 3.0 Type C / Charging adapter card

1 x Driver CD

Note:

For USB charging, you need connect the SATA power cable, get power for your PSU,

Charge port for charging only, no data transfer function
