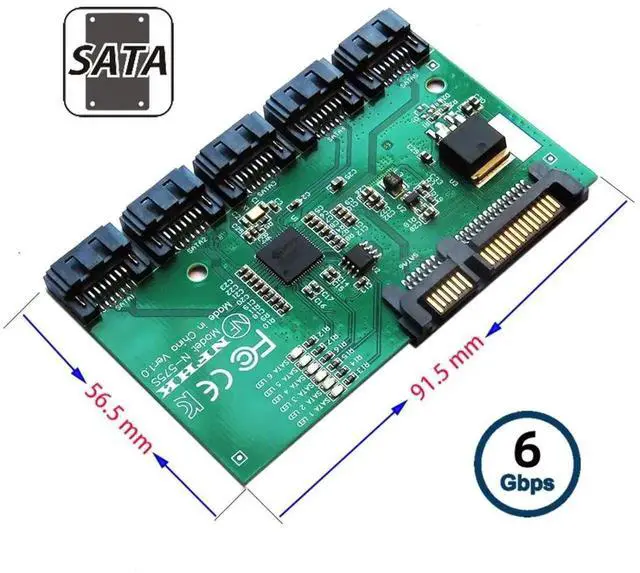

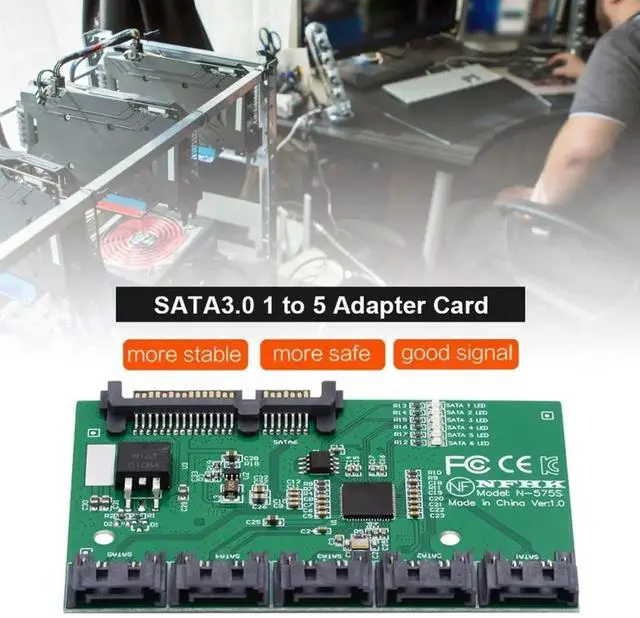

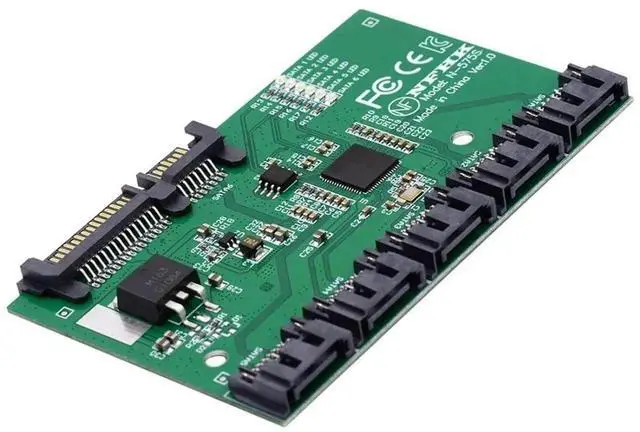

JAENFONG SATA 3.0 Splitter - 1 to 5 Ports Adapter, HUB Converter, PM Multiplier, Port Selector JMB575
Limited time offer, ends 01/09 By Smart core
- Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
- The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
- JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.

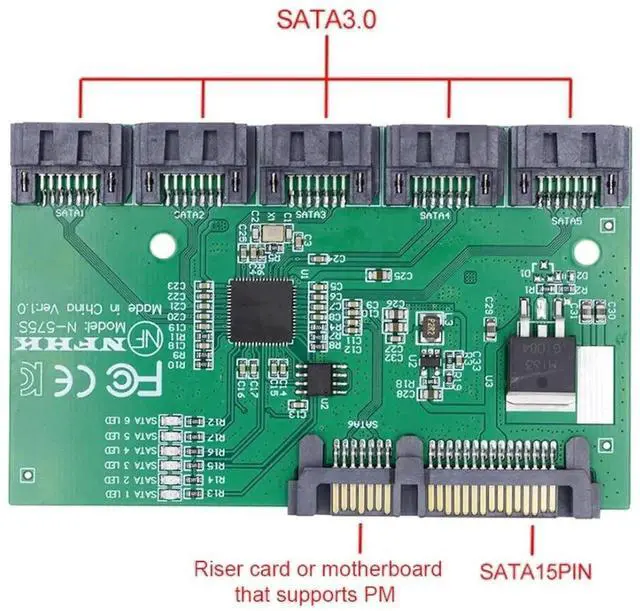

- Main control chip: JMB575.Interface: 5 * SATA3.0 interface.Applicable slot: SATA port with PM function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

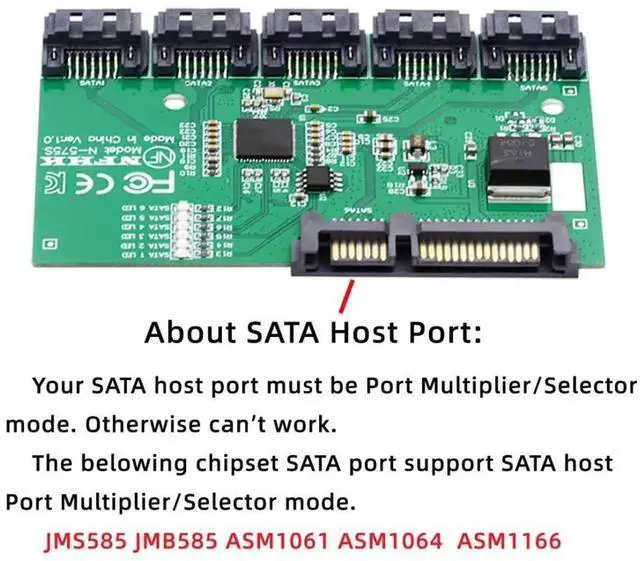

Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
Key Features: Comply with Serial ATA Port Multi Spec. Revision 1.2, Comply with Serial ATA Port Select Spec. Revision 1.0, Support 5 port SATA 6Gbps interface, Supports BIST and loopback mode, Support command-based and FIS-based switching, Support PM aware and non-PM aware host,
Main control chip: JMB575.Interface: 5 * SATA3.0 interface.Applicable slot: SATA port with PM function.
