JAENFONG PCIe 4X to 6 SATA Expansion Card, 6Gbps SATA3.0 Controller with LED Indicator, 6 SATA Cables, 15 PIN Power Cable for Win10/8/7/XP/Vista/Linux
Limited time offer, ends 10/18 By Smart core

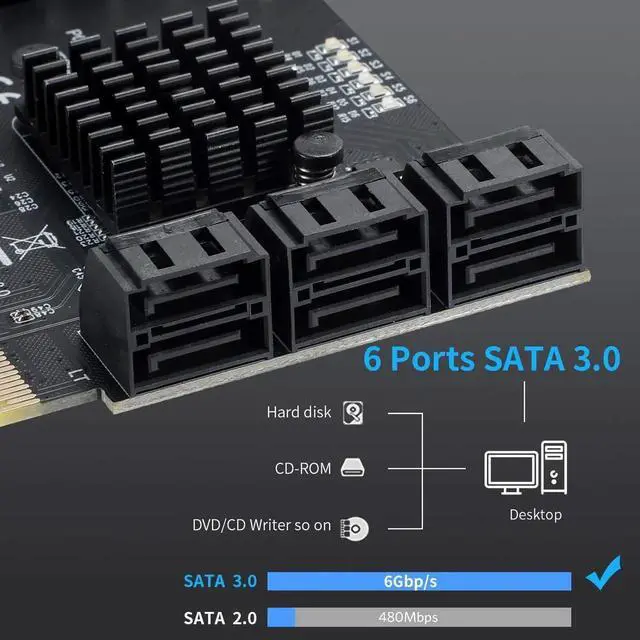

- 6-Port SATA3.0 : Expand 6 SATA III 6Gbps ports via motherboard PCI-Express X4 slot. You can setup storage pool or configure SOFTWARE RAID in Windows.(Note: Hardware RAID is not supported.)

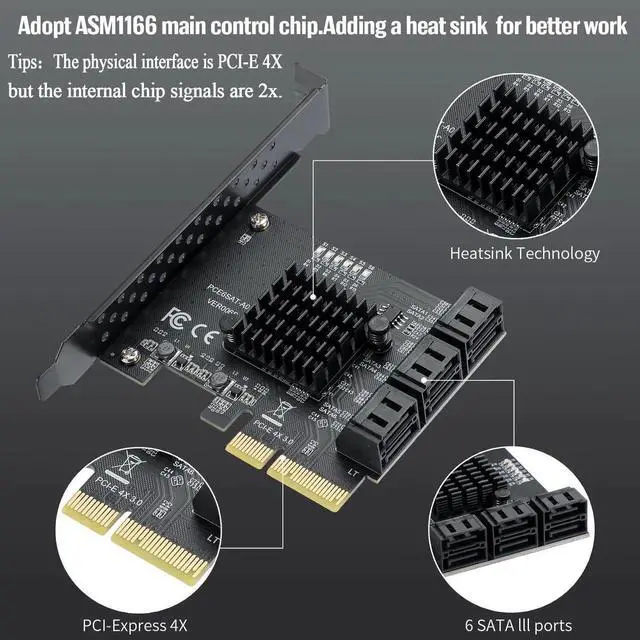

- Secure and Stable: PCIE SATA controller is based on ASMedia ASM1166 chip, supports PCIE 3.0, faster speed and wider compatibility. The chip signal is 2X, support switching based on port multiplication command.
- PCI-E GEN3 : The fastest speed of PCI-E 3.0 slot is 500-550 M/S, the fastest speed of PCI-E 2.0 slot is 380-450 M/S, and when connecting to PCI-E 1.0 slot, the speed is only 200-300 M/S. (Please consult with the motherboard manufacturer for the supported PCI-E version).

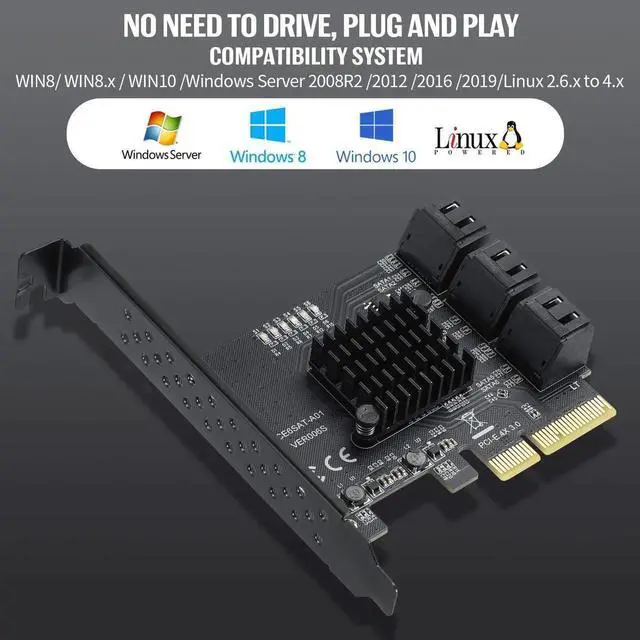

- Compatible slots and systems: PCI-E X4 interface, compatible with PCI-E 8X/16X slots. (Theoretical speed up to 8GB/S with PCI-E 4X bidirectional bandwidth). Support Windows 7/8/10/XP/2003/2008/Linux.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Expansion of 6 SATA 3.0 6G interface array cards through PCI-Express 4X GEN3 slot
Does not support hardware RAID mode: only software RAID
Features:
Compliant with PCI-Experss specification V3.0 and backward compatible PCI-Express 4x
Compliant with Serial ATA Specification 3.0
The chip is the X2 interface of PCI Express (the interface is 4X), compatible with PCI Express x4, x8 and x16 slots.
The supported communication rate is 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
Hot swap and hot swap.
Support native command queue (NCQ)
Support FIS switch based on port multiplier switch or command.
Compatible with SATA 6G, 3G and 1.5G hard drives.

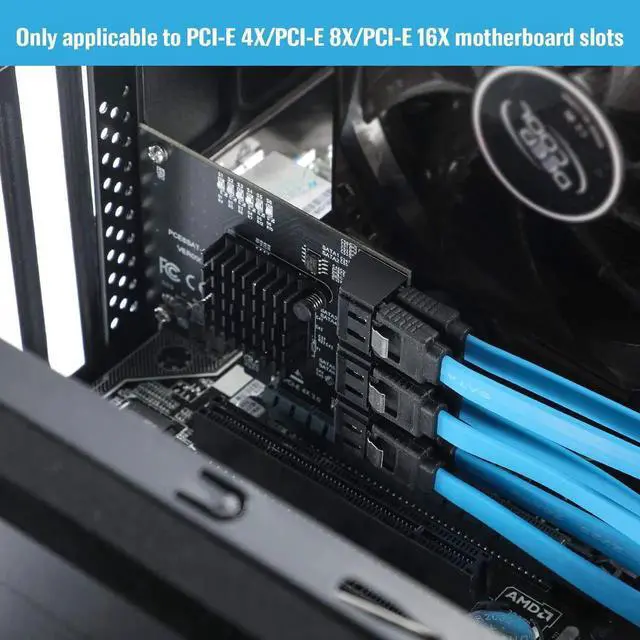

Can only be used in PCI Express x4, x8 and x16 slots
Additional Features

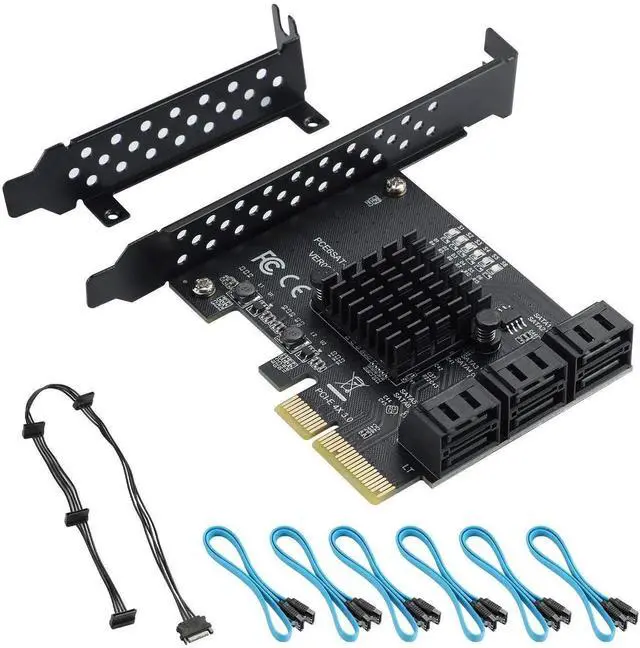

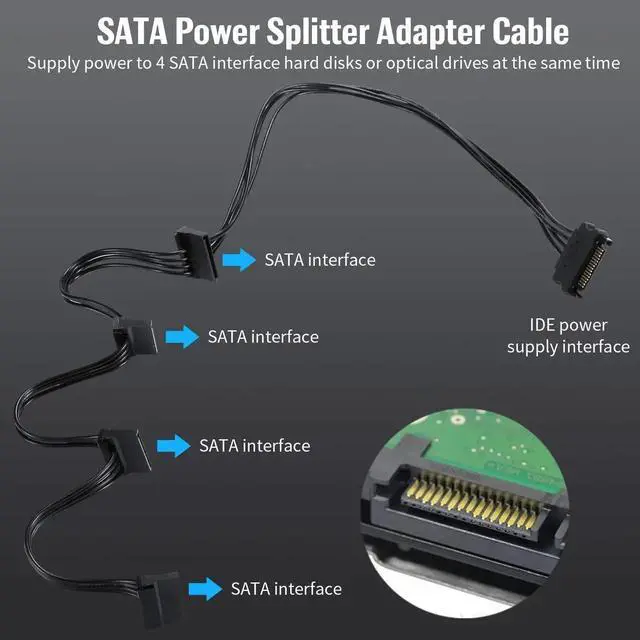

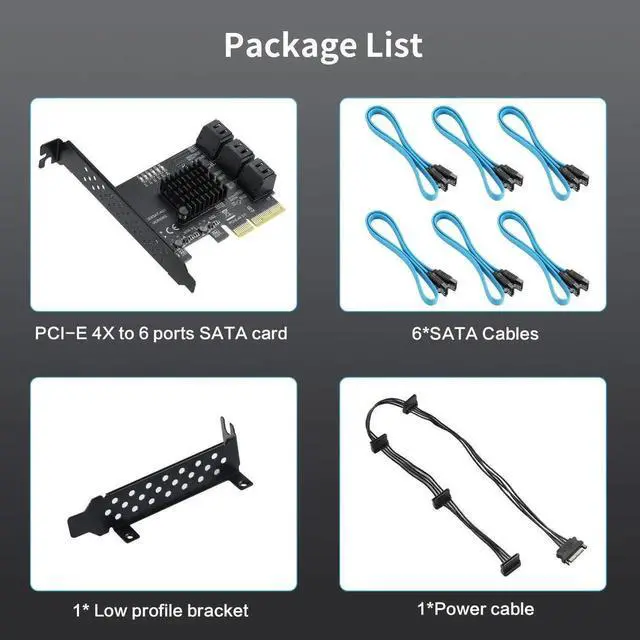

- Includes all necessary accessories: 6-port SATA expansion card, SATA 15PIN 1 to 4 power cable, 6 SATA cables, half-height bezel bracket. Any questions, please feel free to ask customer service.
